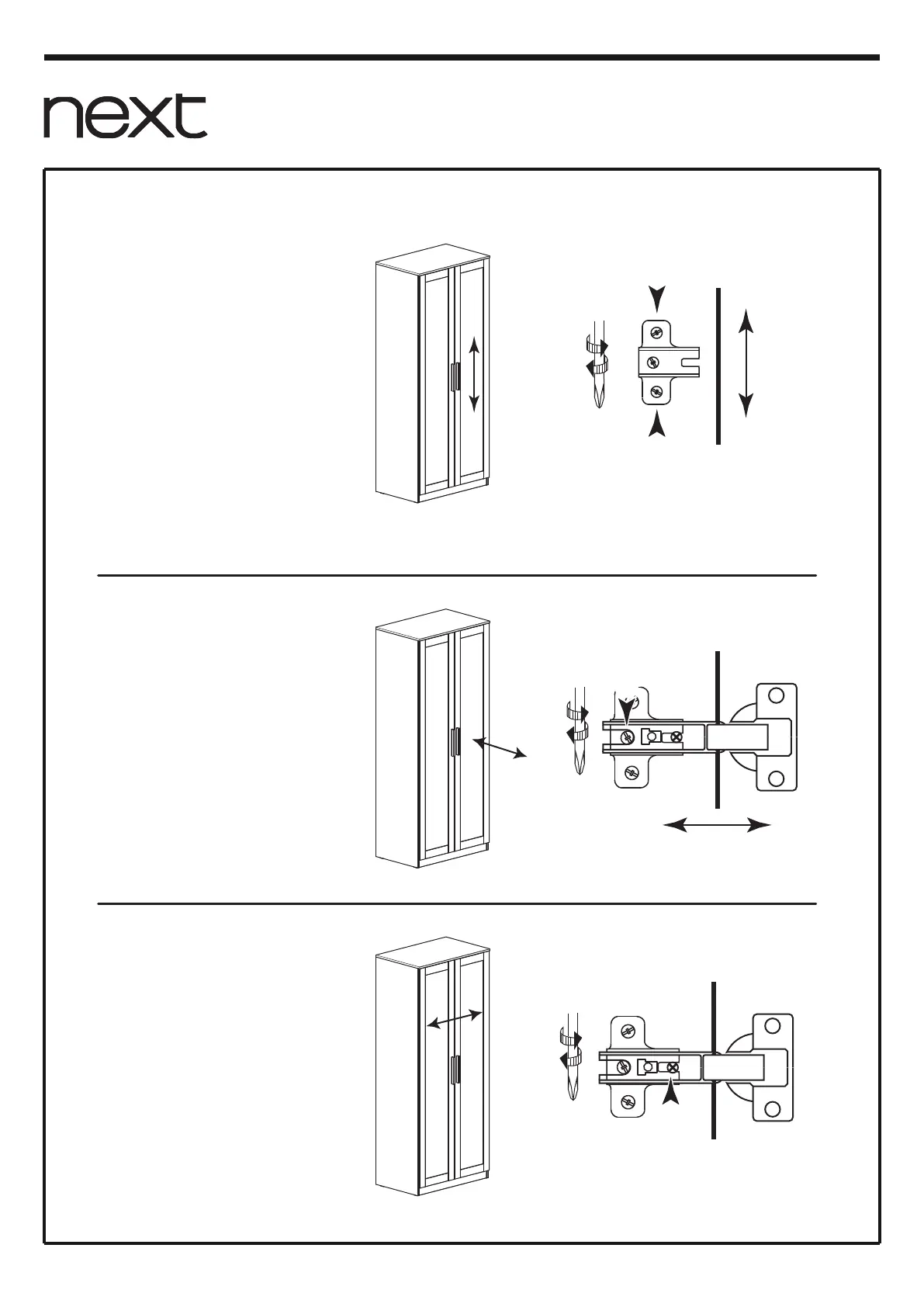

a: Height adjustment
Loosen screws 'A' on fixing
plates and move door up or
down as required.
Retighten screws 'A'.
b: Forward or
backwards
adjustment
Loosen screw 'B' on fixing
plate and move Door in or
out as required.
Retighten screw 'B'.
c: Sideways
adjustment
To move Door 'OUT' at
hinge position, slacken
screw 'C' .
To move Door 'IN' at hinge
position, tighten screw 'C'.
a:
b:
c:
C
B
A
A
HINGE ADJUSTMENT INSTRUCTIONS
