13

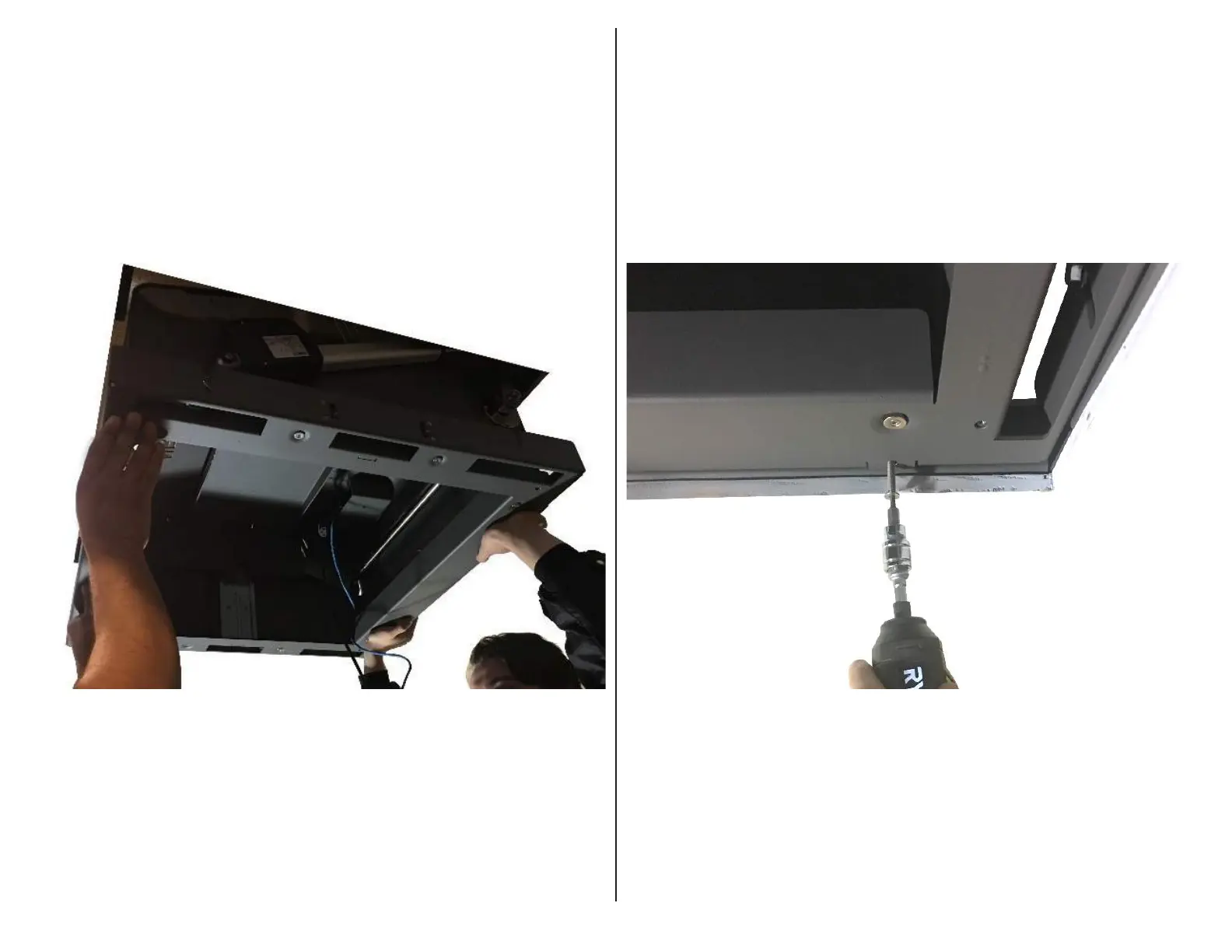

Step 4: Orient the E-550 Lift Mechanism so the front faces the directon you
wish to project, then lift it up to snap it into the Installation Bracket.
Important Note: Ensure the Snap Feature is fully engaged before
completely letting go of the mechanism.
Step 5: Partially fasten the (4) Fine Adjustment Screws using the provided
1/8” T-Handle.
