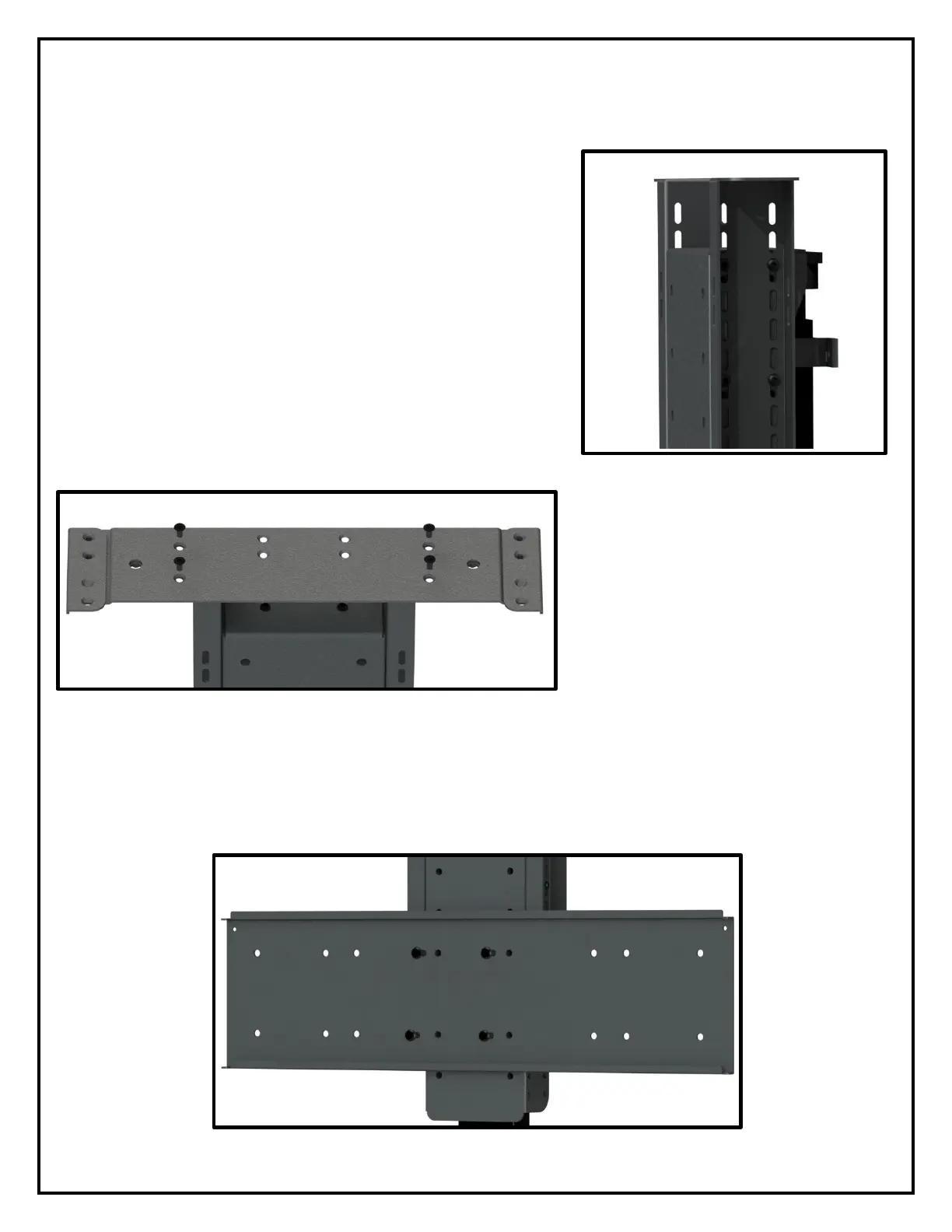

Step 18: Attach the Top Plate to the top

of the Top Support Brackets using the

(4) 6 x 12 FHMS

Step 19: Attach the Screen Back Plate to the Screen Support using the (4) 3/8 – 16 x3/4” BHMS.

Tip:

You can generally measure from the Top of the TV to the center of the VESA, this is the distance the

center of the Screen Back Plate will need to be from the Top Support Brackets.

Step 16: Measure the Interior Height of the Cabinet and subtract 29.625” from it. This will be the distance

you will need to attach the Top Support Brackets above the Screen Support.

Step 17: Attach both Top Support Brackets to the sides of the

Screen Support using (8) 6 x 12mm BHMS, (4) per side.
