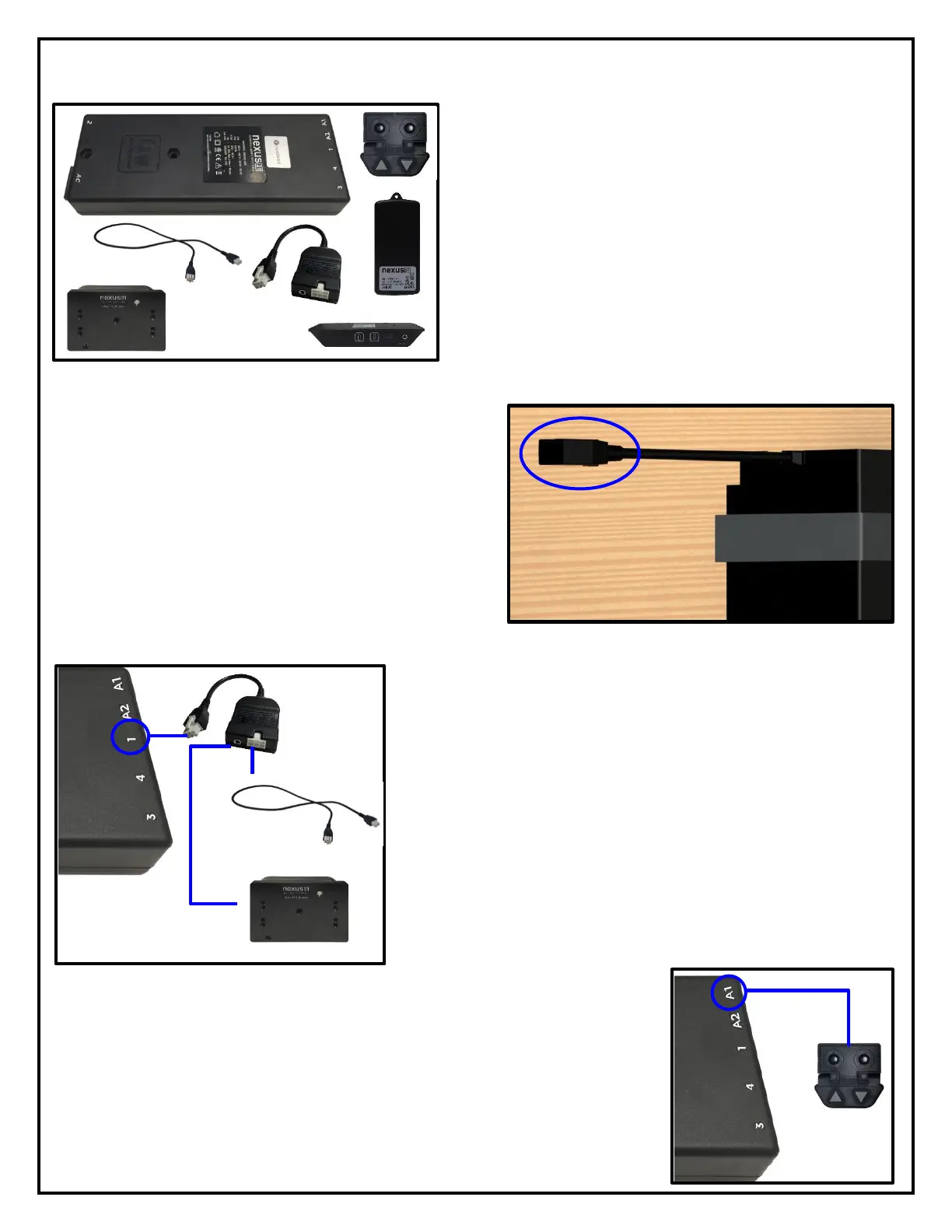

Connecting the Lift

For these steps you will need the following parts:

• Control Box

• Power Cord

• Wired Backup Switch

• Interface Cable

• Swivel Mechanism

• CSI Control Kit (If IR was ordered)

• RF Control Kit (If RF was ordered)

• (2) #10 x 1-¾” FHWS

• (4) #8 x ¾” FHWS

Step 7: Connect the 2.5m Motor Cable to the pigtail

at the top of the Lift Column.

Step 8: Connect the other end of the 2.5m Motor Cable to the

Interface Cable, connect the Interface Cable to Port 1 on the

Control Box, then connect the headphone jack from the Swivel

to the headphone port on the Interface Cable.

Note: The Swivel will not need to be attached at this point.

Step 9: Connect the Wired Backup Switch to Port A1 on the Control Box, if

you are using RF Controls. Connect the IR Receiver to Port A1 on the Control

Box, if you are using IR Controls.
