Nexus 21 L-50s - Actuation System Assembly and Installation

8

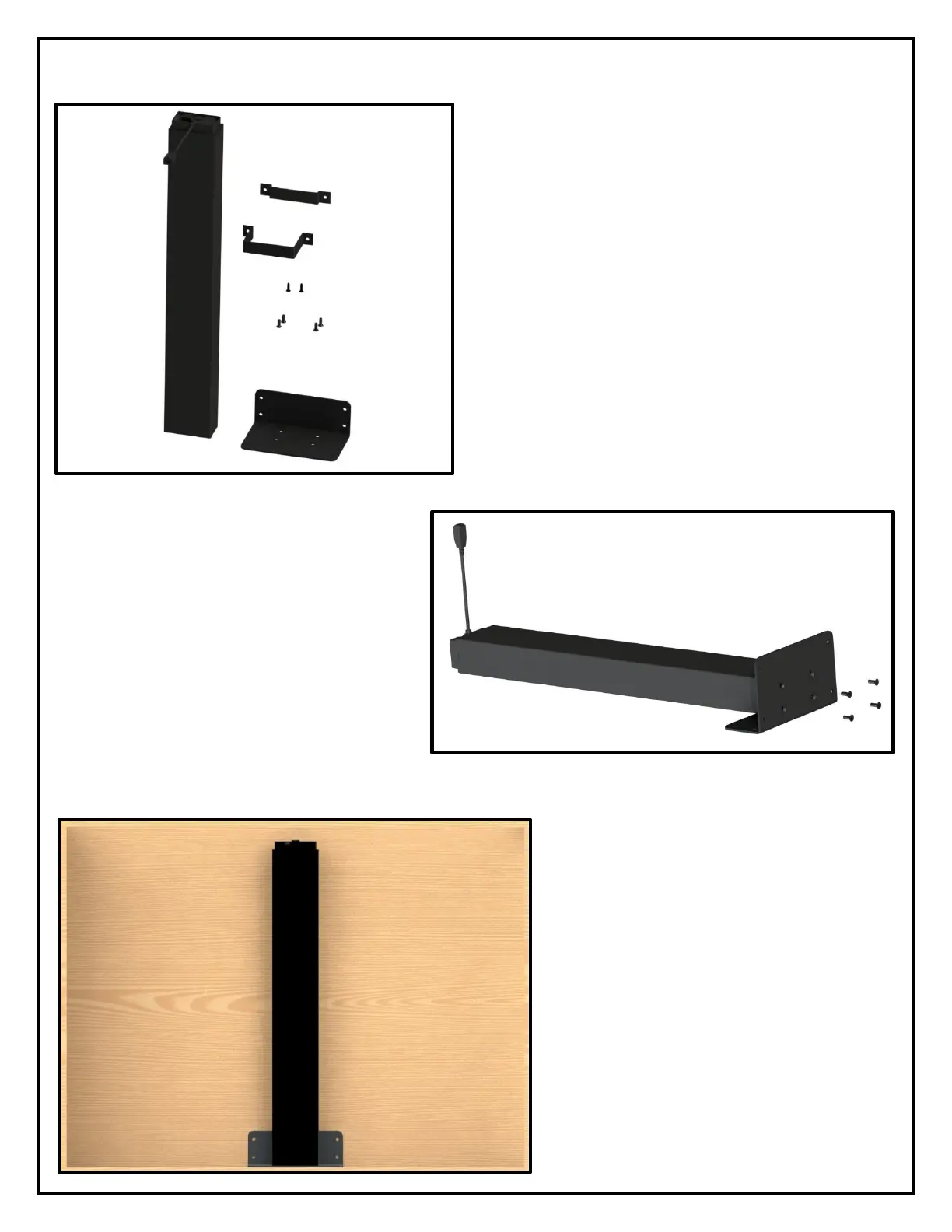

Assembling and Installing the Actuation System
For these steps you will need the following parts:
• Lift Column
• Base Mount
• Column Clamp Extension
• Column Clamp Base
• (4) 6 x16 FHMS
• (2) #10 x ¾” THWS
Step 1: Attach the Lift Column to the Base
Mount using the (4) 6 x 16 FHMS. Ensure
the pigtail for the Lift Column is facing
towards the front of the enclosure.
Step 2: Center the Lift Column and Base
Mount inside your enclosure.
