15 a . Disconnect the Screen Backplate from the Vertical Mounting Bars.
Note: You can disengage the spring-loaded latch on the Vertical Mounting Bars by pulling the straps at the bottom.

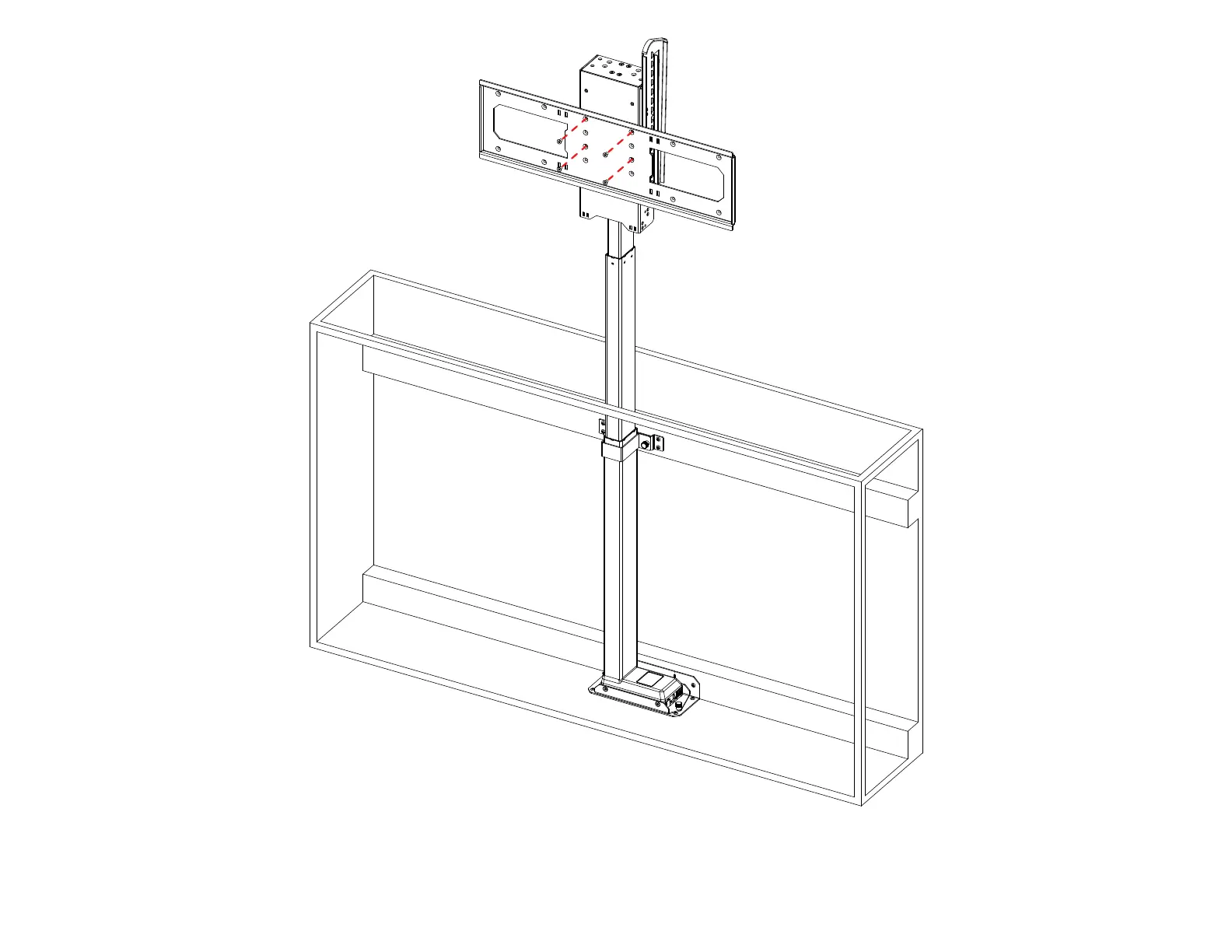

15 b . Attach the Screen Backplate to the holes on the Screen Supports that correspond with the marked holes on your TV Mounting Template using (4) M6 x 12 FHMS.
