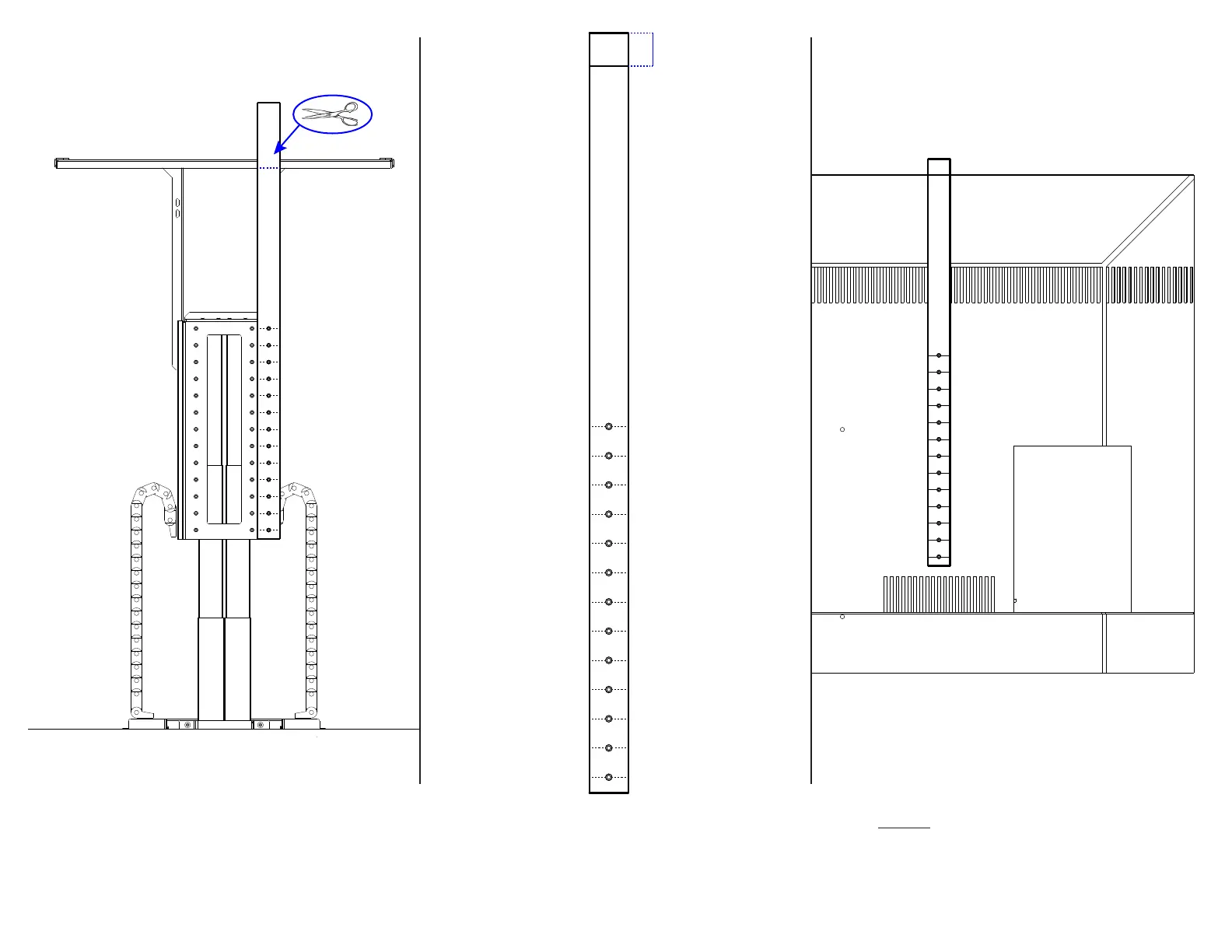

20a. Raise your lift, align the template with Screen Support Holes, then fold or cut the template to be flush with the bottom of the Lid Plate.
20b. Measure 1” from the new top of the Template and draw a line. This line indicates the position for where the top of the TV will go.
20c. Align the line you just drew with the top of the TV.
31
1”
