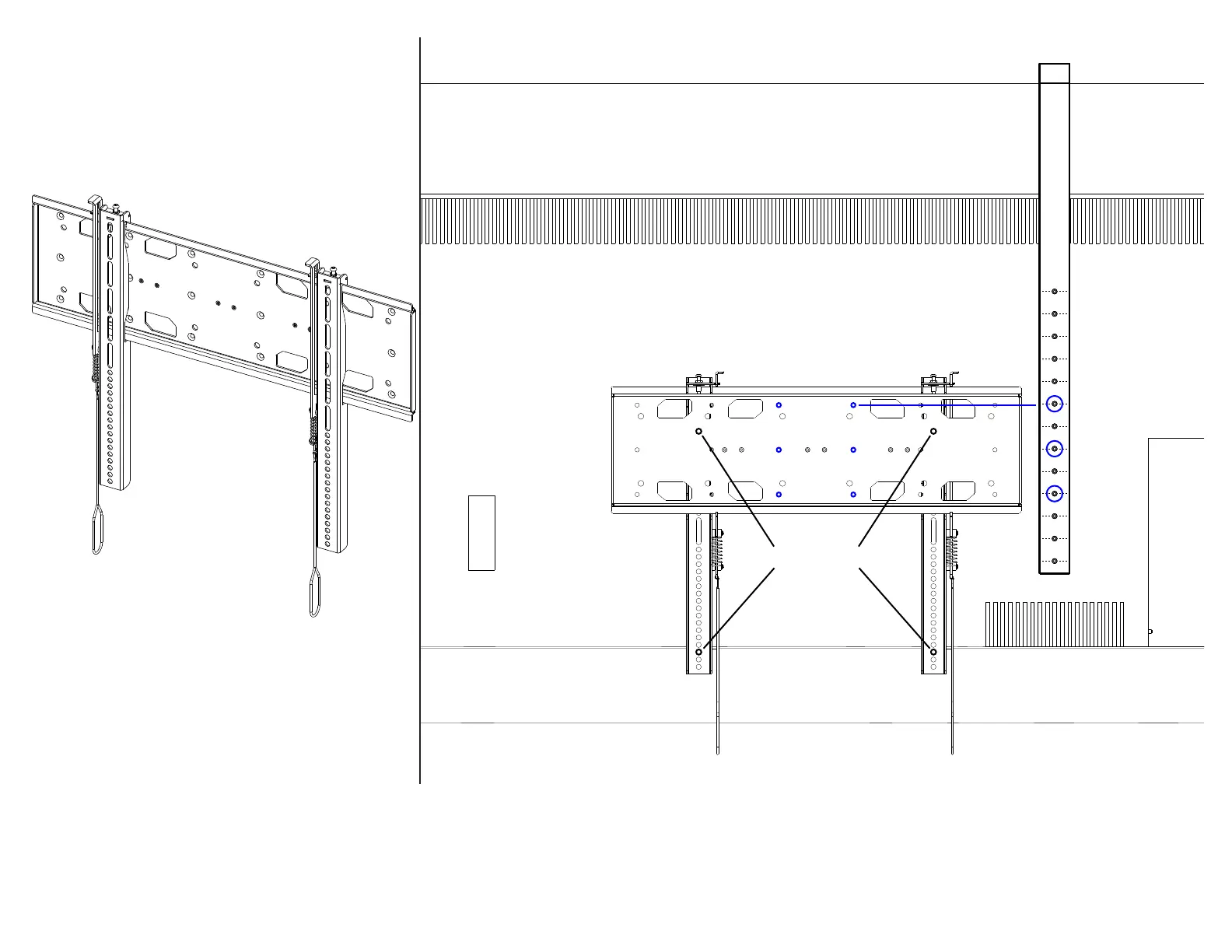

21a. Attach Vertical Bars to Screen Backplate, ensure the spring-loaded latch on each Vertical Bar is engaged with the Screen Back Plate.
21b. Place the Vertical Bars and Screen Backplate on the back of the TV, and position the Vertical Bars over the VESA Holes.
21c. Adjust the vertical position of them both until the (6) smaller holes of the Screen Backplate, line up with the lines on the Template and the Vertical
Mounting Bars align with the VESA Holes on your TV.
21d. Mark the holes for the Screen Backplate on the template and the holes for mount your TV on the Vertical Mounting Bars.
32
VESA Holes
