Nexus 21 L-85 - Page 33

x 6

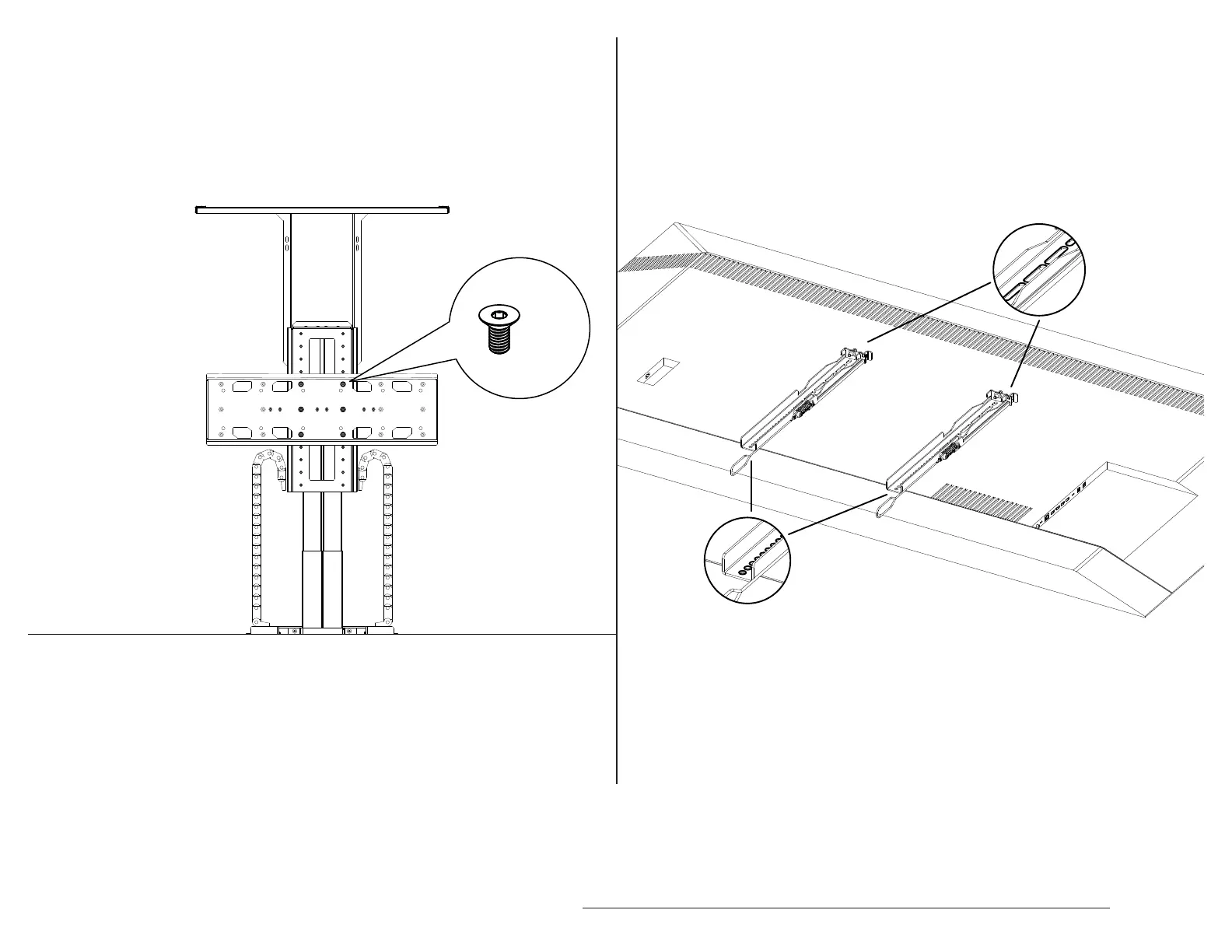

22a. Disconnect the Screen Back Plate from the Vertical Bars and attach it to the holes on the Screen Support that correspond with the marked holes on your
Template using (6) M6 x 12 FHMS Screws.
Note: You can disengage the spring-loaded latch on the Vertical Bars by pulling on the straps at the bottom or pushing the tab at the top.
22b. Attach the Vertical Mounting Bars to your TV using the marked holes. If using a Soundbar, follow the informational sheet included with it first.
33
Lower VESA Holes
Upper VESA Holes
