Nexus 4X4 - DMX and Network Configuration; DMX Linking; DMX Personalities; Ethernet Connections

Nexus™ 4x4 QRG EN
4
DMX Linking
The Nexus™ 4x4 works in Master/Slave mode or with a DMX
controller using its DMX ports
. A DMX Primer is available from
www.chauvetprofessional.com.

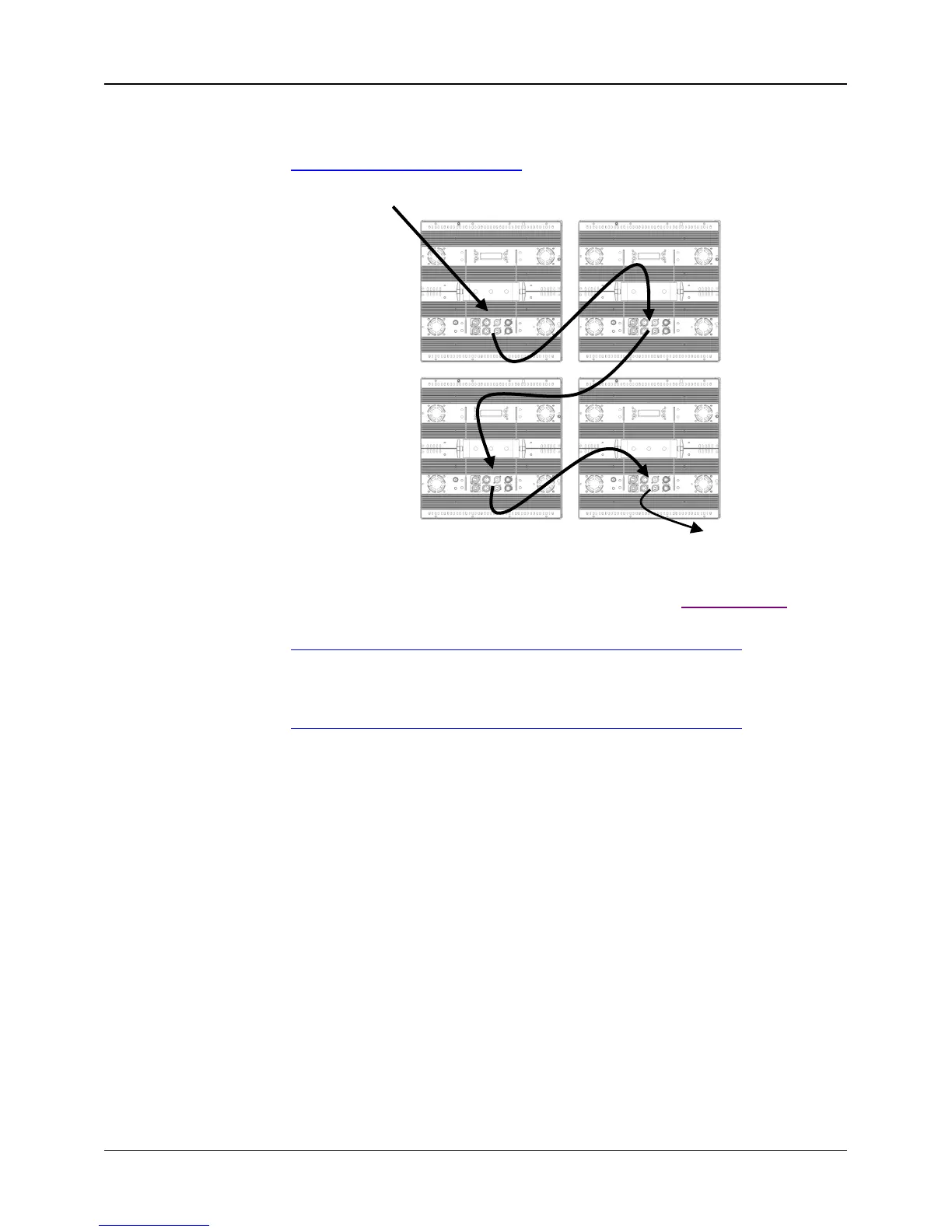

DMX Linking
Diagram
DMX
Personalities
The Nexus™ 4x4 has 5 DMX personalities: 3-, 5-, 9-, 48-,
and 53-channel. For more information, see the DMX Values
in this
QRG, or the User Manual on the CHAUVET® website at
http://www.chauvetlighting.com/product-manuals-literature/.
Master/Slave
Mode
The Nexus™ 4x4 works in Master/Slave mode. For more
information, see the User Manual on the CHAUVET® website at
http://www.chauvetlighting.com/product-manuals-literature/.
Ethernet
Connections
Ethernet connections link Nexus™ 4x4 panels to routers and each other
through their Neutrik®
etherCON® ports. Ethernet connections are for
running TCP/IP-based control system, such as Kling-Net and Art-Net™
.
All Neutrik® etherCON® ports can be either input or output ports
, and
panels can be linked to each other, but the start
of each chain of panels
must be a router port.
DMX Controller or Master
Other
DMX Products
