Fixed Wiring
Disconnect from the mains supply.

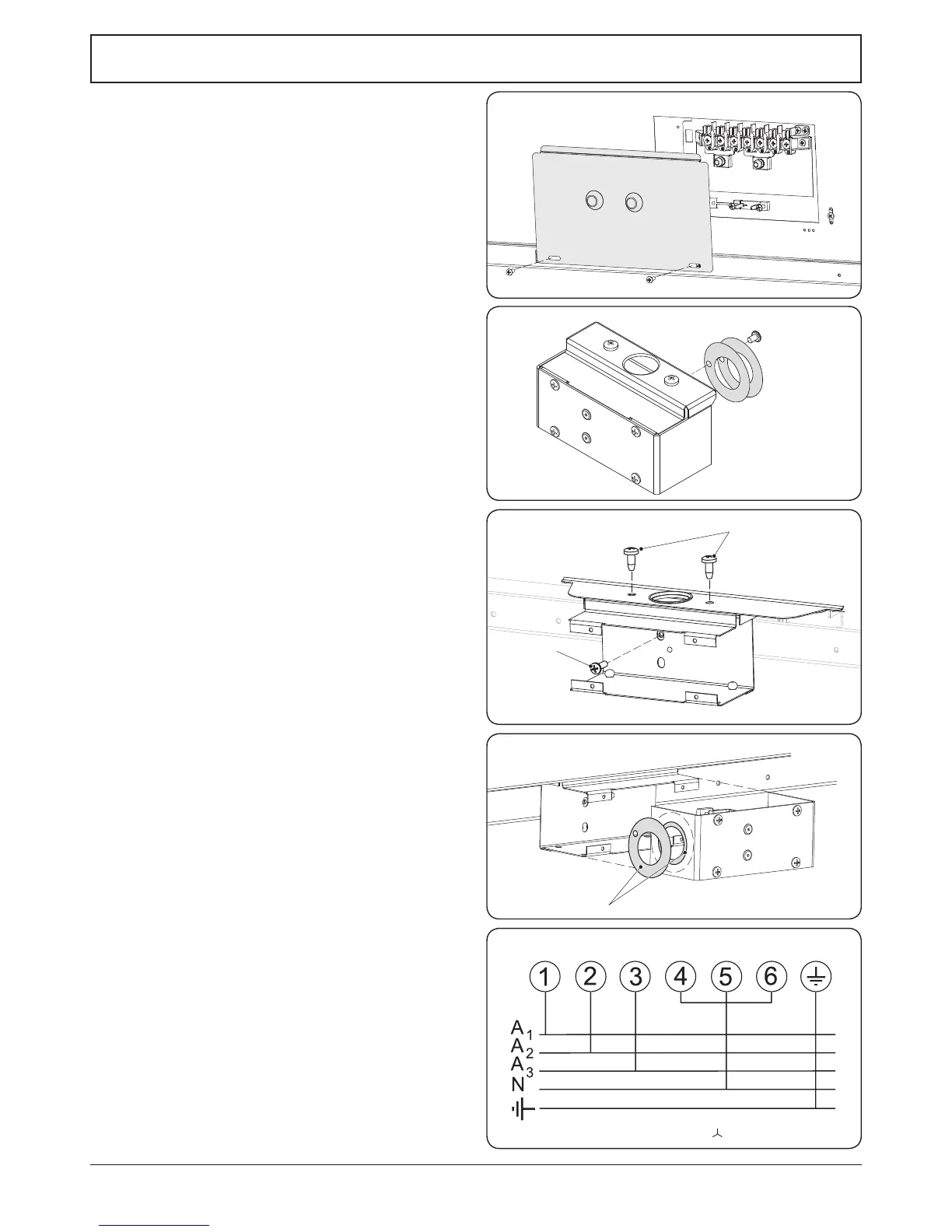

For connection to xed wiring, i.e. exible conduit, Remove
the electrical terminal cover on the back panel (Fig. 7.3).
Remove the M4 screw securing the reducer plates to the
conduit box (Fig. 7.4). Fit the conduit box to the cooker using
the two M5 screw ttings located at the top of the box and
the M4 screw (Fig. 7.5).
The conduit box cover is reversible. Fit the reducer plates, if
required (Fig. 7.6). Feed the cable through the conduit box
and secure in place with the cable clamp.
Connect the mains cable to the correct terminals for your
electrical supply type (Fig. 7.7). Check that the links are
correctly tted and that the terminal screws are tight.
Fit the cover to the conduit box.
