2. Cooker Overview
The 90 dual fuel cooker (Fig. 2.1) has the following features:
A. 4 hotplate burners and a Wok Burner
B. Control Panel
C. Glide-out Grill™ with 4 position Trivet
D. Multifunction Oven
E. Fan Oven
Hotplate Burners
The labels by each of the control knobs indicates which area
that knob controls.
Each burner has a Flame Supervision Device (FSD) that
prevents the ow of gas if the ame goes out.
When a hotplate control knob is pressed in, sparks will be
made at every burner – this is normal. Do not attempt to
disassemble or clean around any burner while another
burner is on, otherwise an electric shock could result.
To light a burner, push in and turn the associated control
knob to the high position as indicated by the large ame
symbol (
H
), (Fig. 2.2).

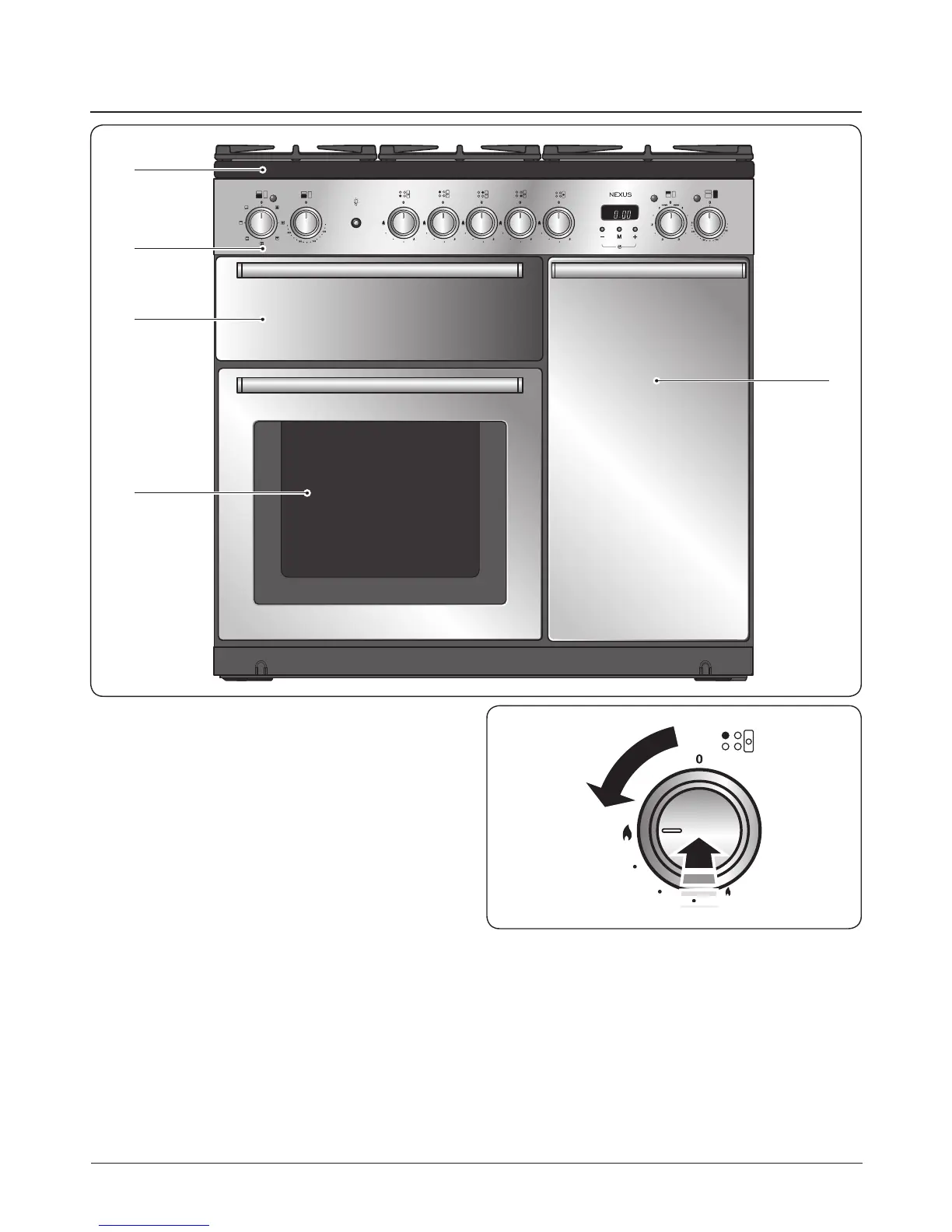

Fig. 2.1
Fig. 2.2
