A3
B2
B3
B4
B5
B6
B7
C
D1
D3
D4
F1
F2
G1
H
H
H
G2
B1
I
I
r
bk
A4
A2
J
P028728
6
P6
5
P5
4
P4
7
P7
8 P8
2
P2
1
P1
3 P3
B2
P095199
1
2
P2
P1
P095199
1
2
P2
P1
P095199
1
2
P2
P1
D2
P062362
I
b
b
b
b
b
b
b
b
b
b
b
b
b
br
br
br
br
br
br
v
v
v
v
v
or
or
y
b
y
bk
b
bk
r
r
bk
r
v
v
br
br
b
w
r
y
y
w
bk
or
w
bk
b
v
w
br
bk
r
bk
v
v
br
bk
r
r
y
b
r
b
bk
br
b
P095199
1
2
P2
P1
P0
1
2
P2
P1
P062977
1
2
P2
P1
A1
r
r
v
v
v
br
br
g
br
br
r
r
v v
b
y
y
y

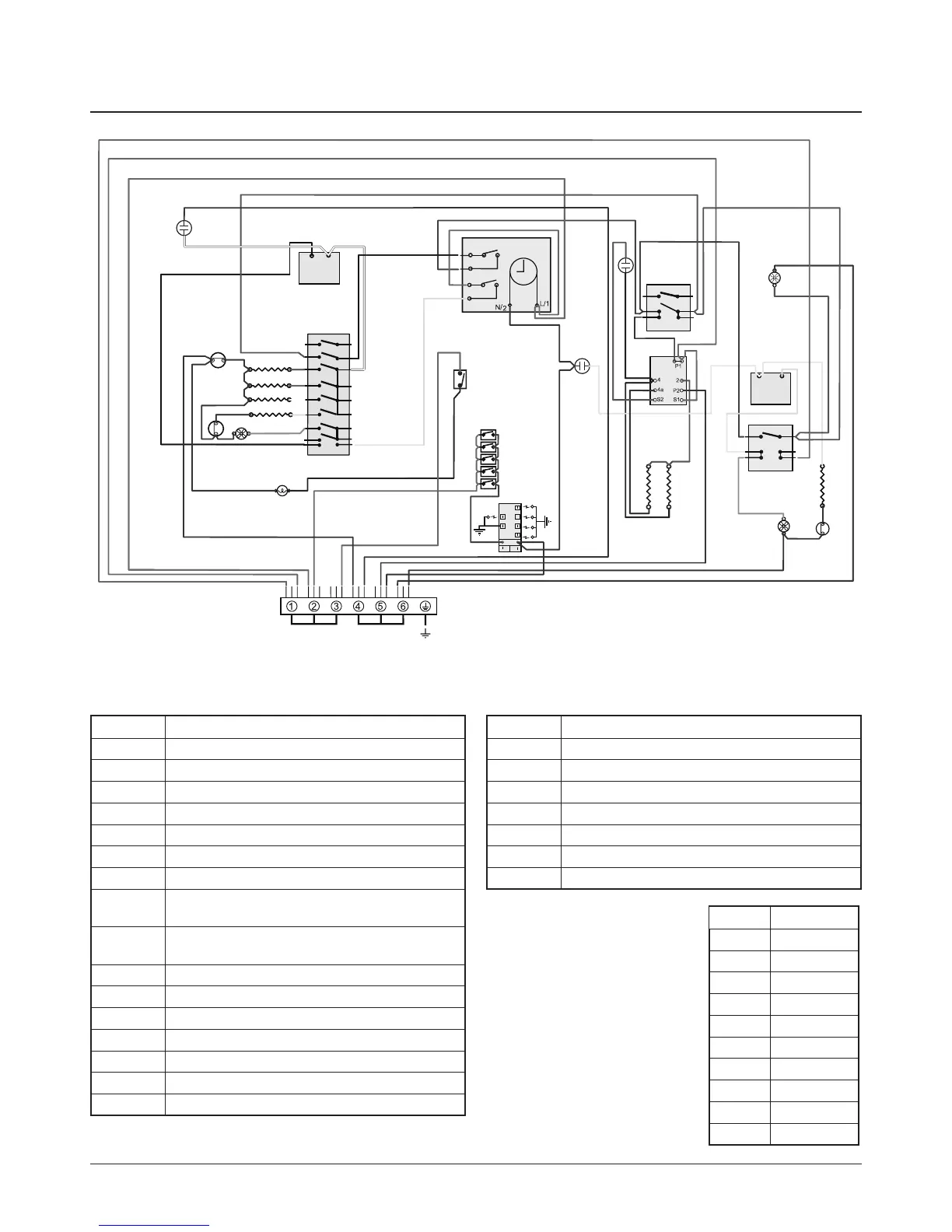

Key Description
A1 Grill front switch
A2 Grill energy regulator
A3 Grill element left-hand side
A4 Grill element right-hand side
B1 Left-hand multi-function oven thermostat
B2 Left-hand multi-function oven control
B3 Left-hand multi-function oven base element
B4 Left-hand multi-function oven top element
(outer pair)
B5 Left-hand multi-function oven browning element
(inner pair)
B6 Left-hand multi-function oven fan element
B7 Left-hand multi-function oven fan
C Clock
D1 Right-hand fan oven thermostat
D2
Right-hand fan oven control
D3 Right-hand fan oven element
D4 Right-hand oven fan
Key Description
F1 Ignition switches
F2 Ignition spark generator
H1 Oven light switch
H2 Oven light
I Thermal cut-out
J Neon
K Cooling Fan
Key
The connections shown in the circuit diagram are for single-phase. The ratings are for 230 V 50 Hz.
Code Colour
b Blue
br Brown
bk Black
or Orange
r Red
v Violet
w White
y Yellow
g/y Green/Yellow
gr Grey
To Next Page
Loading...
