NEXUS 200 / 300 EAZY UPGRADE KIT INSTALLATION

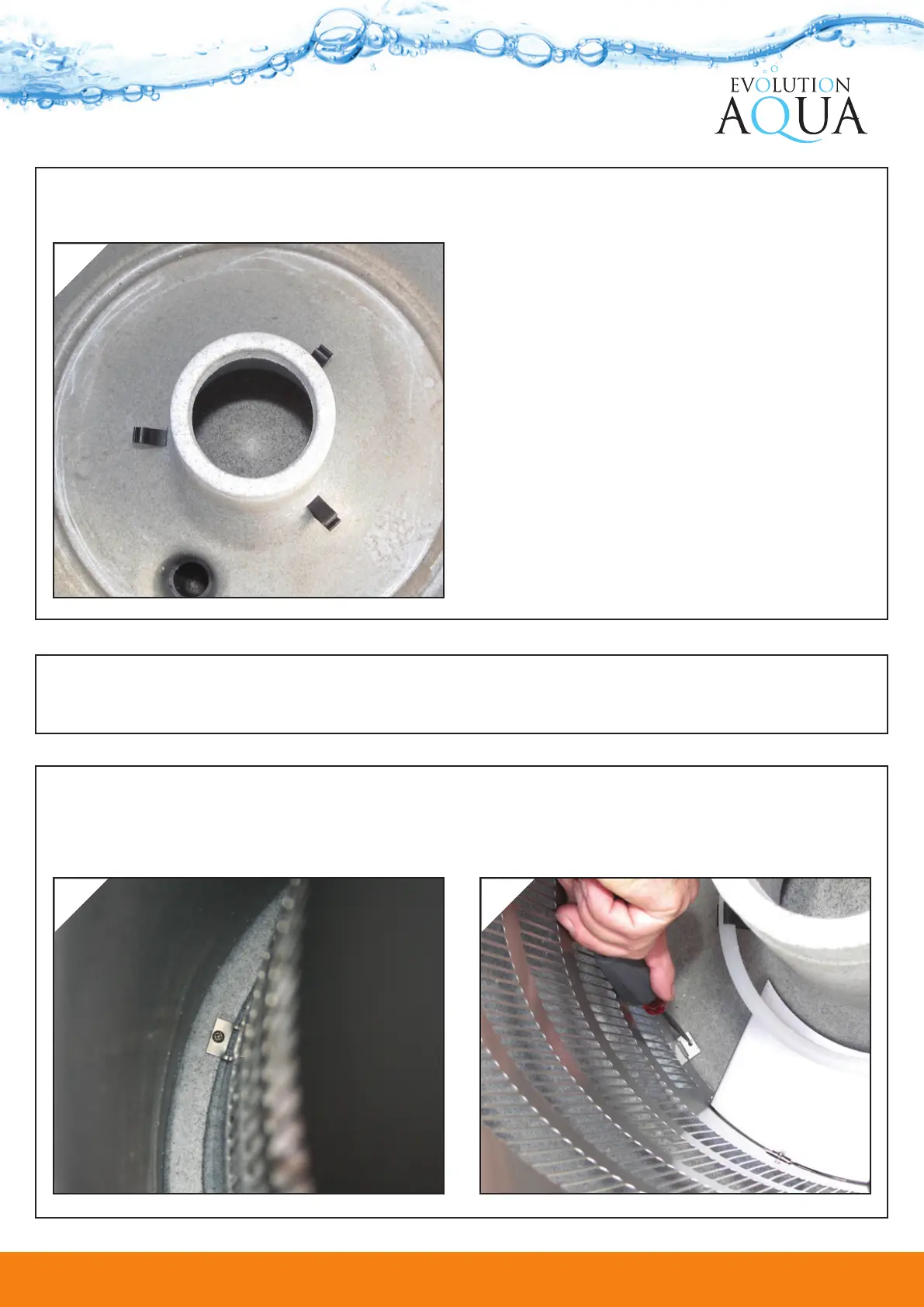

6 Mark the position of the clips. Remove the ring, and screw the clips into the positions that you
marked using the self tapping screws provided. (Figure 6)
7 Place the Eazy Main Body into position with the plate over the waste outlet, install the air ring and
connect up the air line.
8 Screw the Eazy Main Body into position by using the self tapping screws provided through the tabs
on the bottom of the Eazy. N.B. On a Nexus 200 the tabs are on the outside (Fig. 7), on the 300 the
tabs are on the inside (Fig.8). Please ensure that when screwing the 200 Eazy Main Body down,
that the steel work is positioned in the groove, making sure that the K1 media cannot escape.
FIG.
6
FIG.
8
300
FIG.
7
200
