WSI-box English
7

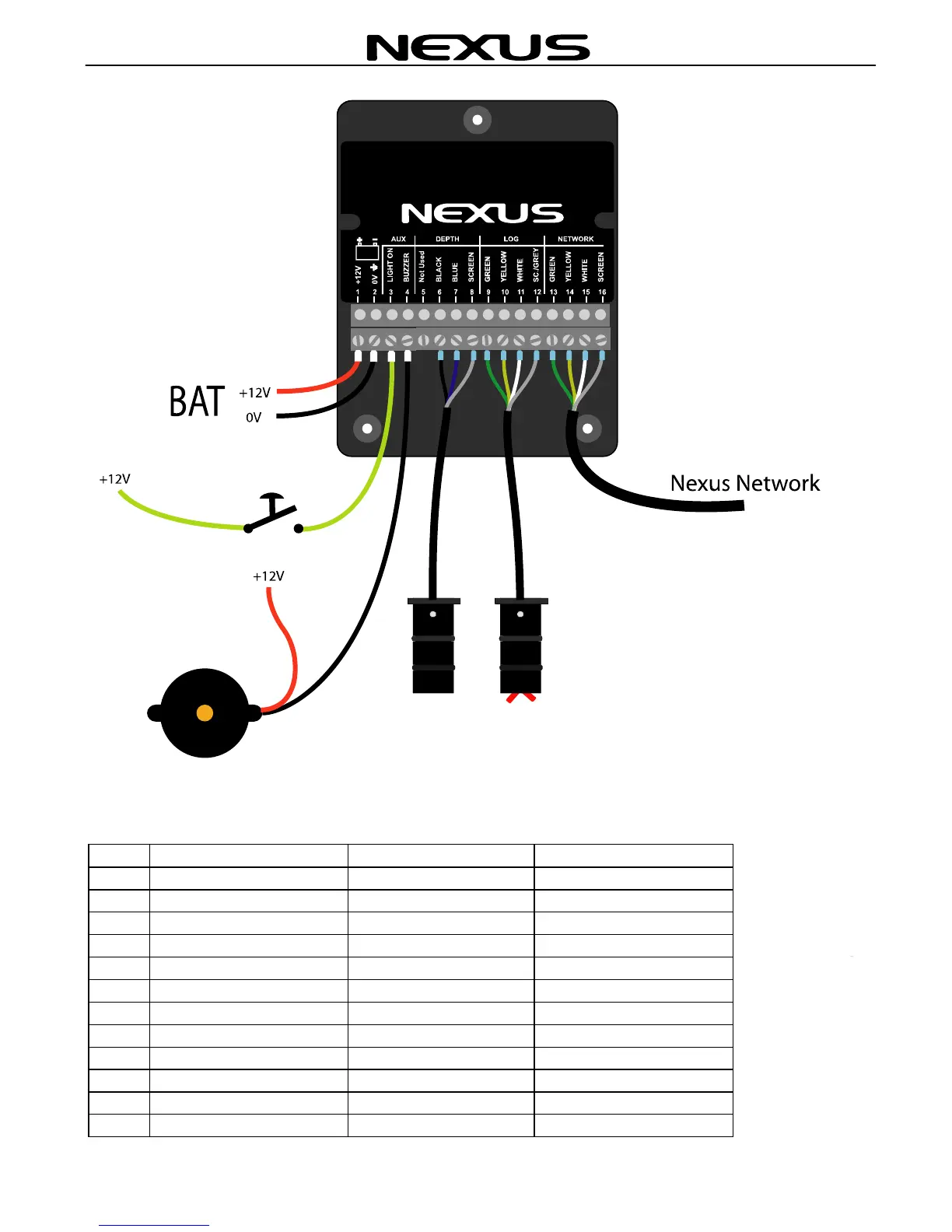

Cross reference list for Log and depth transducer and Tri-ducer or
Combi transducers
No. Function Sep log and depth Tri-ducer or Combi
1 +12V Battery Red Red
2 0V battery Black Black
3 Light control Users choice Users choice
4 Buzzer Black Black
5 Not used Not used Not used
6 Depth A Black Black
7 Depth B Blue Blue
8 Depth Screen Screen Screen
9 +12V to Log Tx Green Red
10 Log signal Yellow Green
11 Temp. sensor White White
12 0V to Log Tx Screen Brown
