INTRODUCTION
The 4 Port HDMI Switch allows access to four HDMI devices, output with one HDMI display. The 4 Port HDMI
Switch allows four HDMI
devices to be switched easily into one HDMI
supported or compatible monitor or
projector. Simply connect your HDTV display to the Switcher’s display output. The 4 Port HDMI Switch can also
be placed at the end of a long HDMI cable to regenerate the HDMI signal.
FEATURES
• Switches easily between four HDMI sources
• Supports 480p, 720p, 1080i, 1080p resolution
• PC Support: VGA, SVGA, XGA, SXGA, UXGA (1600 x 1200), and WQXGA
• Supports highest HDMI single link video resolution (V1.3 Deep Color)
• Supports highest HDMI digital audio signal
• HDMI to HDMI cables are used to connect the inputs and switch output
• Inputs can be toggled with the IR remote control
• Supports audio format
• Compressed digital audio (Dolby TrueHD, DTS-HD, DTS, etc)
• CD quality audio always available, Basic Audio required Multi-channel, 16-bit or more,
32/44.1/48/88.2/96/176.4/192kHz rate
Includes:
• 4 Port HDMI Switch
• 5V DC Power Adapter
• IR Remote Control
• User Manual

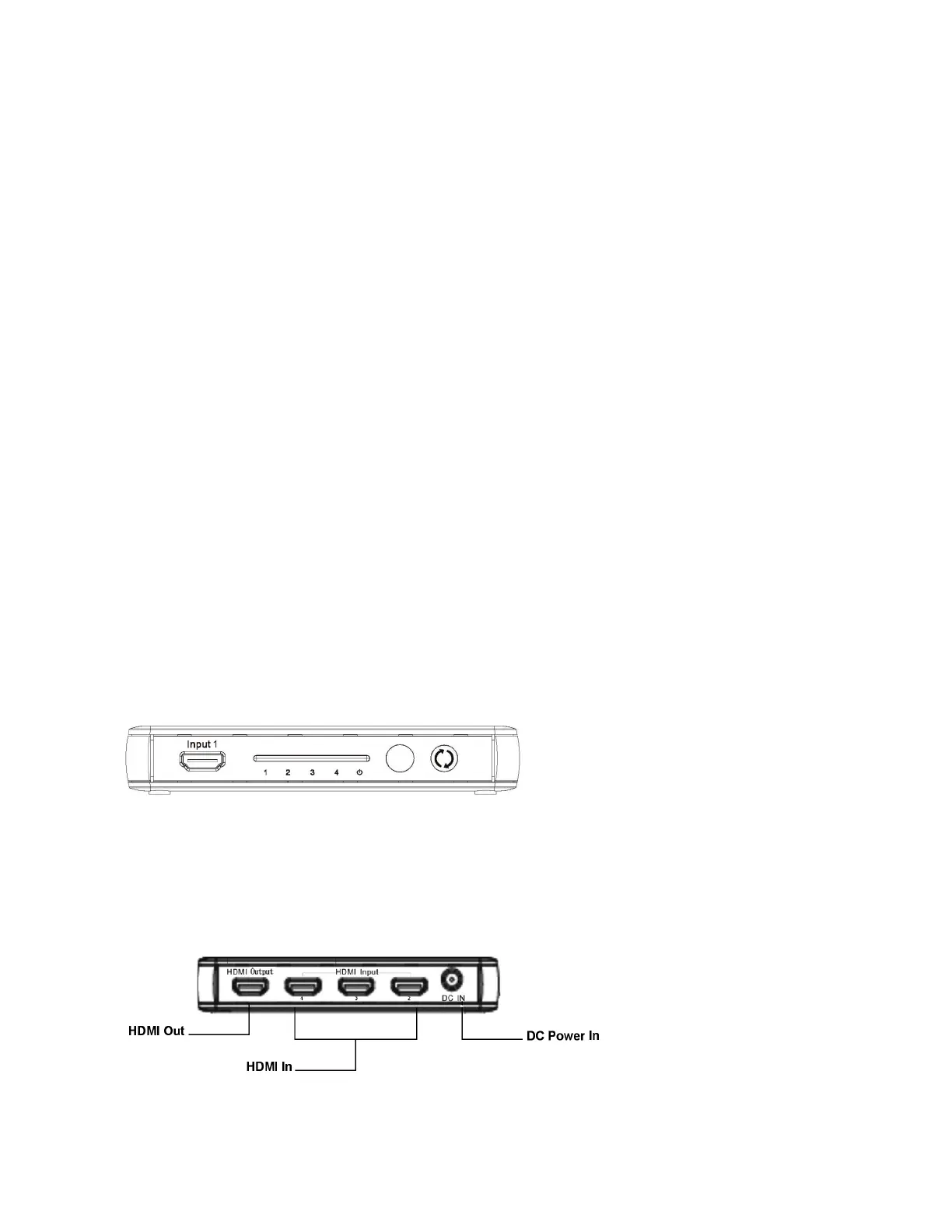

PANEL DESCRIPTIONS
Front Panel
1. Input Switch
2. IR Eye
3. LED Power Indicator
4. LED Indicator — Input 1 LED
5. LED Indicator — Input 2 LED
6. LED Indicator — Input 3 LED
7. LED Indicator — Input 4 LED
8. HDMI Input 1 port
Back Panel
1. Power DC Jack
2. HDMI Input 2 port
3. HDMI Input 3 port
4. HDMI Input 4
5. HDMI Output port
To Next Page
