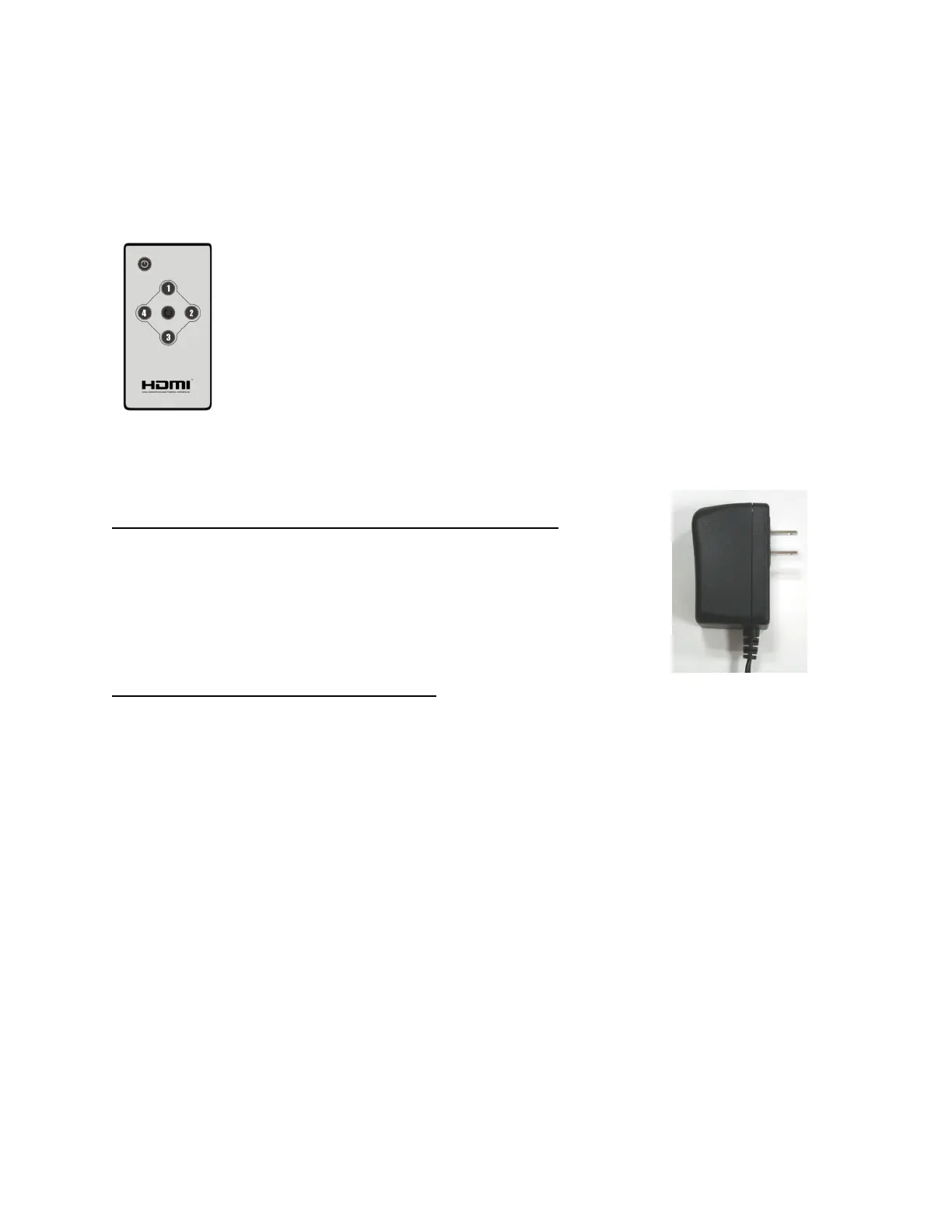

Remote Control
Power button to toggle device on/off
4 digit keypad (1 –2 –3 –4 will be used to toggle between the inputs)
Switching button for the input port selection in sequencing
Remote takes a 3v Lithium button battery.
Replacement battery # CR2025 can be found at your local The Source by Circuit City store.
INSTALLATION:
How to connect the 4 Port HDMI Switch to your devices
1. Plug the 5V DC power supply into the 4 Port HDMI Switch and an AC wall outlet.
2. Connect the cables from the HDMI sources into one of the HDMI inputs.
3. Connect a cable from the 4 Port HDMI Switch output to the input on your
monitor/HDTV.
How to Control the 4 Port HDMI Switch
1. There is no power switch on the device itself. Power is automatically turned on when plugged into a wall outlet.
2. Press the switching button on the front panel to toggle among the 4 inputs. Or use the IR remote control to
directly set an input.
SPECIFICATIONS:
Video Amplifier Bandwidth……………………………….………….…………….2.25Gbps
Input Video Signal……………………………………….………….…..……….0.5 volts p-p
Input Connector Type……………………………………….…………HDMI Type A Female
Output Connector Type………………………………………………..HDMI Type A Female
Power Source………………………………………..……….…..…. .100-240VAC 50/60 Hz
Power Adapter Output………………………………………….…….……..….…..5V DC 2A
Weight………………………………………………………….…..……………………...98g
Dimensions…………………………………………… 142mm (W) x68mm (D) x24mm (H)
