nfortec DRACO X - Page 12

LEO LIGHTS3
FAN1 FAN2 FAN3 FAN4 FAN5 FAN6
LEO LIGHTS2
LEO LIGHTS1
LEO LIGHTS4 LEO LIGHTS5 LEO LIGHTS6
5V GNO
12V
POWER-IN
GNO
KEY
GNO
O-IN
GNO
P-IN
PC-IN
G

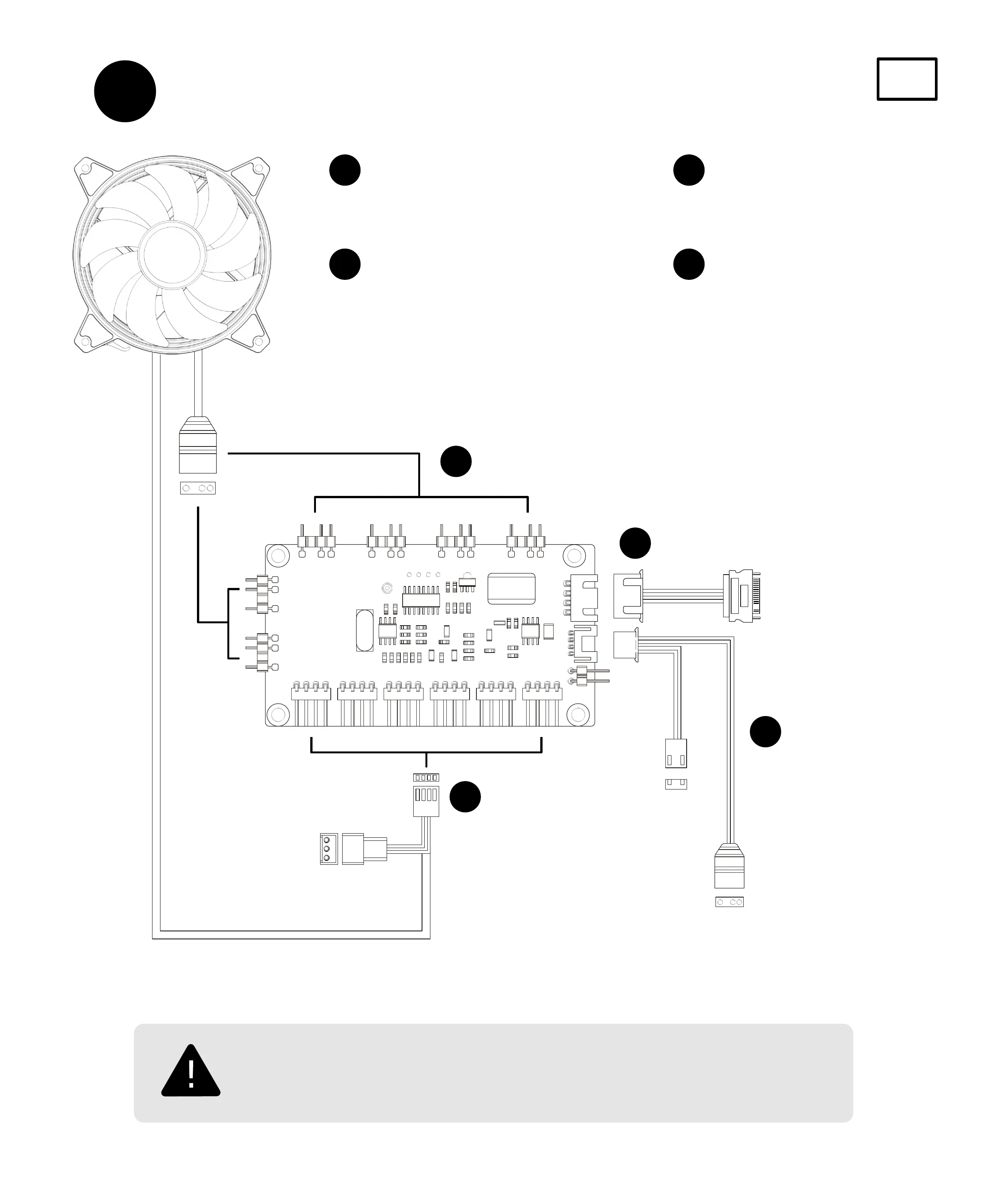

Connector to
M/B header
Aura Addressable Header(ASUS)
JRAINBOW Header(MSI)
5v 3pin A-RGB
Connector
4pin (PWM) connector
and 5v 3pin A-RGB
syncing for motherboard
3/4pin power
connector
SATA connector to
PSU power
A
C
B
D
A
D
C
B
Controller has 4pin power outputs(PWM),but its also compatible with
3pin. Connect it skipping the first starting from left side
EN
