NI 9213 - Thermocouple Connections

Table 1. Signal Descriptions
Signal Description
COM Common reference connection
NC No connection
TC+ Positive thermocouple connection
TC- Negative thermocouple connection

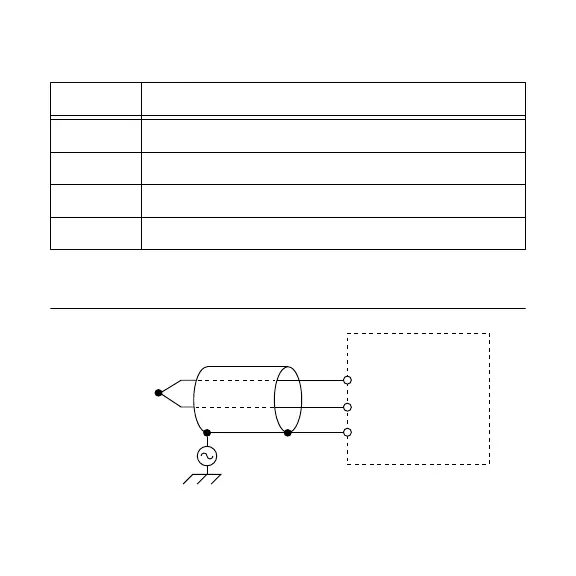

Thermocouple Connections
Thermocouple
TC–
COM
TC+
Shield
NI 9213
V
reference
