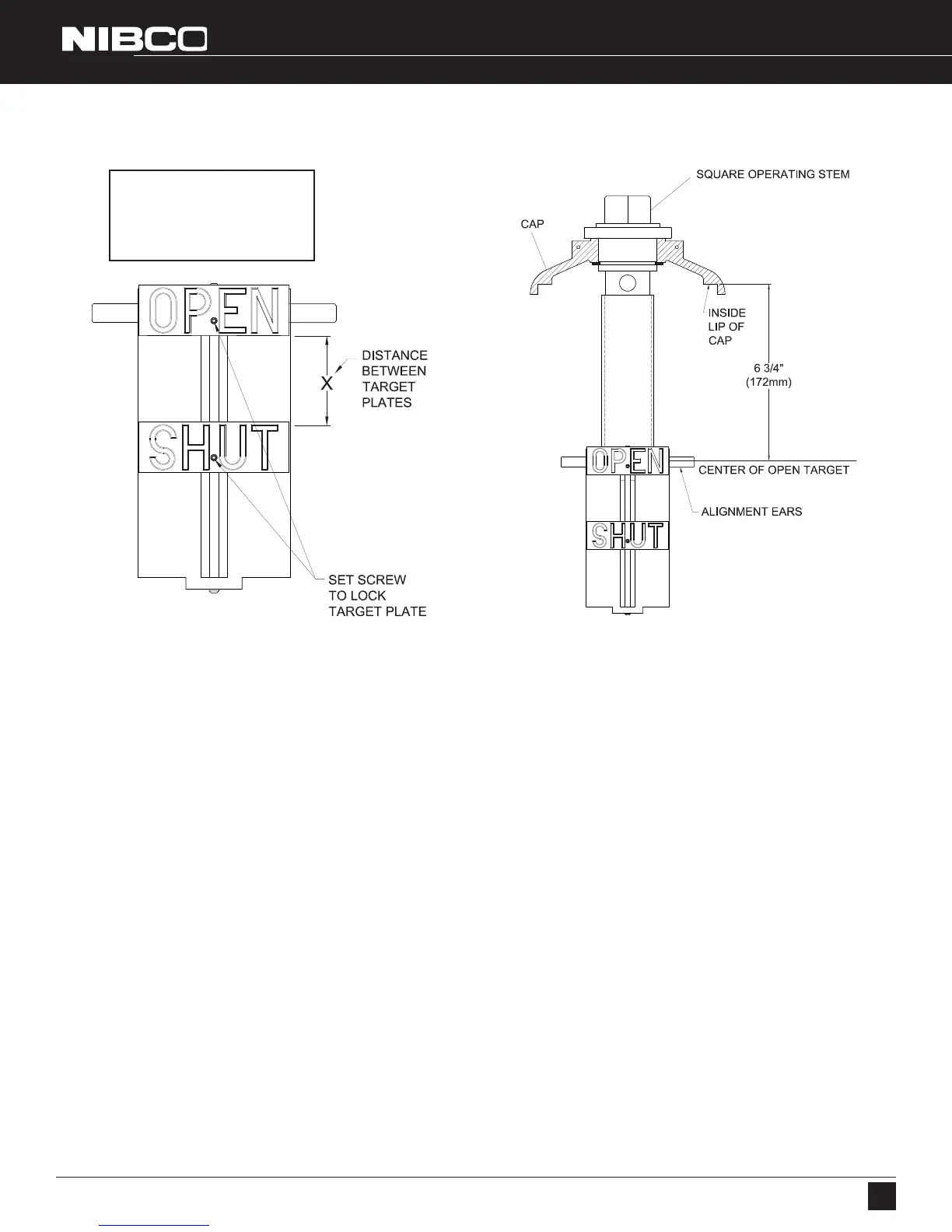

POSITIONING OF OPEN TARGET PLATES FOR VIEW WINDOW
STANDARD TARGET
LOCATION FOR “LEFT-HAND”
(COUNTER-CLOCKWISE)
OPENING VALVES
Fig. 6 Fig. 7
6. Positioning of Targets in View Window
6.1 Rotate Square Operating Stem (5) positioning the center of the OPEN Target Plate (8) until it is located 6¾” from the inside lip
of Cap (2). See Fig. 7.
6.2 Verify that the valve is in full OPEN position.
6.3 Reinstall the Cap (2) & Target assembly into the Upper Body (1) making sure both alignment ears on bronze Leading Boogie
(7) straddle the guides cast on the inside of the Upper Body. See Fig. 2.
6.4 Reinstall 2 T-Head Bolts (3) in Cap and secure with 2 Nuts (4).
6.5 Check to assure that the OPEN Target Plate (8) is centered in both sides of the view window.
To Next Page
