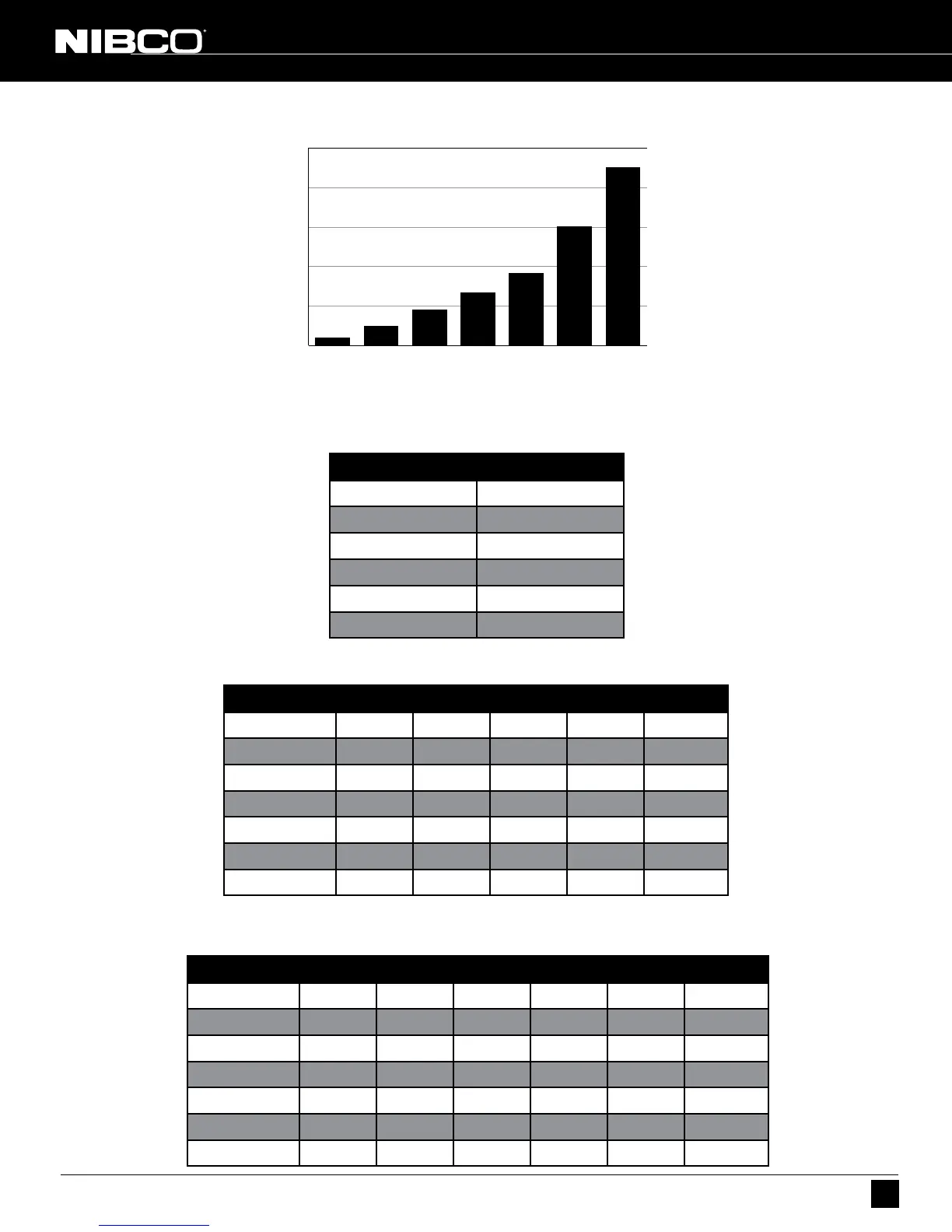

BUNDLE QUANTITY
Tubing Size 20’ Lengths
3/8” 50
1/2” 50
5/8” N/A
3/4” 25
1” 15
1-1/4” 10
COILS / PALLET
Tubing Size 100’ 250’ 300’ 500’ 1000’
1/4” 40 30 N/A 15 N/A
3/8” 28 15 N/A 10 8
1/2” 20 10 N/A 8 6
5/8” 20 8 10 7 3
3/4” 13 9 N/A 7 4
1” 20 5 6 3 N/A
1-1/4” 8 4 N/A N/A N/A
WEIGHT PER UNIT
Tubing Size 20’ 100’ 250’ 300’ 500’ 1000’
1/4” 0.60 3.00 7.50 9.00 15.00 30.00
3/8” 0.90 4.50 11.25 13.50 22.50 45.00
1/2” 1.15 5.75 14.38 17.25 28.75 57.50
5/8” 1.60 8.00 20.00 24.00 40.00 80.00
3/4” 2.10 10.50 26.25 31.50 52.50 105.00
1” 3.50 17.50 43.75 52.50 87.50 175.00
1-1/4” 5.50 27.50 68.75 82.50 137.50 275.00
FLUID CAPACITY OF NIBCO
®
PEX PIPE
0
1
2
3
4
5
1-1/413/45/81/23/81/4
Gallons per 100 Ft.
0.500
0.921
1.340
3.025
Nominal Size
0.207
4.520
1.837
