4.3 - Transmitter to be used for programming
procedures
• Procedures that can only be completed with a Nice “ERA P” or “ERA W”
transmitter having the PRG and ESC keys, or with transmitters equipped
with a STOP key.
• All the programming procedures must be completed by selecting a single
channel on the transmitter.
• The programming procedure must be performed exclusively with a transmitter
memorised in “Mode I” (see procedure A.1 - B.1 - D.1).
• If the transmitter used for programming controls multiple automation units, you
must select the “unit” corresponding to the automation you are programming before
sending a command during a procedure.
4.4 - Positions in which the awnings, blind or
shutter stops automatically
The electronic system that controls the awning/shutter movement at all times can
automatically stop the movement when the awnings, blind or shutter reaches a cer-

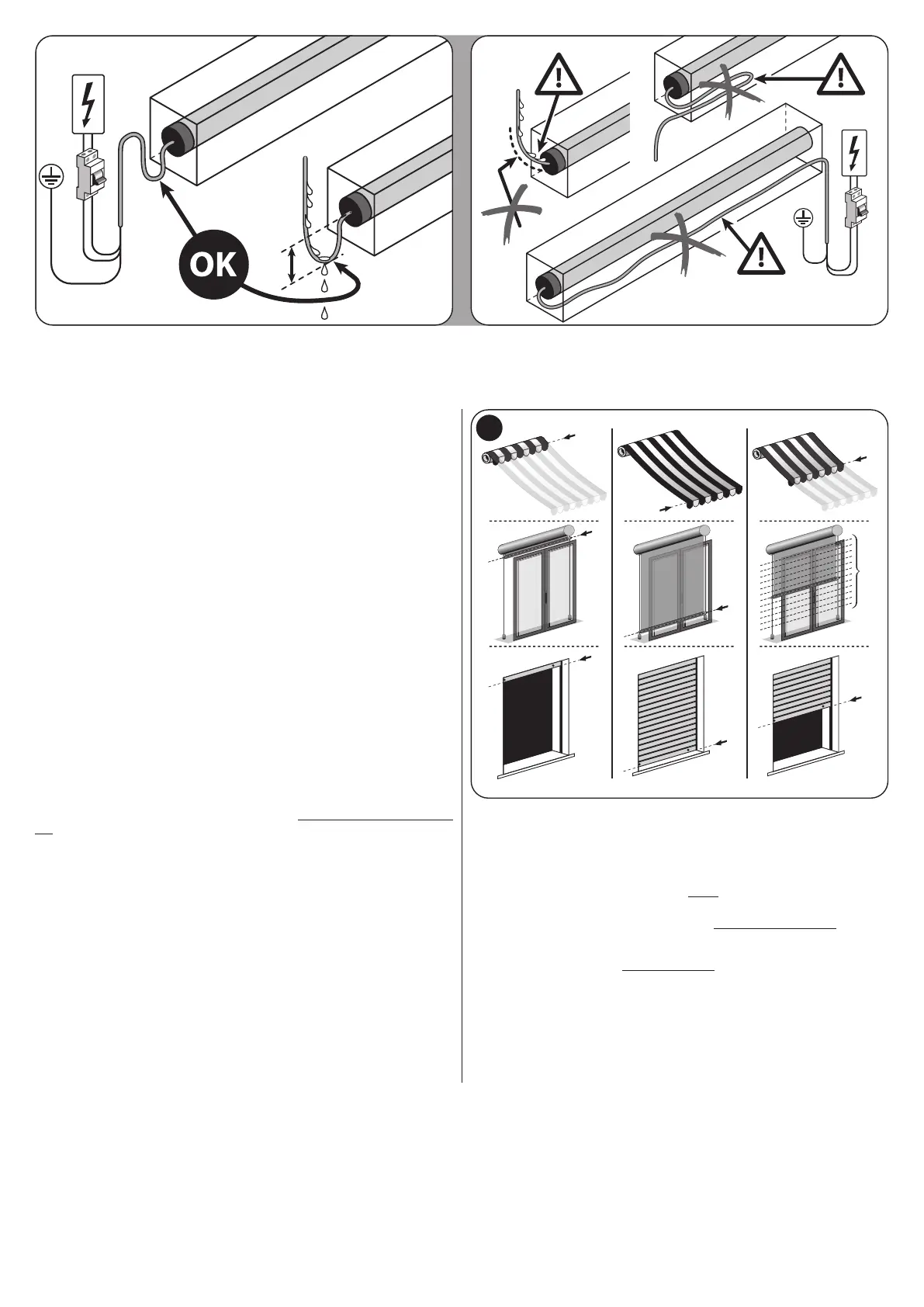

tain position programmed by the installer. The programmable positions are (fig. 3):
– position “0” = UPPER limit switch: totally wound awnings, blind or shutter;
– position “1” = LOWER limit switch: totally unwound awnings, blind or shutter;
– position “H” = INTERMEDIATE position: partially open awnings, blind or shutter.
When the limit switches are not programmed yet, the awning/shutter can be moved
only in the “hold-to-run” mode, i.e. keeping the control key pressed for the desired
duration of the manoeuvre; the movement stops as soon as the user releases the
key. However, after programming the limit switches, briefly pressing the appropriate
key will start the awning/shutter and it will stop moving automatically as soon as the
awnings, blind or shutter reaches the required position.
3
To adjust the distances “0” and “1” various procedures are possible; to choose the
appropriate one, take into account the supporting structure of your (awnings, blind
or shutter) (see the summary in the table.
WARNING! – If you want to again adjust again the height of the limit switches
adjusted previously, consider the following:
– If you would like to adjust them with an alternative procedure different
from the one used previously, you must FIRST delete the heights by fol-
lowing procedure A.4, B.4 or D.4.
– If you wish to adjust the same procedure used previously, you need not
delete them.
The programming of the limit switches simultaneously combines the two directions
of rotation of the motor to the respective shutter raising key (s) and shutter lowering
key (t) of the control device (initially, when the limit switches are not programmed
yet, the combination is random and it can happen that when pressing the s key, the
awnings, blind or shutter moves down instead of up, or vice versa).
j k
English – 6
