3.1 - Preliminary checks before installation and
limitations on use
• Check the condition of the product right after unpacking it.
• This product is available in several versions, each with a specific motor torque.
Each version is designed to drive awnings of a certain size and weight. There-
fore, before installation make sure the product’s motor torque, rotation speed and
operation time are suitable for automating your awning.
In particular, do not install the product if its motor torque is greater than that
needed to move your awning.
• Check the diameter of the winding roller. This must be chosen according to the
motor torque, as follows:
– for motors that are size “S” (Ø = 35 mm), the minimum inside diameter of the
winding roller must be 40 mm;
– for motors that are size “M” (Ø = 45 mm) and have a torque of up to 35 Nm
(included), the minimum inside diameter of the winding roller must be 52 mm;
INSTALLATION OF THE MOTOR AND
THE ACCESSORIES
3
– for motors that are size “M” (Ø = 45 mm) and have a torque of up to 35 Nm
(included), the minimum inside diameter of the winding roller must be 60 mm.
– for motors that are size “L” (Ø = 58 mm), the minimum inside diameter of the
winding roller must be 70 mm.
• Before automating an awning, check that there is enough free space in front of it
for it to be completely opened.
• If the motor is to be installed outdoors, adequate protection against atmospheric
agents must be guaranteed.
Additional limitations on use are contained in chapters 1 and 2 and in the “Technical
characteristics” section.
3.2 - Assembly and installation of the tubular motor
Warning! – Before starting, carefully read the warnings under sections 1.1
and 3.1. Incorrect installation could cause severe physical injury.

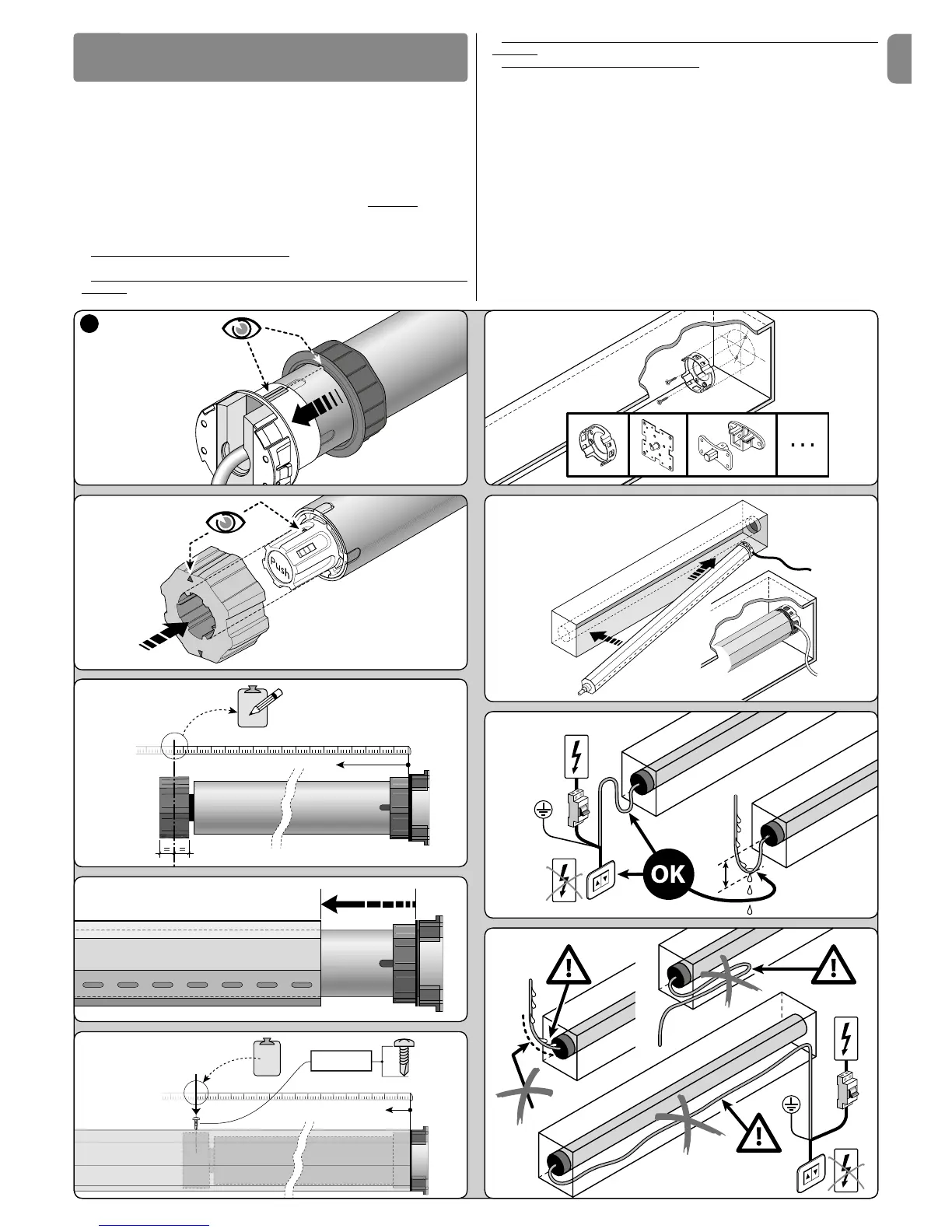

To assemble and install the motor, refer to fig. 4.
3.3 - Installation of accessories (optional)
After installing the motor, install the accessories, if required. Fig. 3 shows the type of
accessories that are compatible and their connection to the motor (all of these are
options and not included in the package).
