6 – English

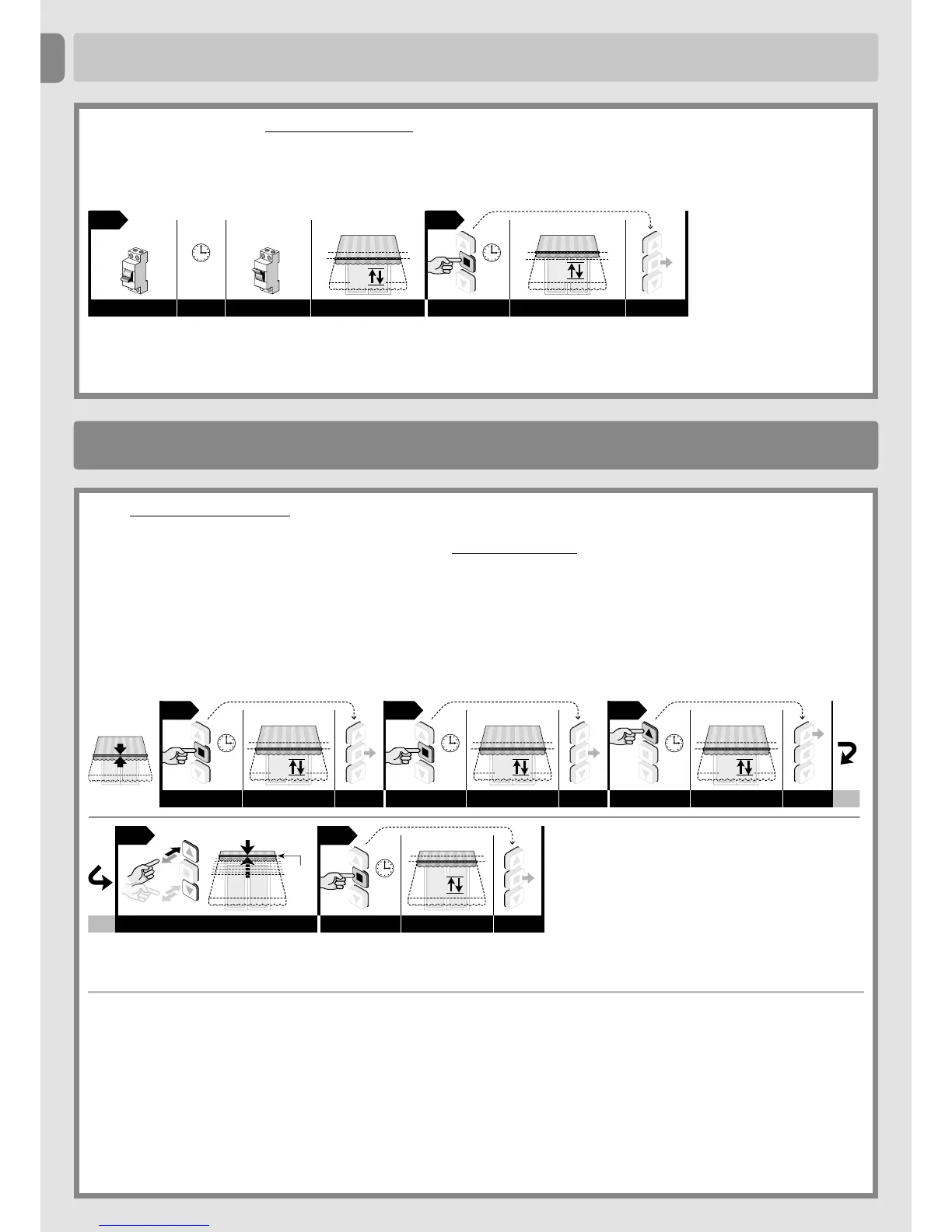

5.5 - Memorising the FIRST transmitter
Warning – Every time the motor is powered, 2 movements are performed if at least one transmitter and the limit switch heights are not in the memory.
01. Disconnect the power supply to the motor; wait two seconds and reconnect the power supply: the motor performs 2 movements and waits with no time limit.
02. Keep the key n pressed and wait for the motor to perform three movements. Upon completion, release the key.
2
sec.
ON
OFF
5
sec.
2
3
––––––––––
Note – After memorisation, the raising and lowering direction of the awning is not yet associated with the s and t respective keys of the transmitter. This combina-
tion will occur automatically when adjusting limit switches “0” and “1”; moreover, the rolling shutter will move in the “operator present” mode until the limit switches
are adjusted.
PROCEDURES
5.6 - Manual adjustment of upper limit switch height (“0”) and lower height (“1”)
Warning:
– This procedure overwrites previously adjusted heights with the new heights using this same procedure.
– Every time the motor is powered, 2 movements are performed if at least one transmitter and the limit switch heights are not in the memory.
5.6.1 - To adjust the UPPER limit switch (“0”)
Before starting the procedure, bring the awning to the midpoint of its stroke.
01. Keep the n key pressed and wait for the motor to perform 2 movements. Upon completion, release the key.
02. Keep the n key pressed again and wait for the motor to perform 4 movements. Upon completion, release the key.
03. Keep the s key pressed and wait for the motor to perform two movements. Upon completion, release the key.
04. Adjustment of the position: keep the s (or t) key pressed until the awning reaches the desired “0” height. Note – to adjust the height with precision, press
the s and t keys several times consecutively (at each pulse the awning moves a few millimetres).
05. Keep the n key pressed and wait for the motor to perform 3 movements. Upon completion, release the key.
5
sec.
5
sec.
2 24
“0”
5
sec.
3
Note – When performing the procedure, at any time you can cancel it by keeping the n and t keys pressed simultaneously for 4 seconds. Otherwise, do not press
any key and wait 60 seconds for the motor to perform 6 movements.
5.6.2 - To adjust the LOWER limit switch (“1”)
Before starting the procedure, bring the awning to the midpoint of its stroke.
01. Keep the n key pressed and wait for the motor to perform 2 movements. Upon completion, release the key.
02. Keep the n key pressed again and wait for the motor to perform 4 movements. Upon completion, release the key.
03. Keep the t key pressed and wait for the motor to perform 2 movements. Upon completion, release the key.
04. Adjustment of the position: Keep the t (or s) key pressed until the awning reaches the desired “1” height. Note – to adjust the height with precision, press
the s and t keys several times consecutively (at each pulse the awning moves a few millimetres).
05. Keep the n key pressed and wait for the motor to perform 3 movements. Upon completion, release the key.
Adjustment of the limit switch heights and intermediate heights
END
END
