Nice Era Plus M User Manual

Quick start guide
IS0192A02MM_14-12-2015 1/1
ENGLISH
Note for reading this Guide • In this
Quick Start Guide, the numbering of the
figures is separate and does not cor-
respond to the numbering cited in the
complete manual. • This guide does not
substitute the complete manual.
Era Plus

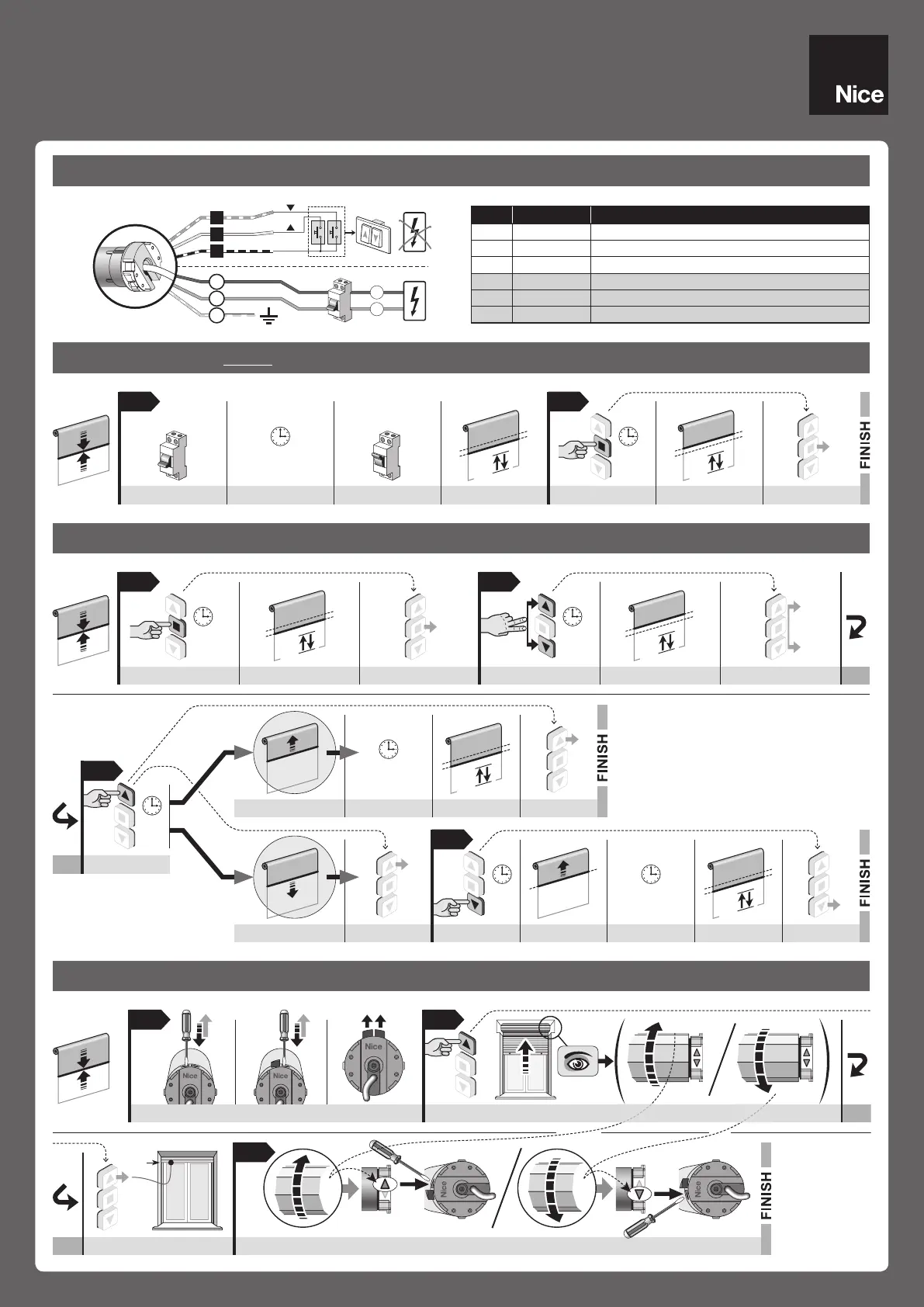

2 - Memorising the FIRST transmitter - see paragraph 5.7
1 - Electrical connections - see Chapter 4
3 - Pairing between the movements of the awning and the control keys - ref. paragraph 5.8
4 - Programming the two limit switches - ref. paragraph 5.5
1
2
3
L
N
Com.
4
5
6
Cable Colour Connection
1 White-orange Clockwise rotation pushbutton
2 White Counter-clockwise rotation pushbutton / TTBus
3 White-black Common (for bus wires)
4 Brown Supply phase
5 Blue Neutral
6 Yellow-green Earth
Tubular motor for shutters, awnings,
sun screens and similar equipment
2
sec.
ON
OFF
01 02
5
sec.
3
2
Turn OFF Wait Turn ON Movements (no. 2) Press until ... Movements (no. 3) Release
01 02
5
sec.
5
sec.
03
...
sec.
6
sec.
3
2
...
3
...
3
04
Press until ... Movements (2) Release Press together until ... Movements (3) Release together
If the awning goes up: Wait Movements (3) Release
If the awning goes down: Release Press until ... (the awning goes up) Wait Movements (3) Release
Press until ...
01 02
03
“0”
BA
B
A
Release the “arrow” buttons Press until ... Observe the direction of rotation
Upper limit switch “0” Press the button equal to the direction of rotation
To adjust the
limit switch
“1”, repeat the
procedure.
