Plug in Receivers:
Plug in receivers are to be plugged directly into NICE units; once plugged in they are ready to work
as all the electrical signals (power, aerial and outputs) have their own place on the unit.
POWER:
from 20 to 28 V direct or alternate,
normally supplied by the unit.
1
st
RELAYOUTPUT:
free contact of a normally open
relay, used for unit command.
2
nd
RELAY OUTPUT:
free contact of a normally open
relay available on specific unit
terminals (only on 2-channel
receivers).
AERIAL:
aerial signal input, on specific unit
terminals.
GB
FLOXIR
FLOXI2R
AERIAL
2
ND
RELAY OUTPUT
1
ST
RELAY OUTPUT
UNUSED
POWER

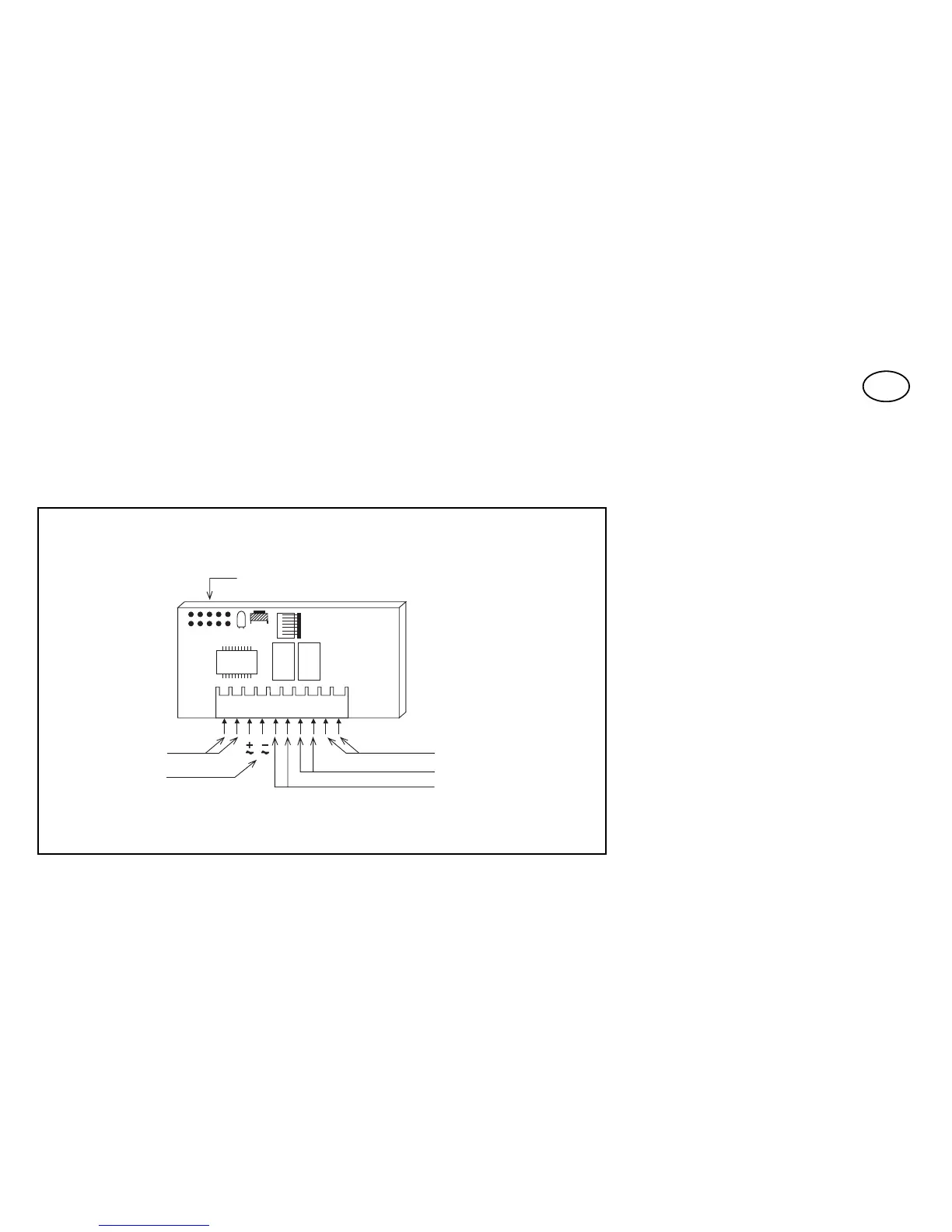

Fig. 3
CHANNEL SELECTION
