Nidec TNP Series Operation Manual

2
Parts and Functions
Parts Functions/Description
Power key
Turns the unit ON and OFF.
Recall key
Recall data stored in OPEN and CLOSE modes.
NOTE: in Average or Mean Mode, the Recall button has no function
Mem key
Memory key for storing data in Open and Close Modes.
Note: In Mean mode the Mem key has no function. In this mode
data cannot be stored in memory.
Mem combined with another key is used in secondary functions.
(Parameter and clear settings – see next section).
Mode key
Selects mode of operation (CLOSE, MEAN, and OPEN)
Serves as an exit function when in Memory recall.
Secondary function in parameter settings (see next section)
Zero/RST key
Tare or zero function for resetting and initializing values while in
Average or peak mode.
Secondary function in parameter settings (see next section)
Main Display
Displays measured values and status indicators, which includes
units of measure, battery status and function status.
Measuring mode
indicators
Red LED mode indicators. Informs which mode is selected “Open”,
“Mean” or “Close”.
Comparator LED
Indicators
Quick pass/fail visual indicators for all modes of measurement.
The LED indicator does not light when comparator feature is OFF.

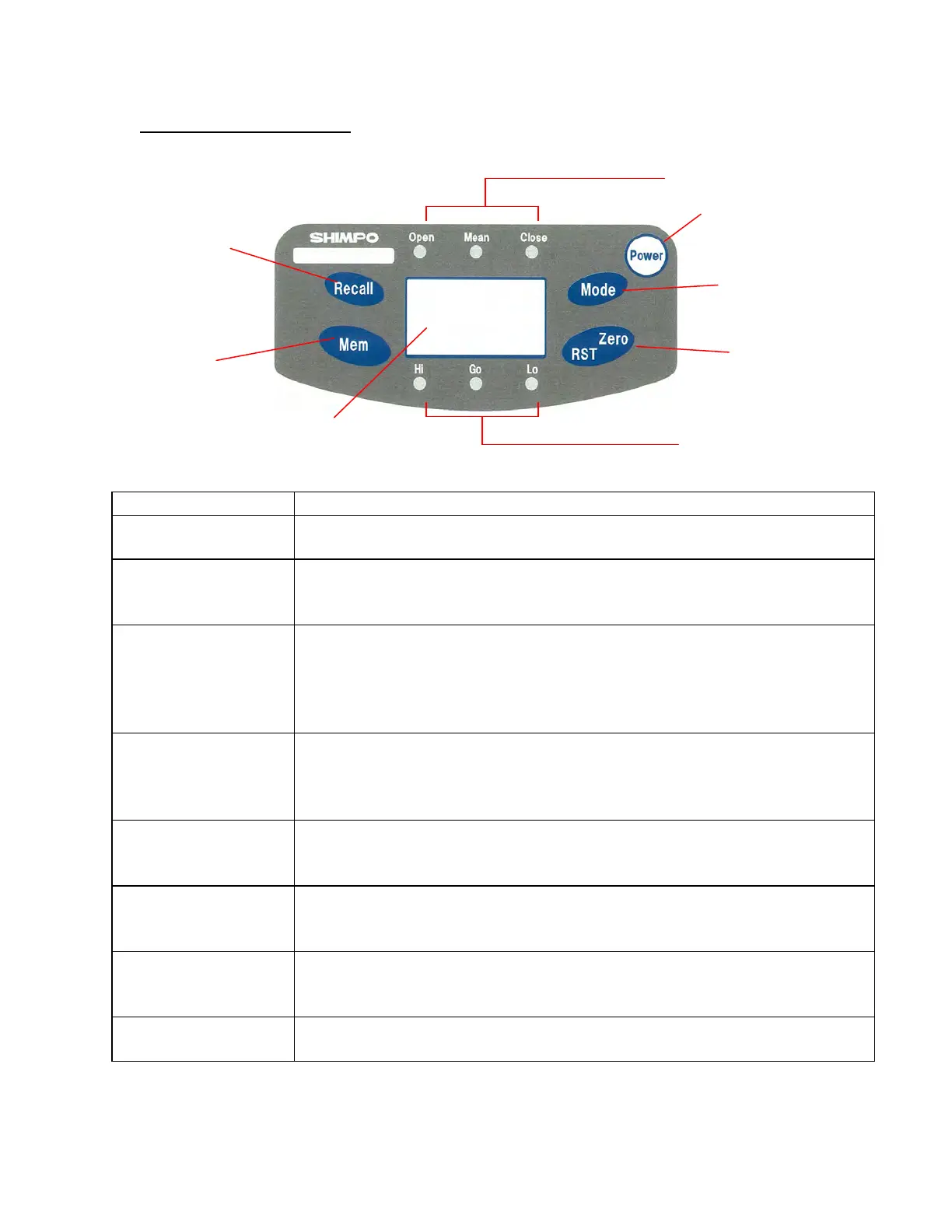

Recall Key
Mode Key
Zero/RST Key Memory Key
Measuring mode indicators
Comparator LED indicators
Main Display
Power key
