1. Technical date.
N126d N126e
Total length 3900 mm 3900 mm
Total width 1940 mm 1940 mm
Total height 2180 mm 2180 mm
The construction and living space – length 2700 mm 2700 mm
– width 1840 mm 1840 mm
– height 1850 mm 1850 mm
Wheel track 1500 mm 1500 mm
Sleeping places 2 + 1 2 + 2
Sleeping place dimension – front 1840 x 560 mm 1480 x 930 mm
– back 1840 x 1210 mm 1810 x 1210 mm
Dead weight of the caravan 550 kg 550 kg
Allowed useful load 100 kg 100 kg
Ball diameter 50 mm 50 mm
Vertical load of the coupler 35-45 daN 35-45 daN
2. Towing car preparation for caravanning.
The car prepared to travel with a trailer towed should be equipped with properly coupler (tow hook),
two properly extended rear views and two electricity connectors. Ball diameter of the tow hook is
50 mm and the distance between the centre of the tow ball and the ground will be between 350 and
450 mm. Both electricity connectors are seven polar 12 V plug-in sockets. Signalling electricity
connection sockets should be in accordance with the standard ISO 1724-1980 and connection socket
for living space lighting should be in accordance with the standard ISO 3732-1976.
3. Function and service.
3.1. Ball tow hook.
Preparation: the lever (1) put up and point it towards front side (2)
Checking the clamping safety – using the safety indicator:
– the coupler is right and firmly connected when the indicator is located within the field “+”
– the coupler is wrong connected or partly worn out when the indicator is within the field “-”
– the worn out coupler should be changed immediately

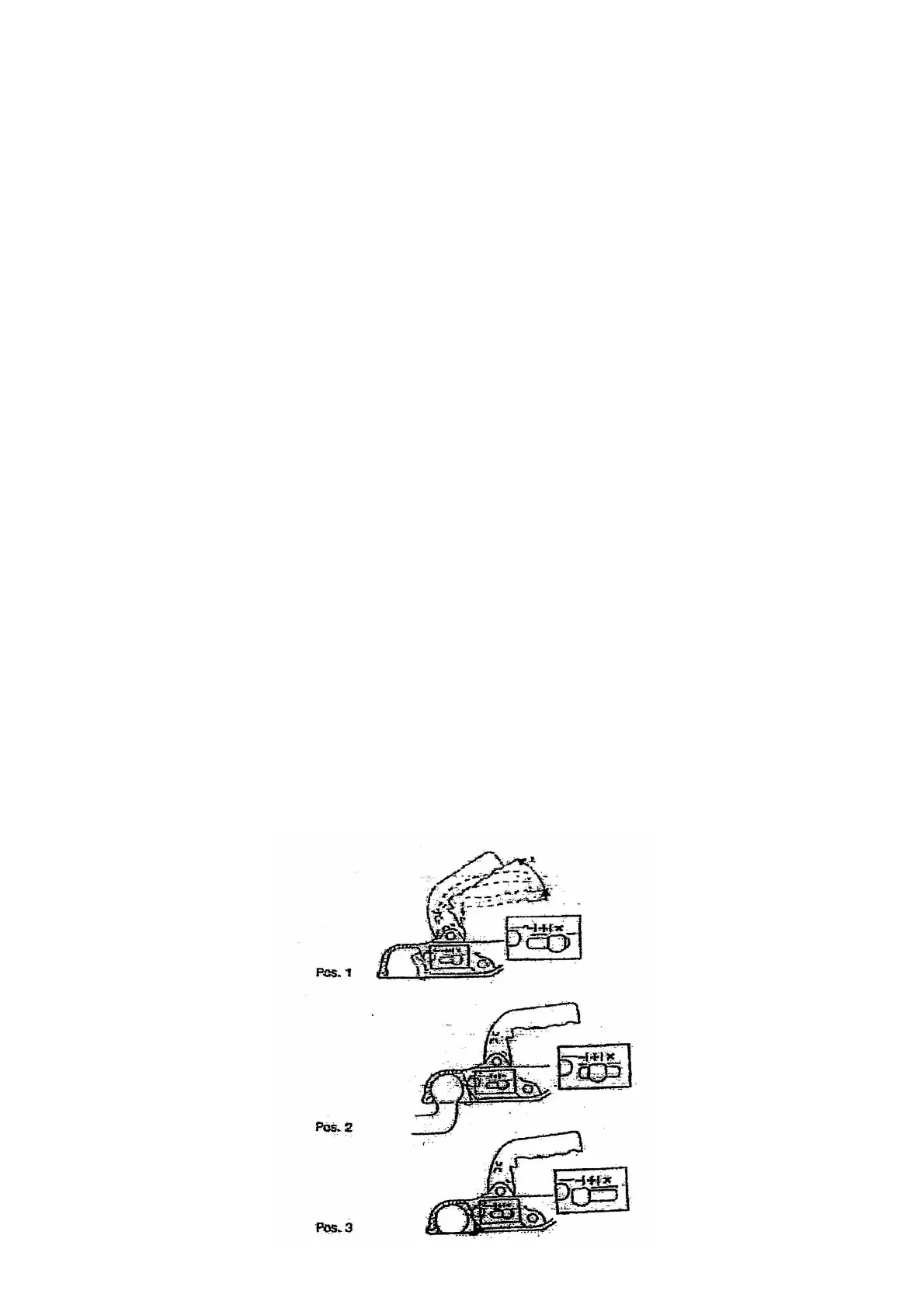

Figure 1 : The lever
