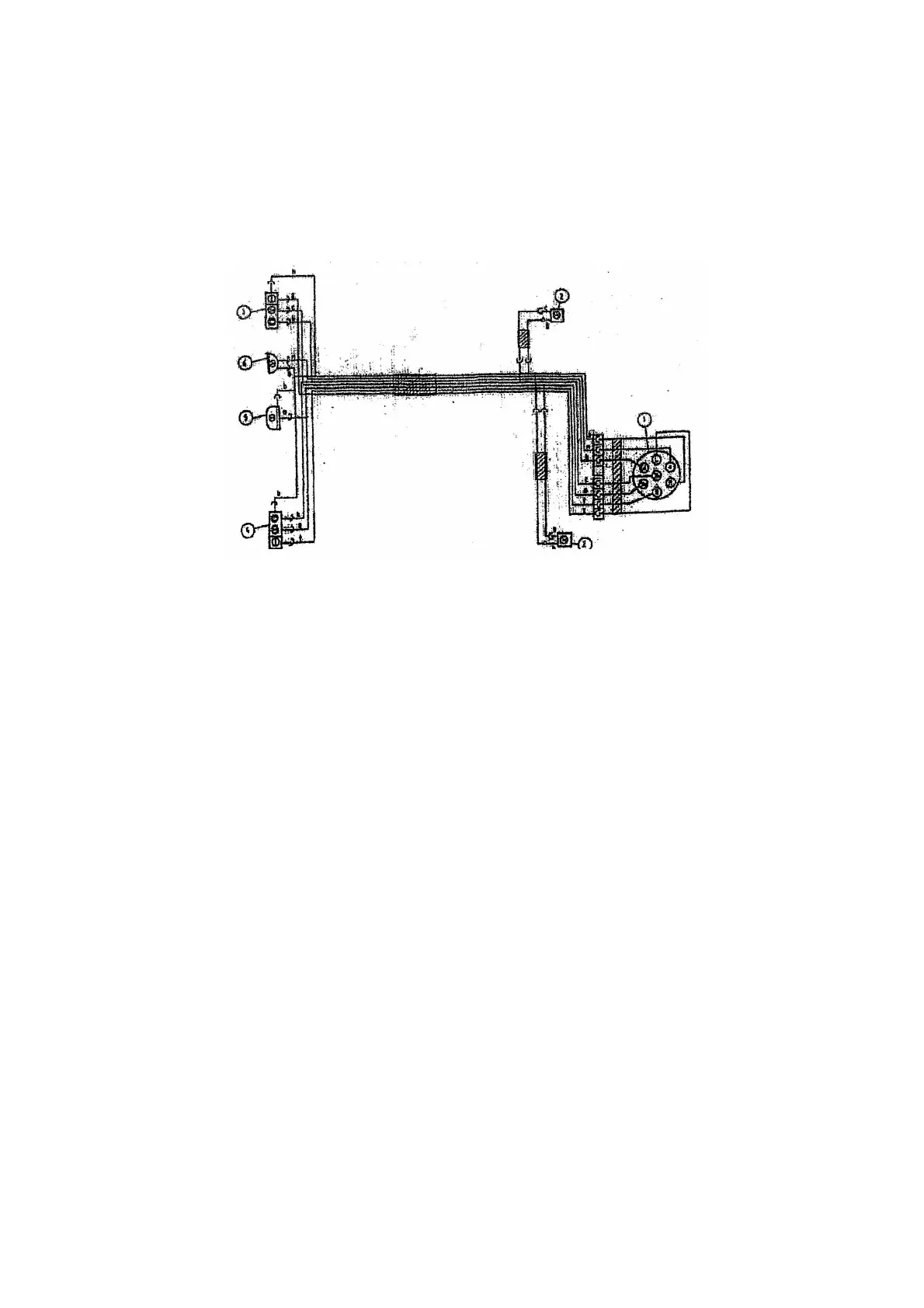

Diagram key: 1 connection plug-in socket
2 front position lamp
3 left rear
4 right rear
5 number plate light
6 fog light
Figure 4 : Diagram of signalling light system 12 V of the caravan N-126d & N-126e
Caravan inside wiring system 12 V.
Diagram of the caravan living space lighting wiring system for Design N-126d is shown on the fig.5 and
for the N-126e on the fig.6. The system is designed to work with a transformer 220V/12V.
To connect on the transformer to power-net, carry out following activities :
– disconnect the plug-in socket connection out of the driving car
– connect the transformer with 220 V AC socket, located next to the left bed, connect the plug of the
transformer with the 12 V socket (8) of the caravan living space lighting, located next to the left bed
The net is protected with a fuse of 6,3 A, located under a cover of the 12 V wires bundle next to the left
fore bed. The 12 V plug-in socket allows connection the 12 V electric equipment to the net. The wiring
connection terminals in the plug-in socket are in accordance with the standard ISO 3732-1976.
Bulbs list of the caravan: inside lighting → tube shaped lamp 12V/5W
number lighting → bayonet socket bulb 12V/5W
flashing light → bayonet socket bulb 12V/10W
fog signalling light → bayonet socket light 12V/21W
stop-rear standstill-front standstill light → bayonet socket bulb 12V/5W
Figure 5 : Diagram of the caravan living space lighting system 12 V for design N-126d
10 vehicle mass b white
11 power supply k red
