Nikkai L35AK - Names and Functions; Control Panel and Louvers; Water Reservoir and Inlet; Air Intake and Filtration

Thankyou for purchasing this Aircooler/Humidifier from Maplin Electronics
Limited.
Please keep this manual in a safe place for future reference.
If the unit is transferred to another person please attach the User Manual
with the unit.

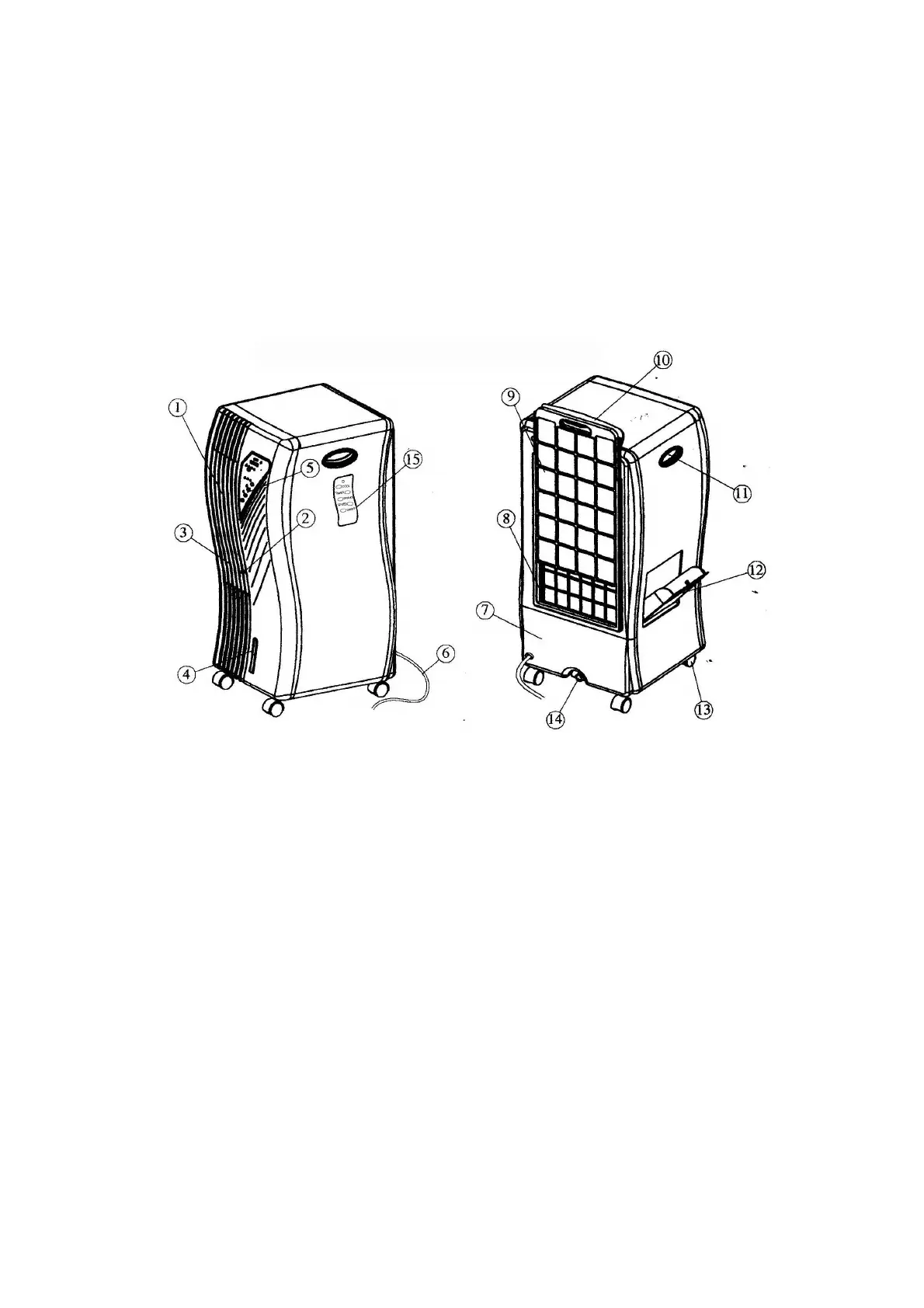

Names and Functions
1. Air Vent – this is the outlet for the cool air
2. Blower Louver – this can be adjusted via the louver stick
3. Horizontal Louver – the auto oscillating angle is 100 degrees
4. Water reservoir index – shows the water level in the reservoir
5. Control panel – indicators of the timer, swing, cool, power, and speed
switch
6. Power cord – approx. 1.8m length
7. Water reservoir – replenished water through the water inlet is stored
(up to 6.5 litres)
8. Suction – air inlet
9. Filter holder – used for protecting and supporting the filter
10. Filter – anti-bacterial filter
11. Handle – to be used when transporting the unit
12. Water inlet – entrance for filling the water
13. Castors – for easy transportation of the unit
14. Rubber plug and water outlet – remove plug to discharge water.
15. Remote control – magnetic attachment to keep remote control safe
