The Camera Body

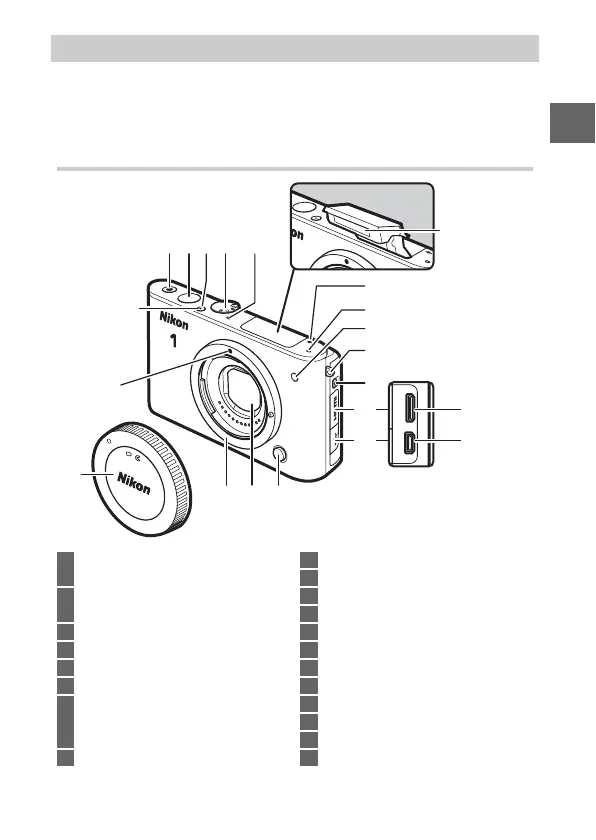

Parts of the Camera
31 2 54
15
17
16
6
5
7
8
9
19
20
18
14 1213
10
11
1 Movie-record button
.................................... 31, 44, 55, 57, 61
2 Shutter-release
button ....................... 25, 46, 48, 52, 59
3 Power switch........................................21
4 Mode dial..............................................18
5 Microphone
6 Focal plane mark (E)
7 AF-assist illuminator
Self-timer lamp ...................................67
Red-eye reduction lamp ...................71
8 Eyelet for camera strap......................19
9 Flash pop-up button.......................... 69
10 HDMI connector cover
11 USB connector cover .........................81
12 Lens release button
13 Dust shield .................................... 86, 87
14 Lens mount
15 Mounting mark ................................... 21
16 Power lamp ..........................................21
17 Body cap ............................................... 84
18 Built-in flash......................................... 69
19 HDMI mini-pin connector
20 USB connector.....................................81
