Nikon Fisheye-Nikkor 16mm f/2.8 User Manual

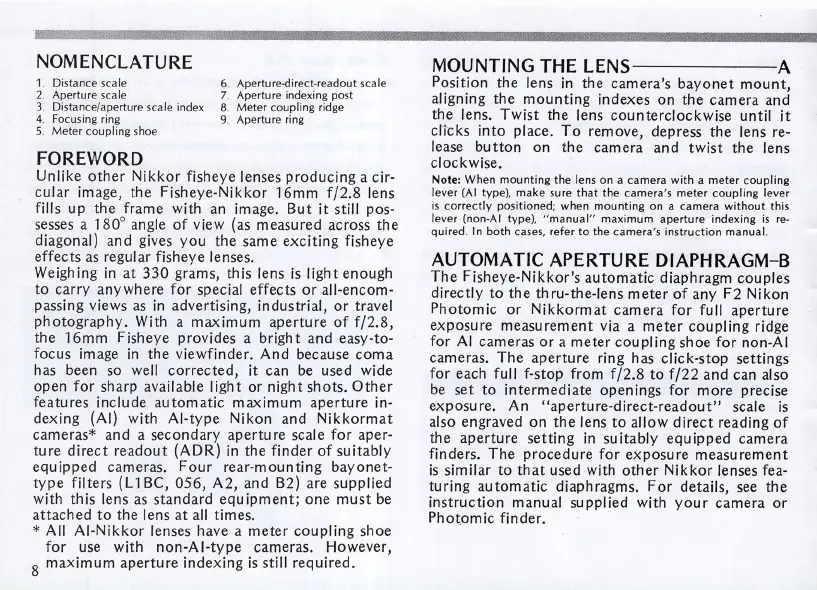

NOMENCLATURE
1. Distance sca le
6. Apertur e-d ir ect·readout sca le
2. Aperture scale
7. Aperture ind exi ng post
3. Distance/ape rt ure scale index 8. Mete r coupling ridge
4. Focusing ring 9. Aperture ring
S. Meter coupling sh oe
FOREWORD
Unlike other Nikkor fishe ye lenses producing a cir-
cular image,
the Fisheye-Nikkor 16mm f/2_8 lens
fills
up the frame with an image_ But it still pos-
sesses a 1
80
0
angle of view (as measured across the
diagonal) an d gives you the same exciting fisheye
effects as regular fisheye lenses_
Weighing
in at 330 grams, this lens is light enough
to carry a nywhere for special effects or ali-encom-
passing views as
in advertising, industrial, or travel
photography . With a maximum aperture of f/2 .8,
the 16mm Fisheye provides a bright and easy- to-
focus image in the viewfinder. And because coma
has been so well corrected, it can be us ed wide
open for sharp available light or ni g ht shots. Other
features include automatic maximum aperture in-
dexing (AI) with AI-type Nikon and Nikkormat
cameras* and a seco ndary aperture scale for aper-
ture direct readout (ADR) in the finder of suitably
equ ipped cameras. Four rear-m ounting bayonet -
type filters (L 1 Be, 056, A2, and B2) are supplied
with this lens as standard equipment ; one must be
attached to the lens at all times .
* All
AI - Nikkor lenses have a mete r coupling shoe
for use with non-AI-type cameras. However,
8 m
axi mum aperture inde x ing is still required.
MOUNTING THE LENS A
Po si tion the lens in the camera's bayonet mount,
aligning the mounting indexes on the camera and
the lens. Twist the lens c ounterclockwise until it
clicks into place. To remove, depress the lens re-
lease
button on the camera and twist the lens
clockwise.
Note: When mounting the lens on a came ra wit h a meter coupling
lever (AI type), make sure that the came
ra 's meter coupling lever
is correctly positioned; when mounting on a ca mera without this
lever (non-A I type), " manual " m ax imum aperture indexing is re-
quired. In both cases, refer to the came ra's instruction manual.
AUTOMATIC APERTURE DIAPHRAGM- B
The Fisheye-Nikkor's automatic diaphragm couples
directly to the thru-the -Iens meter of any F2 Nikon
Photomic or Nikkormat camera for full aperture
ex posure measurement via a meter coupling ridge
for
AI cameras or a meter coupling shoe for non-AI
cameras . The apert ur e ring has click-stop settings
for each full f-stop from f/2 .8 to f/22 and can also
be set to intermediate openings for more precise
exposure. An "a perture-direct-readout" scale is
al so engraved on the lens to allow direct reading of
the aperture setting in suitably equipped camera
finders. The pro cedure for exposure measurement
is sim ilar to that used wit h other Nikkor lenses fea-
turing automatic diaphragms. For details, see the
instruction manual supplied with your camera or
Photomic finder.

Nikon Fisheye-Nikkor 16mm f/2.8 Specifications

General

Focal Length	16mm
Maximum Aperture	f/2.8
Lens Construction	8 elements in 5 groups
Angle of View	180°
Aperture Blades	7
Filter Size	Rear gelatin filter
Weight	290 g
Lens Mount	Nikon F mount
Format Compatibility	FX/35mm
Dimensions	63 x 61 mm
