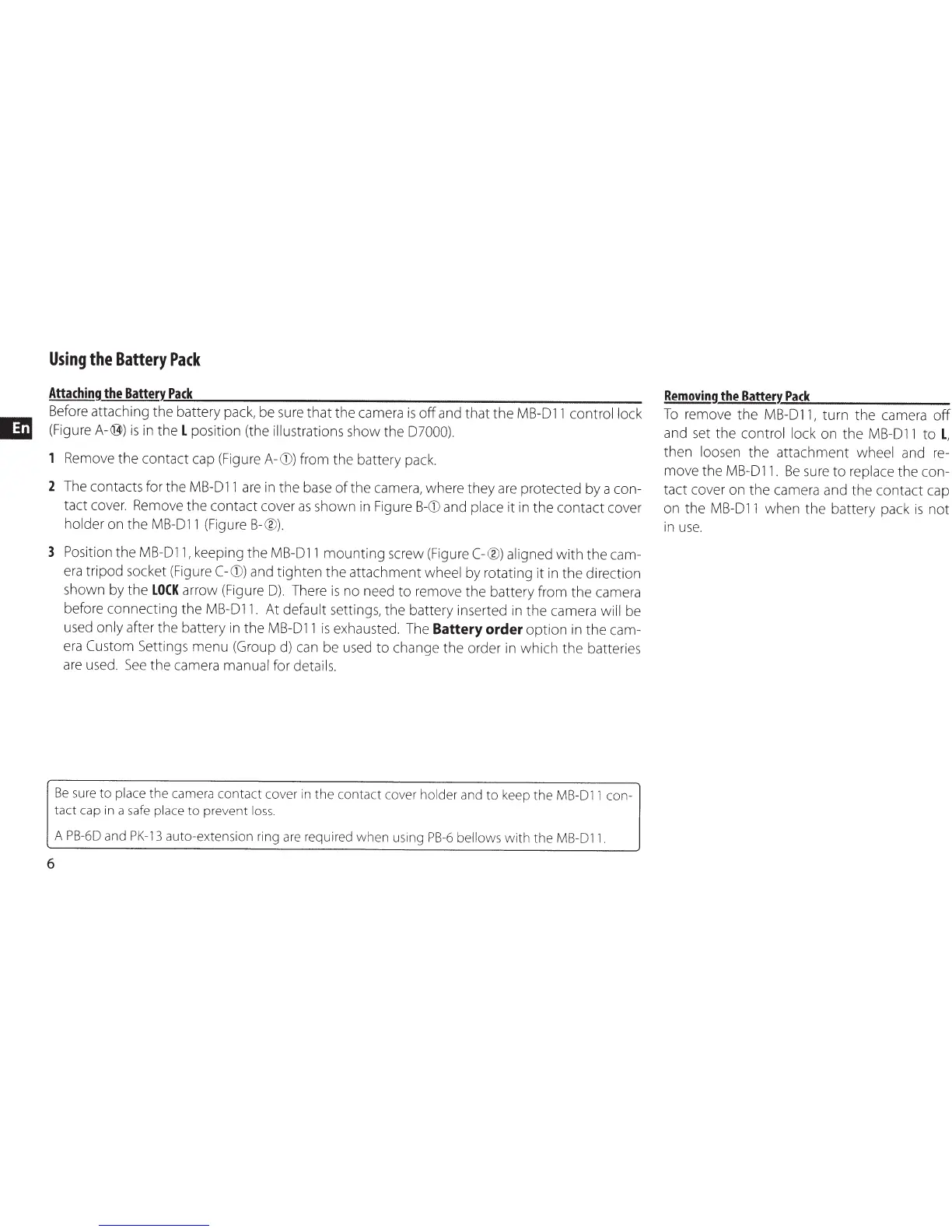

Nikon MB-D11 - Page 10

Using
the
Battery
Pack
Attaching
the
BatterY.~..:.P~a.:.ck;:.._
_______________________
_
Before attaching
the
battery pack, be sure
that
the
camera
is
off
and
that
the
MB-011
control lock
(Figure
A-@)
is
in the
L
position (the illustrations show
the
07000).
1
Remove
the
contact cap (Figure
A-CD)
from the battery pack.
2
The contacts for the
MB-011
are
in
the
base
of
the
camera, where
they
are
protected
by
a con-
tact
cover. Remove
the
contact
cover
as
shown in Figure
B-CD
and place it in
the
contact
cover
holder on
the
MB-011 (Figure B-®).
3 Position the MB-011, keeping
the
MB-011
mounting
screw (Figure
C-®)
aligned
with
the
cam-
era
tripod
socket (Figure
C-CD)
and
tighten
the
attachment
wheel by rotating
it
in
the
direction
shown by
the
LOCK
arrow (Figure
D).
There
is
no need
to
remove
the
battery
from
the
camera
before connecting
the
MB-011. At default settings,
the
battery inserted in
the
camera
will be
used only after the battery in
the
MB-011
is
exhausted. The
Battery order
option
in
the
cam-
era
Custom Settings menu (Group d) can be used
to
change
the
order in
which
the
batteries
are
used.
See
the
camera manual for details.
Be
sure
to
place
the
camera
contact
cover in
the
contact
cover
holder
and
to
keep
the
MB-011 con-
tact
cap in a
safe
place
to
prevent
loss.
A
PB-60
and
PK-13
auto-extension ring are required
when
using
PB-6
bellows
with
the
MB-011.
6
Removing
the
BatterY.._.P
....
a
....
ck.._
______
_
To
remove
the
MB-011,
turn
the
camera
off
and set the control lock on
the
MB-011
to
L,
then
loosen
the
attachment
wheel and re-
move
the MB-011.
Be
sure
to
replace
the
con-
tact cover on
the
camera and
the
contact
cap
on
the
MB-011
when
the
battery pack
is
not
in
use.
