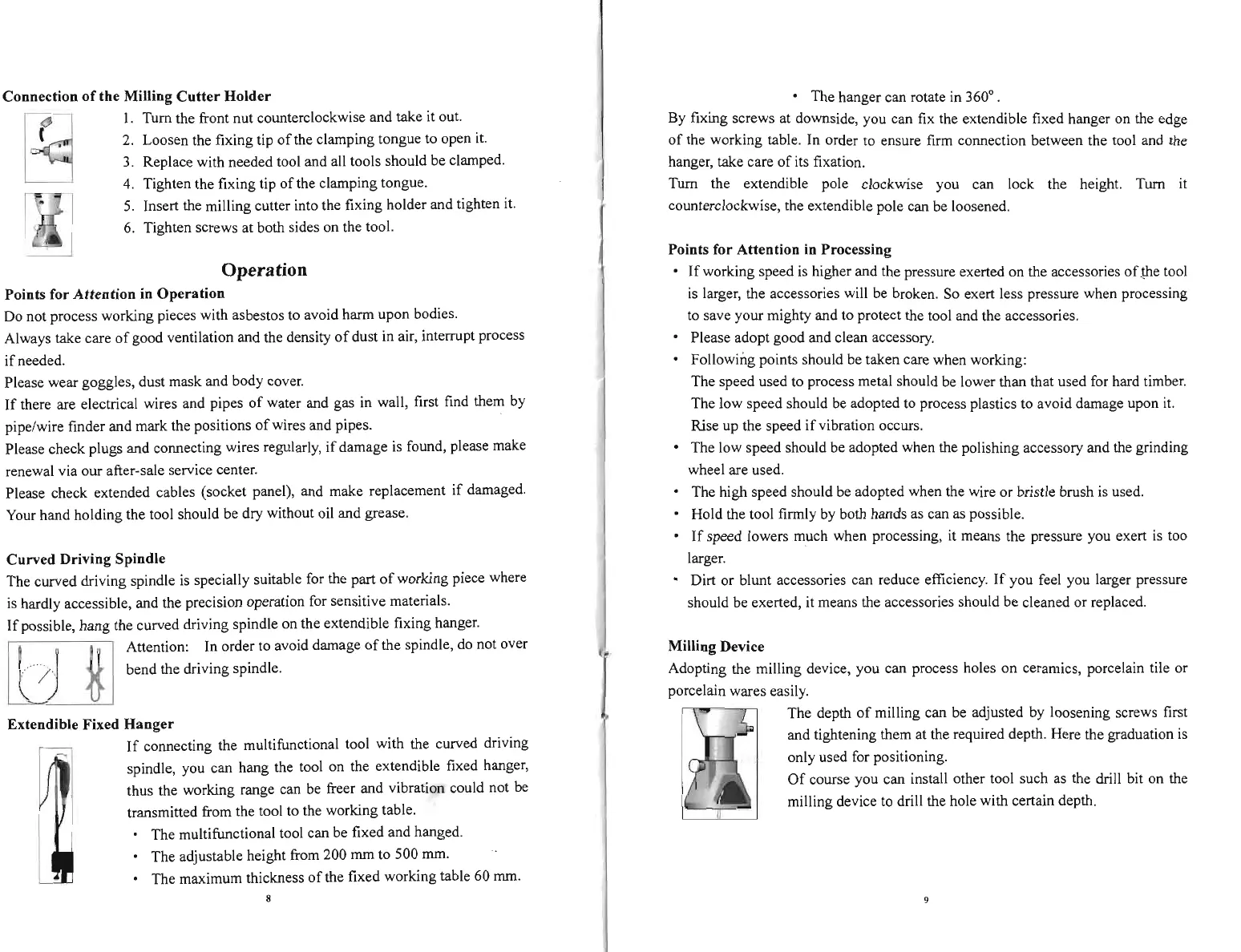

Connection
of
the Milling
Cutter
Holder
I. Tum the front nut counterclockwise and take it out.
2.
Loosen the fixing tip
of
the clamping tongue to open
it.
3.
Replace with needed tool and all tools should
be
clamped.
4.
Tighten the fixing tip
of
the clamping tongue.
5.
Insert the milling cutter into the fixing holder and tighten
it.
6.
Tighten screws at both sides on the tool.
Operation
Points for Attention in
Operation
Do not process working pieces with asbestos to avoid harm upon bodies.
Always take care
of
good ventilation and the density
of
dust
in
air, interrupt process
if
needed.
Please wear goggles, dust mask and body cover.
If
there are electrical wires and pipes
of
water and gas
in
wall, first find them by
pipe/wire finder and mark the positions
of
wires and pipes.
Please check plugs and connecting wires regularly,
if
damage
is
found, please make
renewal via our after-sale service center.
Please check extended cables (socket panel), and make replacement
if
damaged.
Your
hand holding the tool should
be
dry without oil and grease.
Curved
Driving Spindle
The curved driving spindle
is
specially suitable for the part
of
working piece where
is
hardly accessible, and the precision operation for sensitive materials.
If
possible, hang the curved driving spindle on the extendible fixing hanger.
Attention: In order to avoid damage
of
the spindle,
do
not over
.
..
..
i
10
I bend the driving spindle.
/
·n·
"---/
Extendible Fixed
Hanger
If
connecting the multifunctional tool with the curved driving
spindle, you can hang the tool on the extendible fixed hanger,
thus the working range can
be
freer and vibration could not
be
transmitted from the tool to the working table.
• The multifunctional tool can
be
fixed and hanged.
The adjustable height from 200
mm
to 500 mm.
• The maximum thickness
of
the fixed working table 60 mm.
•
• The hanger can rotate
in
360
0
By fixing screws at downside, you can
fix
the extendible fixed hanger on the edge
of
the working table. In order to ensure firm connection between the tool and the
hanger, take care
of
its fixation.
Tum the extendible pole clockwise you can lock the height. Tum
it
counterclockwise, the extendible pole can
be
loosened.
Points for Attention in Processing
•
If
working speed
is
higher and the pressure exerted on the accessories
of
the tool
is
larger, the accessories will
be
broken.
So
exert less pressure when processing
to
save your mighty and to protect the tool and the accessories.
• Please adopt good and clean accessory.
• Following points should
be
taken care when working:
The speed used to process metal should
be
lower than that used for hard timber.
The low speed should
be
adopted to process plastics to avoid damage upon
it.
Rise up the speed
if
vibration occurs.
• The low speed should be adopted when the polishing accessory and the grinding
wheel are used.
• The high speed should
be
adopted when the wire or bristle brush
is
used.
• Hold the tool firmly
by
both hands as can as possible.
•
If
speed lowers much when processing, it means the pressure you exert
is
too
larger.
• Dirt or blunt accessories can reduce efficiency.
If
you feel you larger pressure
should be exerted,
it
means the accessories should be cleaned or replaced.
Milling Device
Adopting the milling device, you can process holes on ceramics, porcelain tile or
porcelain wares easily.
\
...
I I The depth
of
milling can
be
adjusted
by
loosening screws first
and tightening them at the required depth. Here the graduation
is
only used for positioning.
Of
course you can install other tool such
as
the drill bit on the
milling device to drill the hole with certain depth.
