Niles SW8 - Connection and Controls; Operation Controls

1-800-BUY-HIFI – www.nilesaudio.com 5

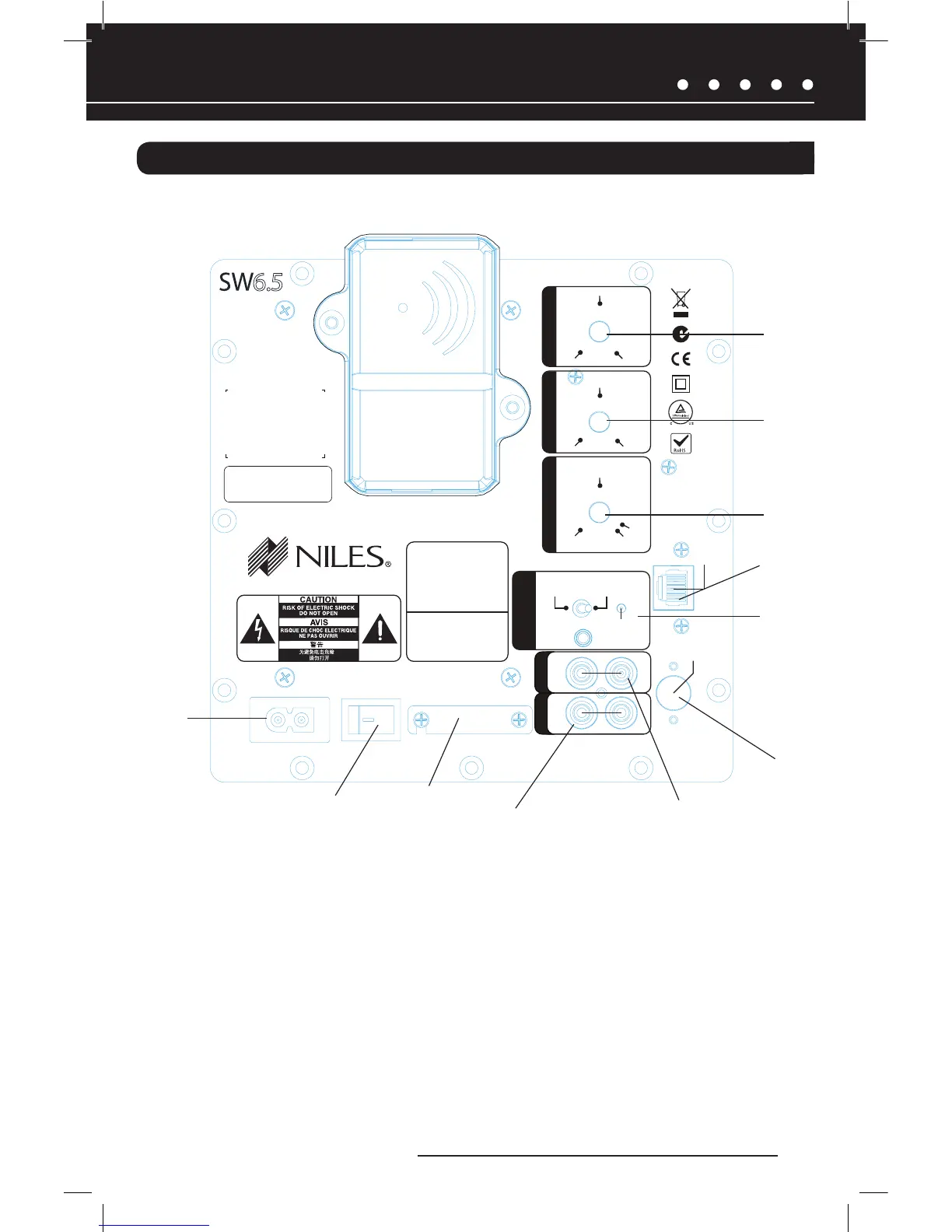

CONNECTION ANd CONTROLS
OPERATION CONTROLS
TURN-ON
MODE
FREQUENCY PHASE
LEVEL
OFF ON
R
R
Signal
Sense
Green-ON
Red-STANDBY
Trigger
Input
Voltage Selector
Wireless
Port
C5-A2
Port
Always
ON
90˚
0˚
180˚
0 dB
MIN
MAX
100 Hz
NORMAL
50 Hz BYPASS
150
Hz
Designed and Engineered in the USA. Made in China.
Serial Number
OUTPUTINPUT
L
L/
LFE
The AVC Group, LLC. Carlsbad, CA USA
100-120 V~ 220-240 V~
100-120 V~
220-240 V~
50/60 Hz. 2A
This device complies with part
15 of the FCC Rules. Operation
is subject to the following two
conditions: (1) this device may
not cause harmful interference
and (2) this device must accept
any interference received,
including interference that may
cause undesired operation.
This Class B digital apparatus
complies with Canadian
ICES-003. Cet appareil
numérique de la classe B est
conforme à la norme NMB-003
du Canada.
1. AC input
2. Main power on/off switch
3. AC voltage selector (under protective cover)
4. Pre-amp level sub/stereo audio inputs
5. Pre-amp level sub/stereo audio pass-
through outputs
6. Turn-on mode with LED status indicator
7. Frequency control, variable with bypass
8. Phase control, variable 0°~180°
9. Level control
10. C5-A2 port for optional CAT-5 Balun
(balanced/unbalanced) connection
11. Wireless port for optional Niles wireless
receiver connection
1
2 3
4
5
11
6
10
7
8
9
