Nilfisk-ALTO POSEIDON 3 Service Manual

D
sm_POSEIDON 3_en_Ver.1.0_11.07
Function
23

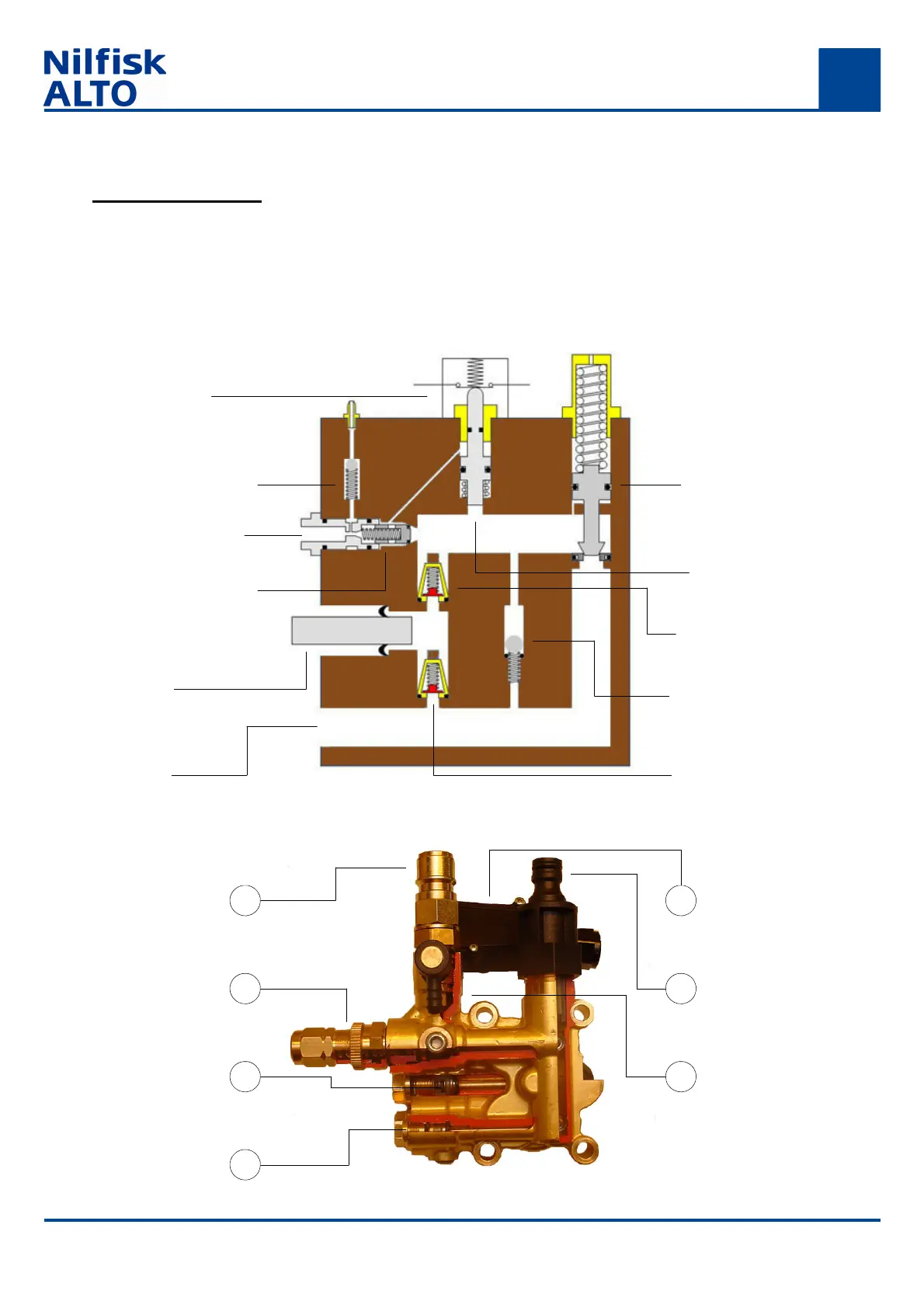

Fig.D.4: Valve block 1 ~ - Cut Away View
The schematic drawing of the Valve Block 1~ in (Fig.D.3) is made to get a better
understanding of the function.
NOTE ! Fig,D.3 shows the single phase version with enabled easy start valve. With
disabled easy start valve, the function will be the same as the three phase version fig.D.5
Fig.D.3: Schematic drawing valve block 1 ~
Pressure outlet(5)
Non-return valve(7)
Dertergent valve(3)
Piston(9)
Easy start valve(8)
( Enabled)
Pressure valve(2)
Inlet(11)
End switch(1)
Control piston(4)
3
8
5
2
1
11
Valve pressure(6)
Valve suction(10)
6
Disabled in picture
Principal drawing 1~
