Ninebot ZING C15E User Manual

WARNING
Power off the scooter before assembling. The brake cable should not wrap around the stem.

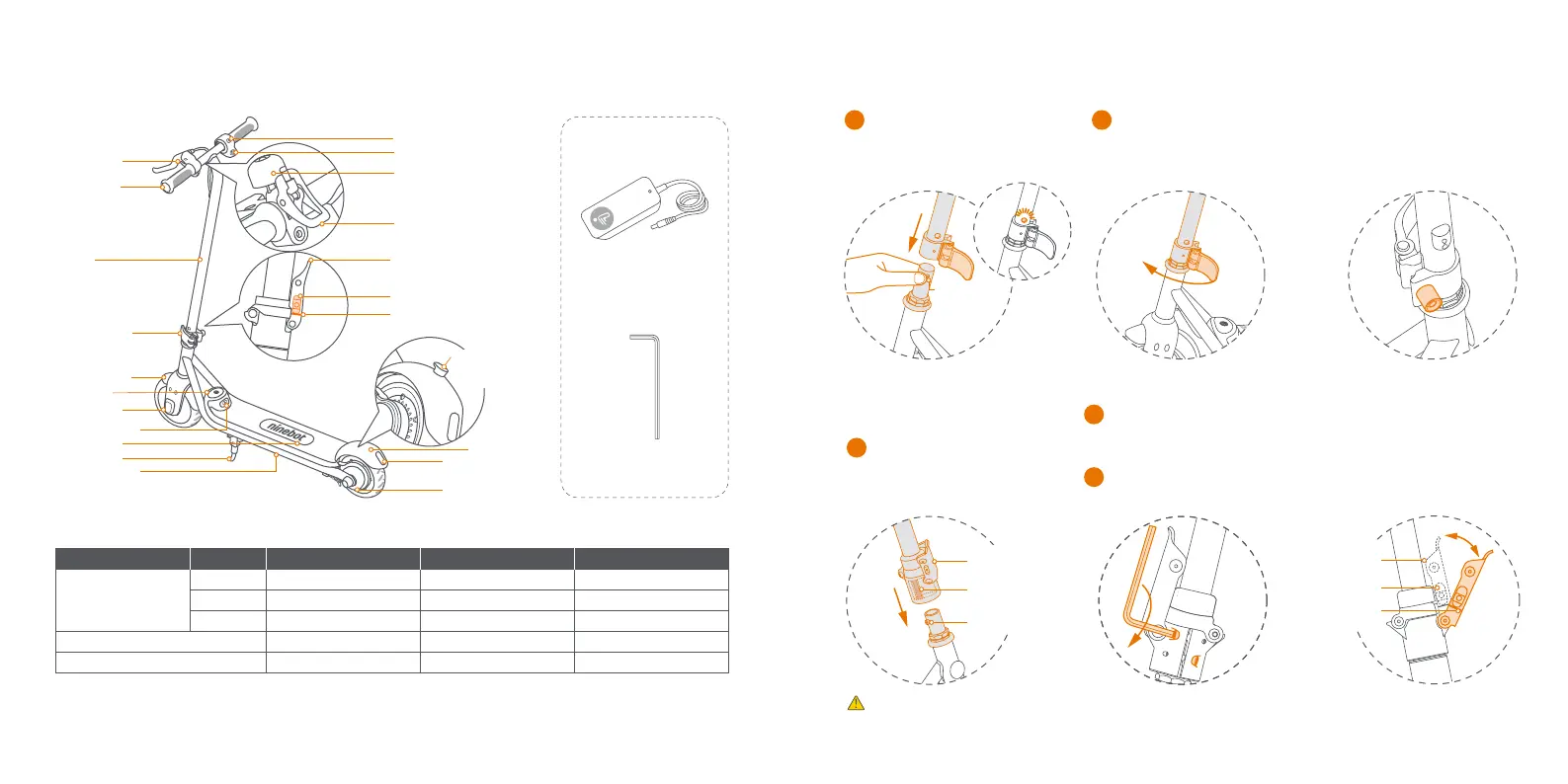

3 Assembly
Please familiarize yourself with each part. This manual uses C10 as an example and pictures are for illustration purposes only.
The actual product may vary.
2 Parts and Functions
03 04
Power button
Press the button to power on or change riding modes. The Turbo mode is set as default when turned on. Hold for 2s
to power o.
ZING C15E, ZING C20
ZING C8, ZING C10
Turbo modeModel
Indicator
Ambient light (for ZING C10, C15E and C20 only)
blink slowly, with 2 beeps
blue pulsing red pulsingfull-colour pulsing
blink fast, with 3 beepssolid, with 1 beep
Max. speed
ZING C8
ZING C10
10 mph (16 km/h)
10 mph (16 km/h) 6.2 mph (10 km/h)10 mph (16 km/h)
ZING C15E/C20 10 mph (16 km/h) 6.2 mph (10 km/h)10 mph (16 km/h)
6.2 mph (10 km/h)10 mph (16 km/h)
Cruise mode Safe mode
1
Flip the quick-release clamp
to the closed position to
secure the stem.
2
Align the positioning groove
with the positioning screw,
then slide the screw into the
groove and insert the stem
to the bottom.
1
2
Appendix: Folding clamp
Open: Push and hold the
safety clamp to the top and
then open the folding clamp.
Lock: Lock the folding clamp
until the safety clamp
reaches the returning mark.
NOTE: If the stem is shaky,
you can adjust the knob to
tighten it.
Footboard
Hub motor
Quick-release
clamp
Kickstand
Charging port
Handlebar
Quick-release
button
Brake lever
Stem
Indicator
Front fender
Rear fender
Brake
Reflector
Safety clamp
* For ZING C15E and C20 only.
Returning mark
* For ZING C15E and C20 only.
Folding clamp
* For ZING C15E and C20 only.
Accessories
Battery charger
5 mm Allen wrench
* For ZING C15E and C20 only.
CLICK
Press the quick-release button
and insert the stem into the
front fork. The button will pop
out automatically.
Throttle
Bell
* For ZING C15E and C20 only.
Power button
Folding clasp
* For ZING C15E and C20 only.
Ambient light
* For ZING C10, C15E and C20 only.
Make sure the folding clamp
is closed when installing.
Tighten the two screws
alternately several times.
3
Positioning groove
Folding clamp
Positioning screw
Battery indication
The color of the indicator shows the battery level: ≥ 10% white, < 10% red.
* When an abnormality occurs, the indicator will flash and an alarm will start beeping.
Once tightened, attempt to
wiggle the handlebar to
ensure it is safely secured.
Buckle
* For ZING C15E and
C20 only.
Folding clamp
Safety clamp
Returning mark
