Nintendo Entertainment System CONTROL DECK - Page 9

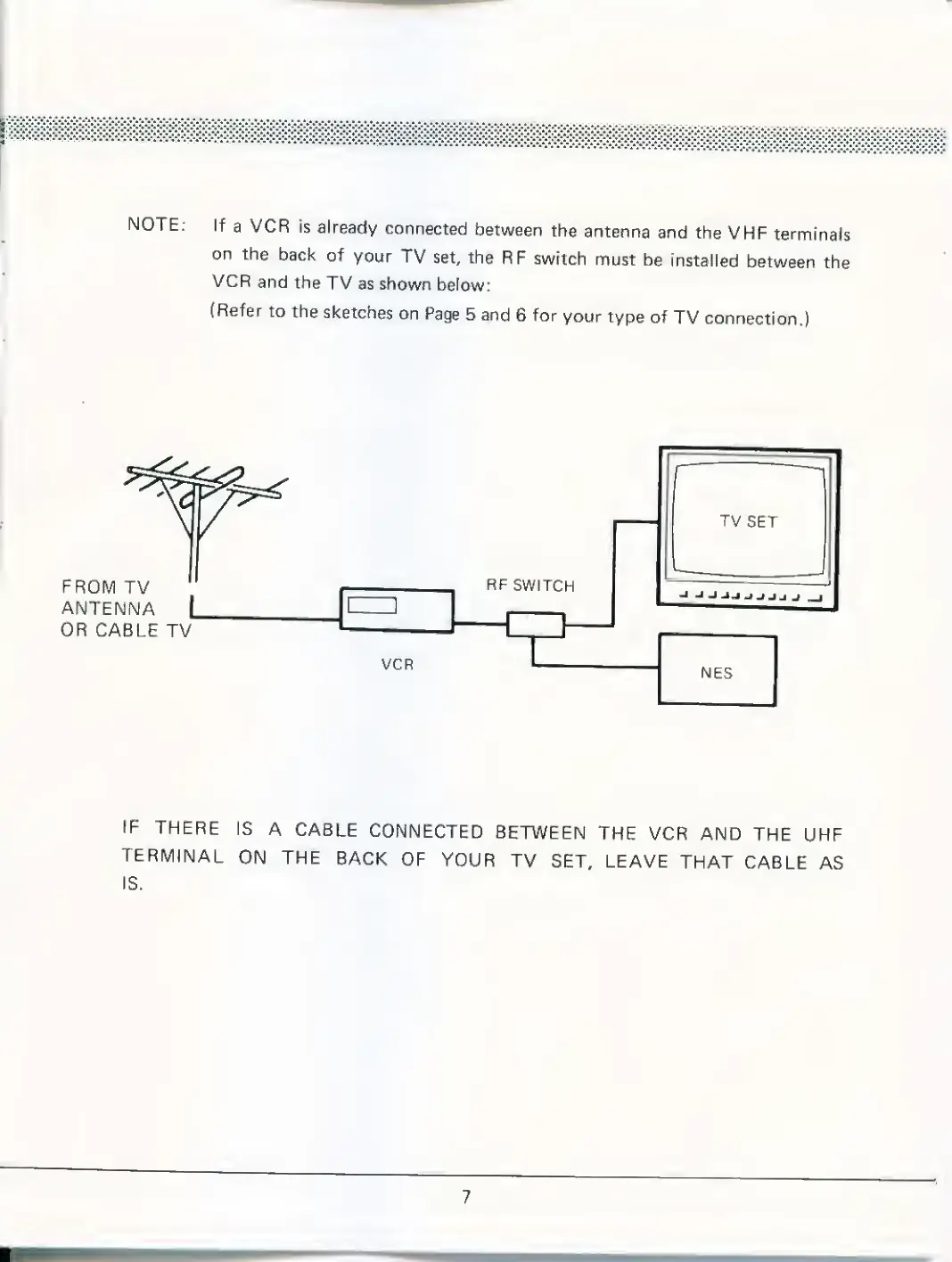

NOTE:
If
a VCR
is already
connected
between
the
antenna
and the
VHF
terminals
on the
back
of
your
TV
set, the
RF
switch
must
be
installed
between
the
VCR
and
the
TV as
shown
below:
{Refer
to
the
sketches
on
Page
5
and
6
for
your
type
of
TV
connection.)
FROM
TV
ANTEIMNA
[
OR CABLE
TV
VCR
TV
SET
Jjjjjjjjj
J
_j
NES
IF
THERE
IS
A CABLE
CONNECTED
BETWEEN
THE
VCR AND
THE
UHF
TERMINAL
ON THE
BACK
OF
YOUR
TV SET, LEAVE
THAT CABLE
AS
IS.
