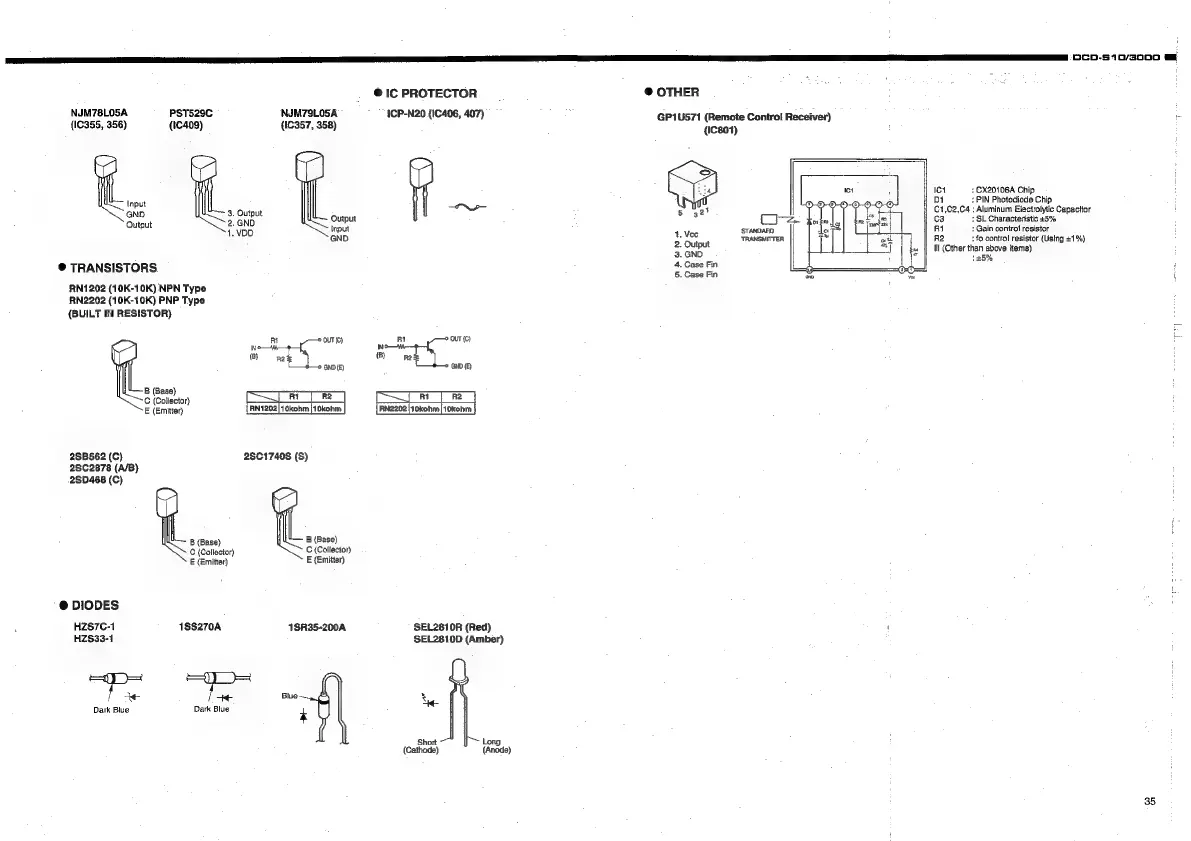

NJM78LO05A
(IC355, 356)
Input
GND
Output
@ TRANSISTORS.
PST529C
(tC409)
3. Output
2. GND
1. VDD
@ IC PROTECTOR
NJM79L0S5A ICP-N20 {IC406, 407)
(IC357, 358)
GND
Ns
Output
Input
@ OTHER
GP1U571 (Remote Control Receiver)
{IC801)
2
3
Crz
STANDARD:
1, Veo
TRANSMITTER
2. Output
3. GND
4, Case Fin
5. Case Fin
RN1202 (10K-10K) NPN Type
RN2202 (10K-10K) PNP Type
(BUILT IN RESISTOR)
AI our (c)
N
® Re
GINO (E)
B (Base)
C (Collector) ee f——~[ Rt] R2 |
E (Emitter) {)AN1202]10kohm|10kohm | {FRN2202{10kohm|10kohm |
2SB562 (C) 2SC1740S (S)
2SC2878 (A/B)
2SD468 (C)
B (Base) B (Base)
C (Collector) C (Collector)
E (Emitter) E (Emitter)
@ DIODES
HzZS7C-1 18S270A 1SR35-200A SEL2810R (Red)
HZS33-1 SEL2810D (Amber)
ae te me x
Dark Blue Dark Blue k ra
Short Long
(Cathode) (Anode)
IC1 : CX20106A Chip
DI : PIN Photodiode Chip
C1,C2,C4 : Aluminum Electrolytic Capacitor
C3 : SL Characteristic 45%
R1 : Gain contro! resistor
R2 : fo control resistor (Using +1%)
R (Other than above items)
125%
OCD-s10/s000 a
35
