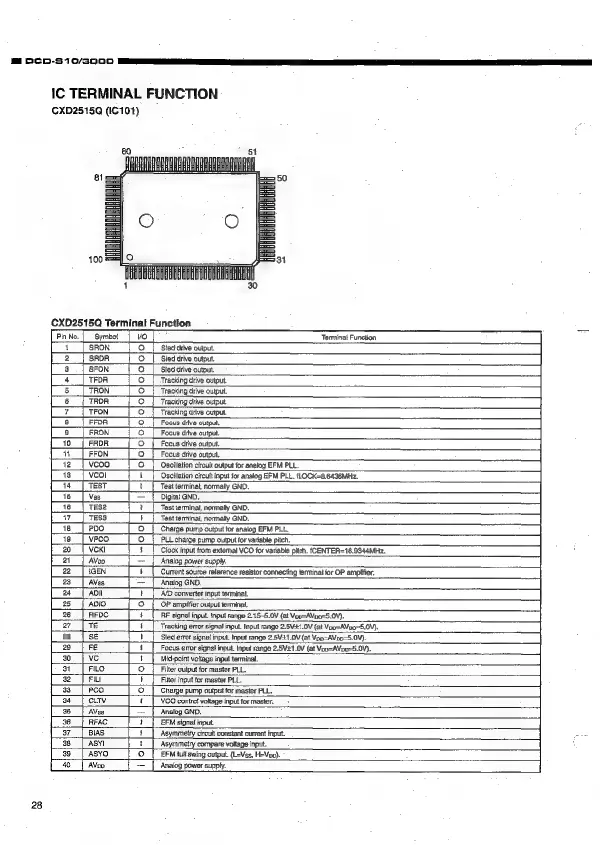

IC TERMINAL FUNCTION
CXD2515Q (10101)
CXD2515Q Terminal Function
PinNo. | _Symbot_ | vO Terminal! Function
1 | SRON © _| Sled drive output.
2 | SROR ‘© _| Sted drive output,
a. | SFON _| Sled drive output.
4__| TFOR © | Tracking drive output.
5 | TRON © | Tracking drive output.
6__| TROR ©] Tracking drive output.
7 | TFON O_| Tracking drive output.
8 |_FFDR © _| Focus drive output.
9 | _FRON © | Focus drive output.
{| i0 | [0 | Focus dive output
[a | Fron 9
12
73 | vcor 1 | Oscillation circuit input for analog EFM PLL. fOCK=8.6436MHz.
14 | TEST U_[_Test terminal, normally GND.
15_| Vas —"T Digitat GND,
16__| TeS2 1” [Test terminal, normally GND.
17__| Tess 1_| Test terminal, normally GND.
18__| PbO © | Charge pump output tor analog EFM PLL.
19 | vPcO ©_{ PLL charge pump output for variable pitch.
20 | VCKI 4 [Clock input from external VCO for variable pitch. [CENTER=16.9344MHz.
21 | Avo =| Analog power supply.
22 | GEN 1 | Current source reterence resistor connecting terminal for OP amplifier,
23 | Aves =| Analog GND.
24 [ADI 1 [AID converter input terminal,
25 | ADIO O_|_ OP ampiifier output terminal,
26 | RFOC 4 (RF signal input. input range 2.15-5.0V (at Voo=AVo=5.0V).
a7_ [Te 1] Tracking error signal input. Input range 2.5V#1.0V (at Voo=AVon=5.0V).
23 [se T_| Sted error signal input. Input range 2.5V37.0V (at Voo=AVo-5.0V).
29 | FE 1 [Focus error signal input. Input range 2.5V1 OV (at Voo=AVo0=5.0V),
30 | ve 1_|_ Mid-paint voltage input terminal.
at [| FLO O_{ Filter oulput for master PLL,
32) FIL |_| Fiter input for master PLL.
33__| PCO © [Charge pump output for master PLL.
a4 | OLIV t [WO contro! vottage input for master.
35 | Ass —_| Analog GND,
36__| RFAC 1 [_EFM signal input.
37__| BIAS 1 [Asymmetry circuit constant current input. | -
38 ASYI 1 Asymmetry compare voltage input. 4
39 | ASYO © _|_ EFM tull swing output (L=Vss, H=Voo).
40_| Avon —_|/ Analog power supply.
28
