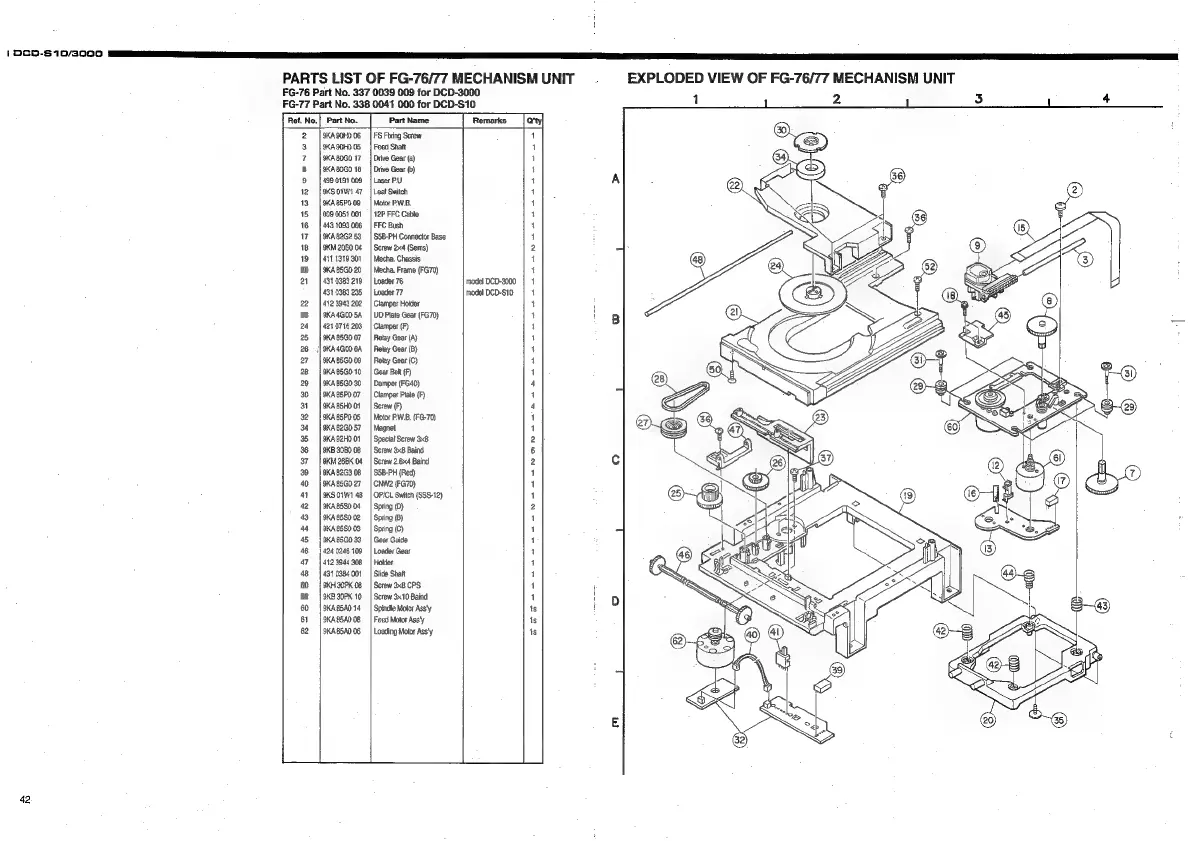

PARTS LIST OF FG-76/77 MECHANISM UNIT. EXPLODED VIEW OF FG-76/77 MECHANISM UNIT
FG-76 Part No. 337 0039 009 for DCD-3000
FG-77 Part No. 338 0041 000 for DCD-S10 1 2 3 4
Ref. No.} Part No. Part Name Remarks
2 SKAQ0HO 06 | FS Fixing Screw
3 9KA90HO 05 | Feed Shaft
7 9KA80GO0 17 | Drive Gear (a)
8 |9KAB0GO 18 | Drive Gear (b)
9 4990191009 | Laser P.U
12 | 9KSO1W1 47 | Leaf Switch
13 | 9KA85P009 | Motor PW.B.
15 | 0090051001 | 12P FFC Cable
16 | 443 1093006 | FFC Bush
17 |9KA82G253 | S5B-PH Connector Base
18 |9KM208008 | Screw 2x4 (Sems)
19 4111319301 | Mecha. Chassis
20 | 9KA85G020 | Mecha. Frame (FG70}
21 |431.0383 219 | Loader 76 model DCD-3000
431 0383 235 | Loader 77 model DCD-S10
22 —|412 3943 202 | Clamper Holder
23° | 9KA4GOO5A | UD Piate Gear (FG70)
24 |4210716203 | Clamper (F)
25 | 9KA85G007 | Relay Gear (A)
26 © 9KA4GO06A | Relay Gear (B)
27 | 9KAB5G009 | Relay Gear (C)
28 ©|9KA85G010 | Gear Belt (F)
29 | 9KA85G030 | Damper (FG40)
30 | 9KA85P007 | Clamper Plate (F)
31 | 9KAB5HOO! | Sorew (F)
32 | 9KASSPO05 | Motor P\W.B. (FG-70)
34 | 9KA82G057 | Magnet
35 | 9KA92HO01 | Special Screw 3x8
36 | 9KB 308008 | Screw 3x8 Baind
37 | 9KM 26BK 04 | Screw 2.6x4 Baind
39 | 9KA82G308 | S5B-PH (Red)
40 | 9KA85G027 | CNW2(FG70)
41 | 9KSO1W1 48 | OPICL Switch (SSS-12)
42 | 9KA85S004 | Spring (D)
43 | 9KA85S002 | Spring (B)
44 | 9KA85S003 | Spring (C)
45 | 9KA85G033 | Gear Guide
46 | 4240246 109 | Loader Gear
47 44123844308 | Holder
48 | 4310384001 | Slide Shaft
50 | 9KH30PK 08 | Screw 3x8 CPS
52 | 9KB30PK 10 | Screw 3x10 Baind
60 | SKA85A0 14 | Spindle Motor Ass'y
61 SKA 854008 | Feed Motor Ass'y
62 =| SKA85A006 | Loading Motor Ass'y
