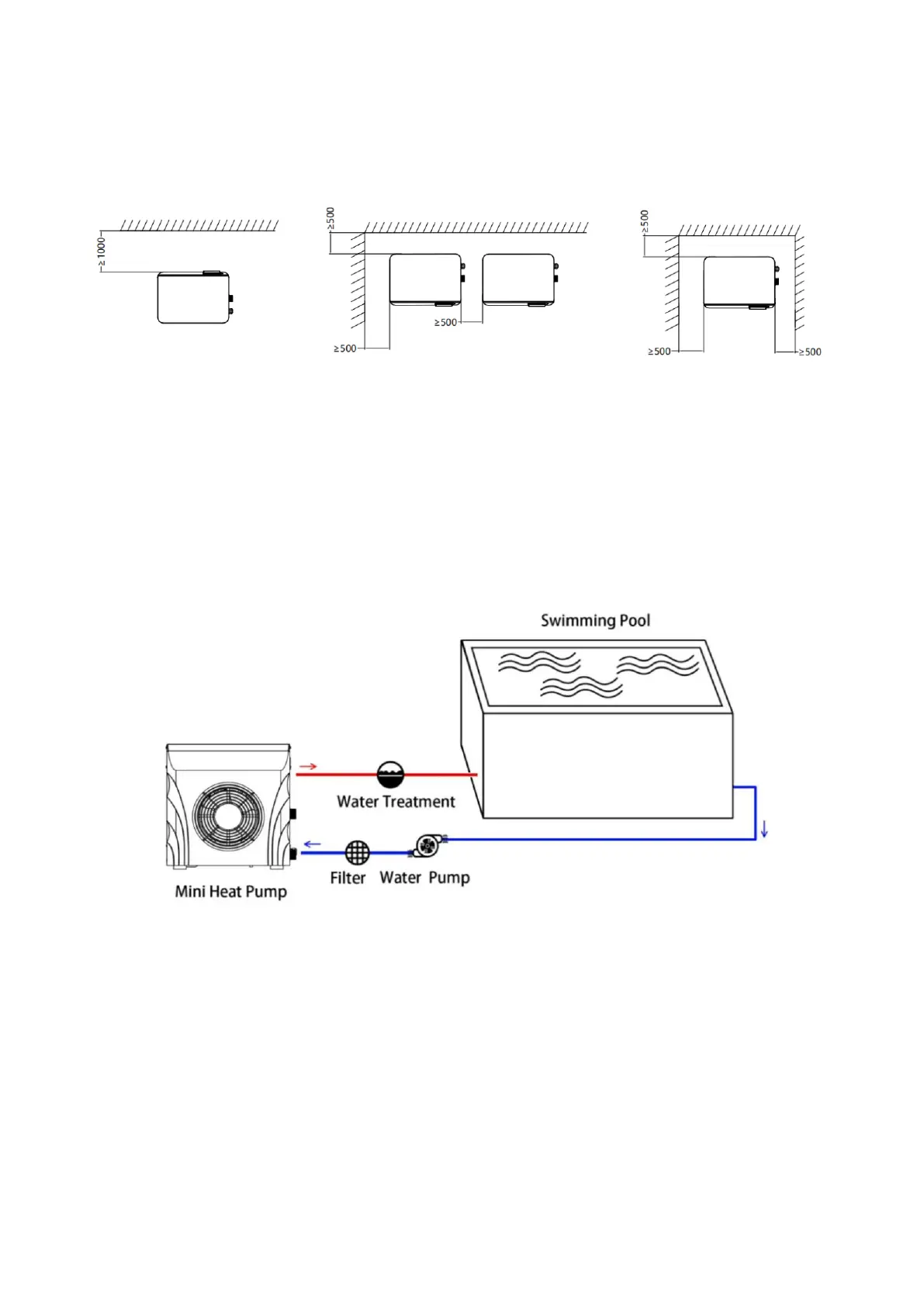

Unit: mm
Anything could not be placed within at least 1m in front of heat pump.
Leave at least 500mm of empty space around the sides and rear of heat pump.
Do not put any stuff on or in front of heat pump!
3. Installation Layout
* The installation diagram is for reference only, please refer to the actual installation situation.
4. Electrical Connection
To function safely and maintain the integrity of your electrical system, the unit must be connected to
your electrical supply in accordance with the following regulations:
① The heat pump must be connected to a suitable circuit breaker in accordance with current
