Nirvana NE55 - Installation Instructions

6

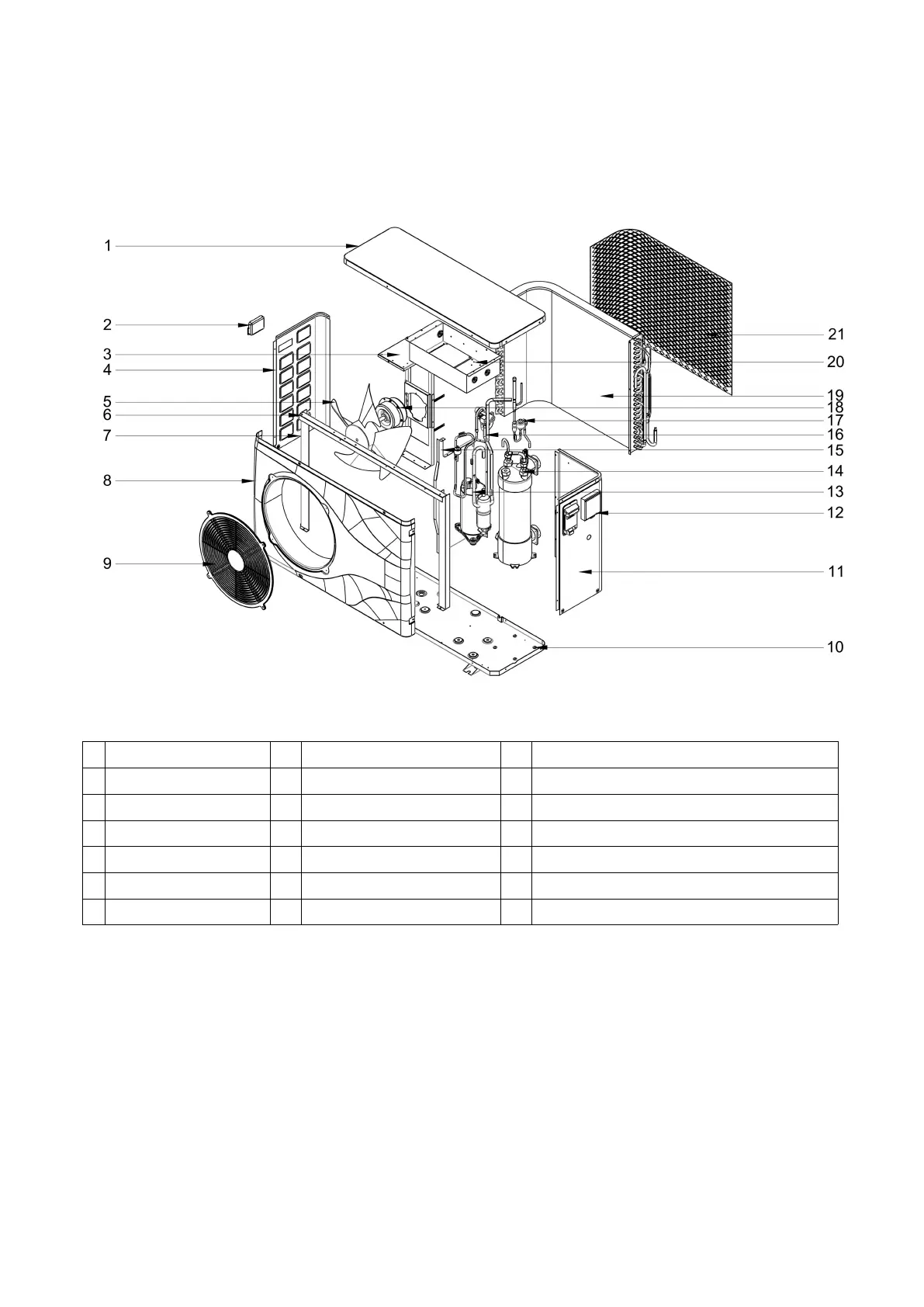

3. Explosion View
1
Top cover
8
Front plate
15
Middle plate
2
Left handle
9
Fan motor cover
16
Pipe component
3
Motor support
10
Chassis
17
EEV
4
Left plate
11
Right plate
18
Fan motor
5
Fan blade
12
Wire controller
19
High efficiency finned heat exchanger
6
Fixed plate 1
13
Compressor
20
Electrical box
7
Fixed plate 2
14
Titanium heat exchanger
21
Back net
