WATER PUMP
CO-17
C
D
E
F
G
H
I
J
K
L
M
A
CO
Revision: October 2006 2006 Maxima

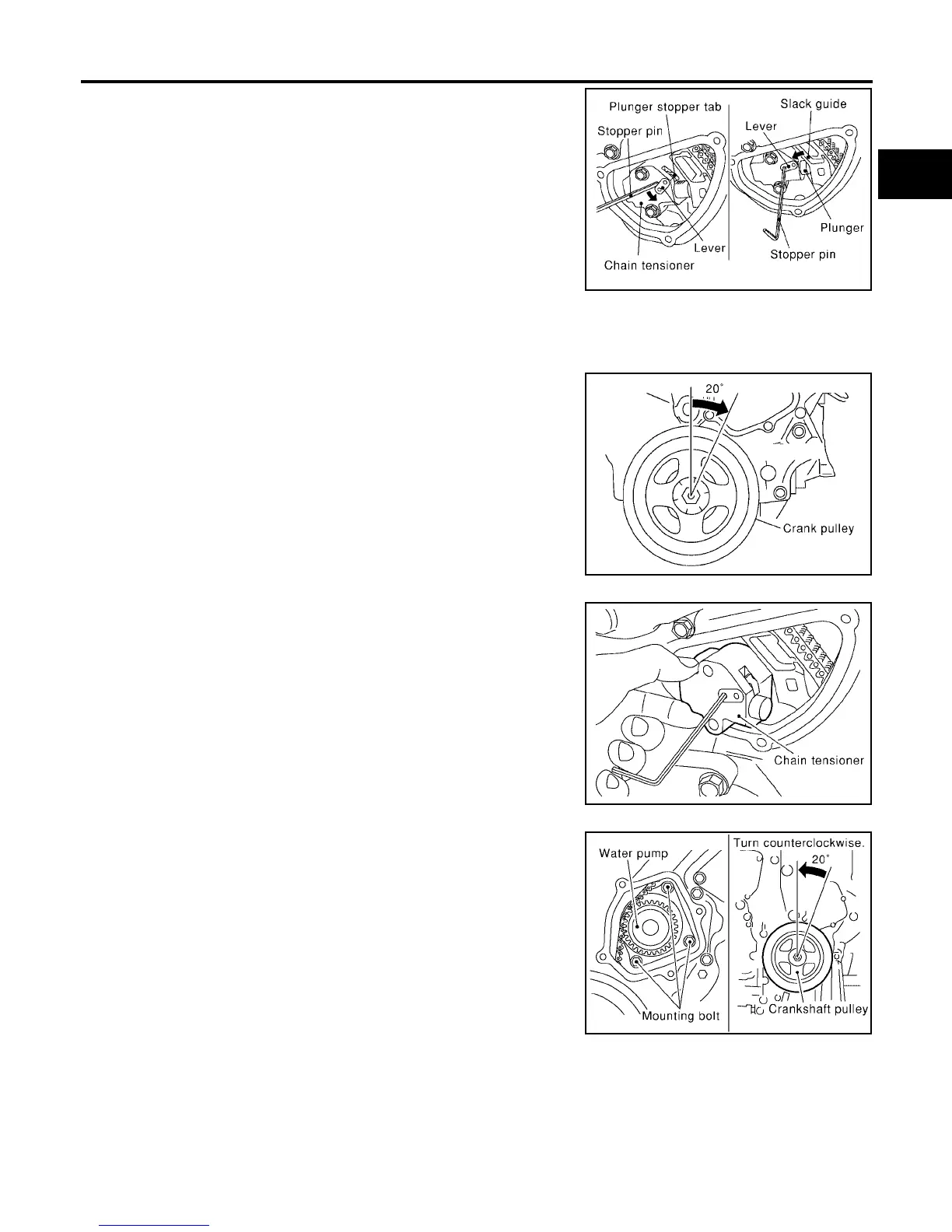

b. Insert the stopper pin into the tensioner body hole to hold the
lever and keep the stopper tab released.
NOTE:
An allen wrench [(2.5 mm (0.98 in)] is used for a stopper pin as
an example.
c. Insert the plunger into the tensioner body by pressing the timing chain slack guide.
d. Keep the slack guide pressed and hold the plunger in by pushing the stopper pin deeper through the lever
and into the tensioner body hole
e. Make a gap between water pump gear and timing chain, by turn-
ing the crankshaft pulley approximately 20° clockwise.
11. Remove timing chain tensioner.
CAUTION:
Be careful not to drop bolts inside chain case.
12. Remove the three water pump bolts. Make a gap between water
pump gear and timing chain, by turning crankshaft pulley coun-
terclockwise until timing chain loosens on water pump sprocket.
SLC444B
PBIC0848E
PBIC0849E
PBIC0850E
