WATER OUTLET AND WATER PIPING PFP:11060
Removal and Installation EBS00RDH
REMOVAL
1. Drain coolant from drain plugs on radiator and both sides of cylinder block. Refer to CO-10, "DRAINING
ENGINE COOLANT" .
CAUTION:
Perform when the engine is cold.
WBIA0720E

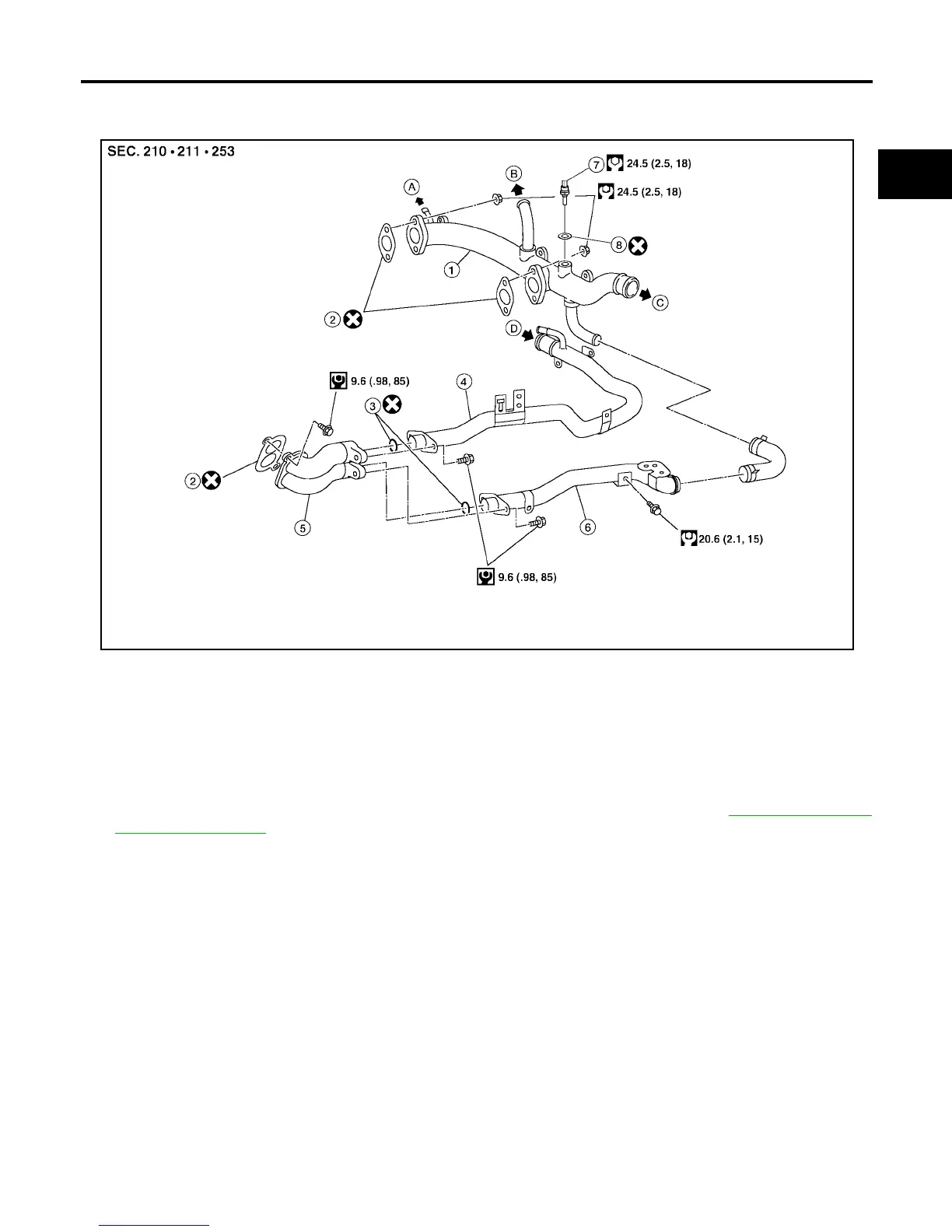

1. Water outlet 2. Gasket 3. O-ring
4. Heater pipe 5. Water connector 6. Water bypass pipe
7. Engine coolant temperature sensor 8. Washer A. To electric throttle control actuator
B. To heater C. To radiator D.
From heater or transmission oil
cooler (if equipped)
