When the normal charge connector lock is
unlocked
All of the indicator lights,
䊊
1
to
䊊
3
, will flash and
a beep will sound three times when the normal
charge connector lock switch on the Intelligent
Key or the charge port lid opener switch is
pushed.
When the normal charge connector is con-
nected incorrectly
All of the indicator lights,
䊊
1
to
䊊
3
, will flash and
a beep will sound three times within 30 seconds
when the charge connector is connected incor-
rectly to the normal charge port.

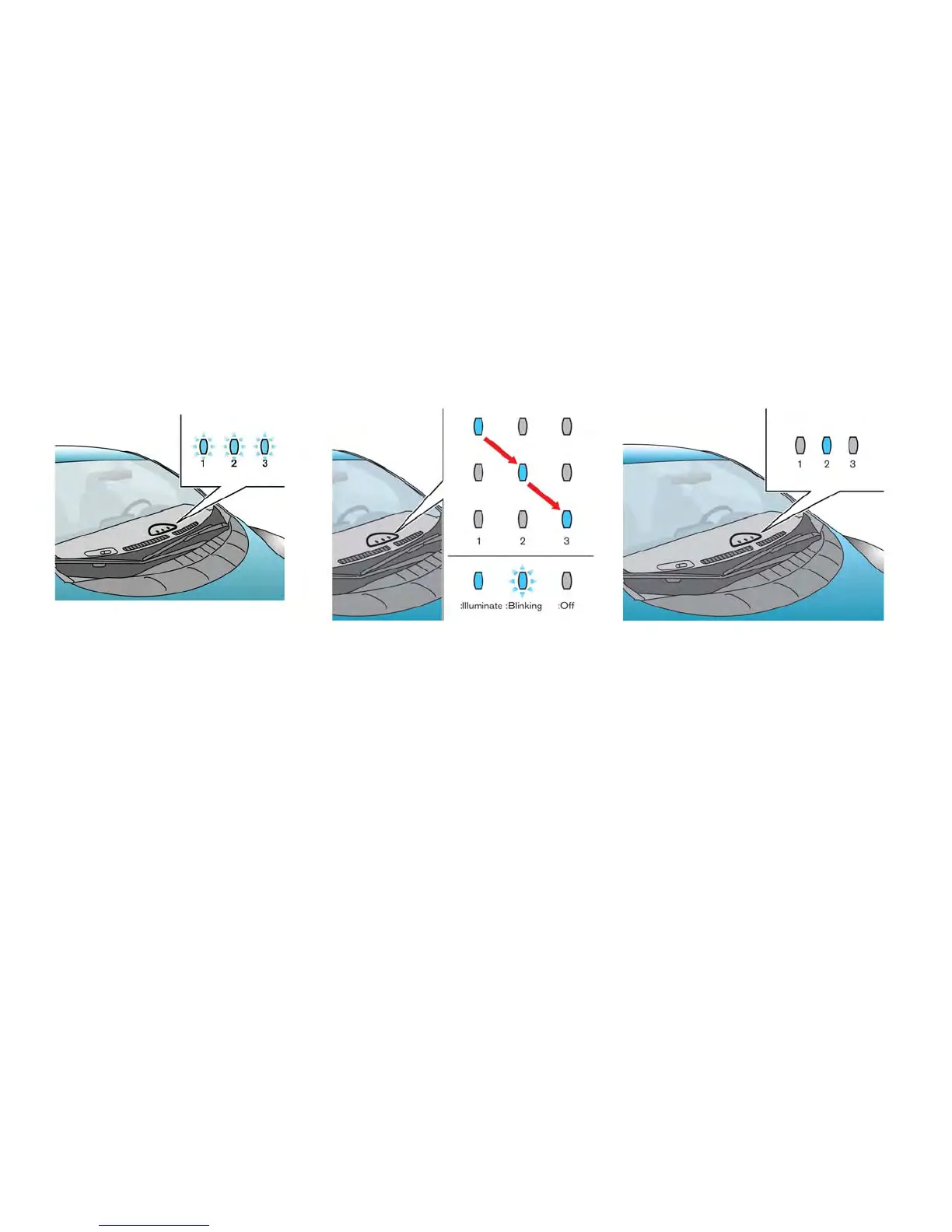

Ready for charging timer
If the charging timer is set, the indicator lights
illuminate in order from
䊊
1
to
䊊
3
. The indicator
lights turn off after approximately 5 minutes.
Ready for immediate charge
When the power switch is off and if the immedi-
ate charge switch is pressed while the charge
cable is not connected, the indicator light
䊊
2
illuminates.
This indicator light
䊊
2
illuminates when the ve-
hicle is ready for immediate charge. You have 15
minutes to connect the charge connector to the
vehicle. If the charge connector is not connected
within 15 minutes, the indicator light
䊊
2
turns off
and you must start the immediate charge mode
again to charge the Li-ion battery.
