EM-14
< PERIODIC MAINTENANCE >
[VQ40DE]
DRIVE BELTS

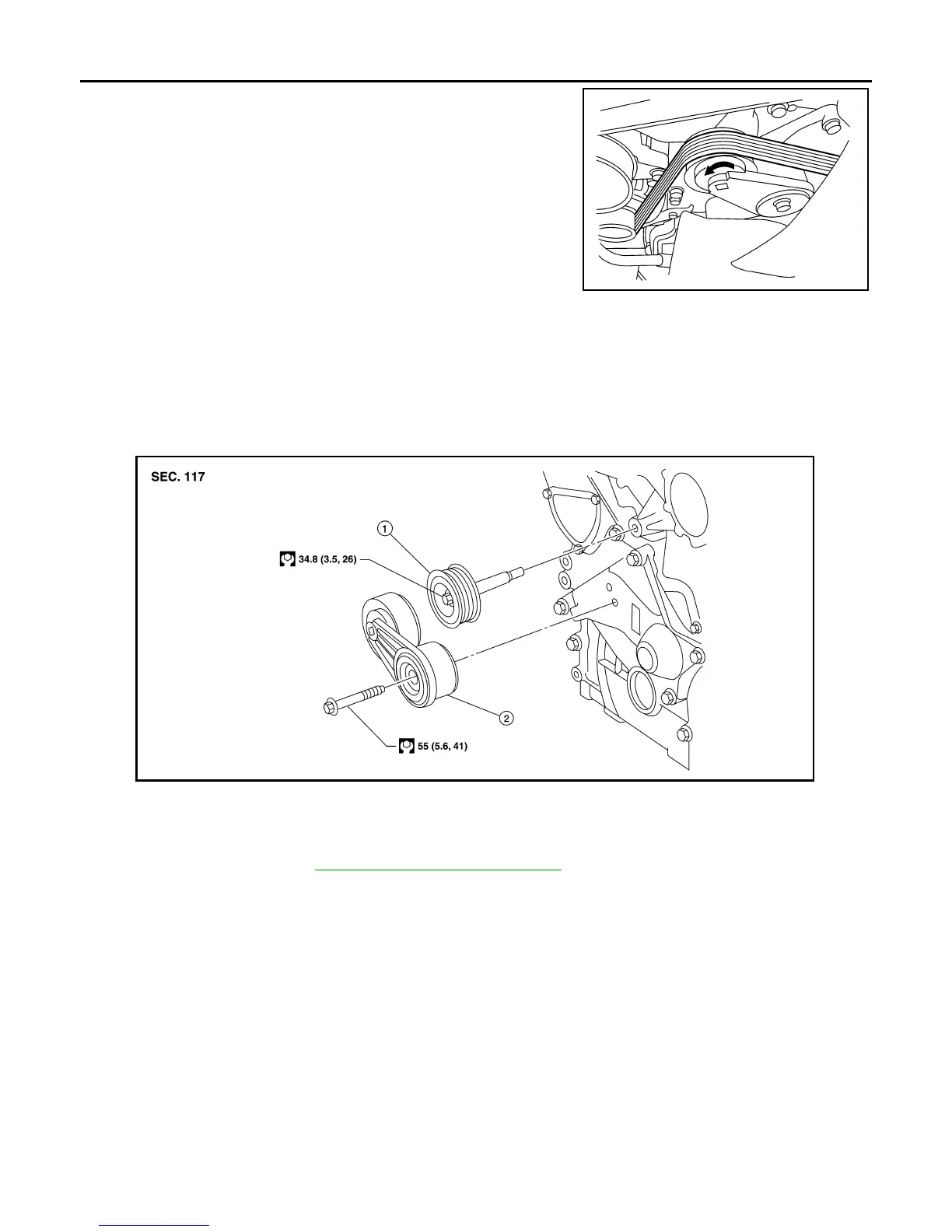

2. Rotate the drive belt auto-tensioner in the direction of arrow
(loosening direction of tensioner) as shown, using suitable tool.
WARNING:
Avoid placing hand in a location where pinching may occur
if the tool accidentally comes off.
3. Remove the drive belt.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Make sure belt is securely installed around all pulleys.
Drive Belt Auto-Tensioner and Idler Pulley INFOID:0000000008798955
REMOVAL
1. Remove drive belt. Refer to EM-13, "Removal and Installation".
2. Remove drive belt auto-tensioner and idler pulley.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
If there is damage greater than peeled paint, replace drive belt auto-tensioner.
LBIA0428E
1. Idler pulley 2. Drive belt auto-tensioner
AWBIA0861GB
Revision: January 2013 2013 Xterra
