AIR CLEANER FILTER
Exploded View INFOID:0000000008798956
Removal and Installation INFOID:0000000008798957
REMOVAL
1. Remove the engine room cover (if equipped).
2. Disconnect air duct and resonator from the air cleaner case (upper).
3. Disconnect mass air flow sensor.
4. Unhook clips, and lift air cleaner case (upper).
5. Remove air cleaner filter.
INSTALLATION
Installation is in the reverse order of removal.

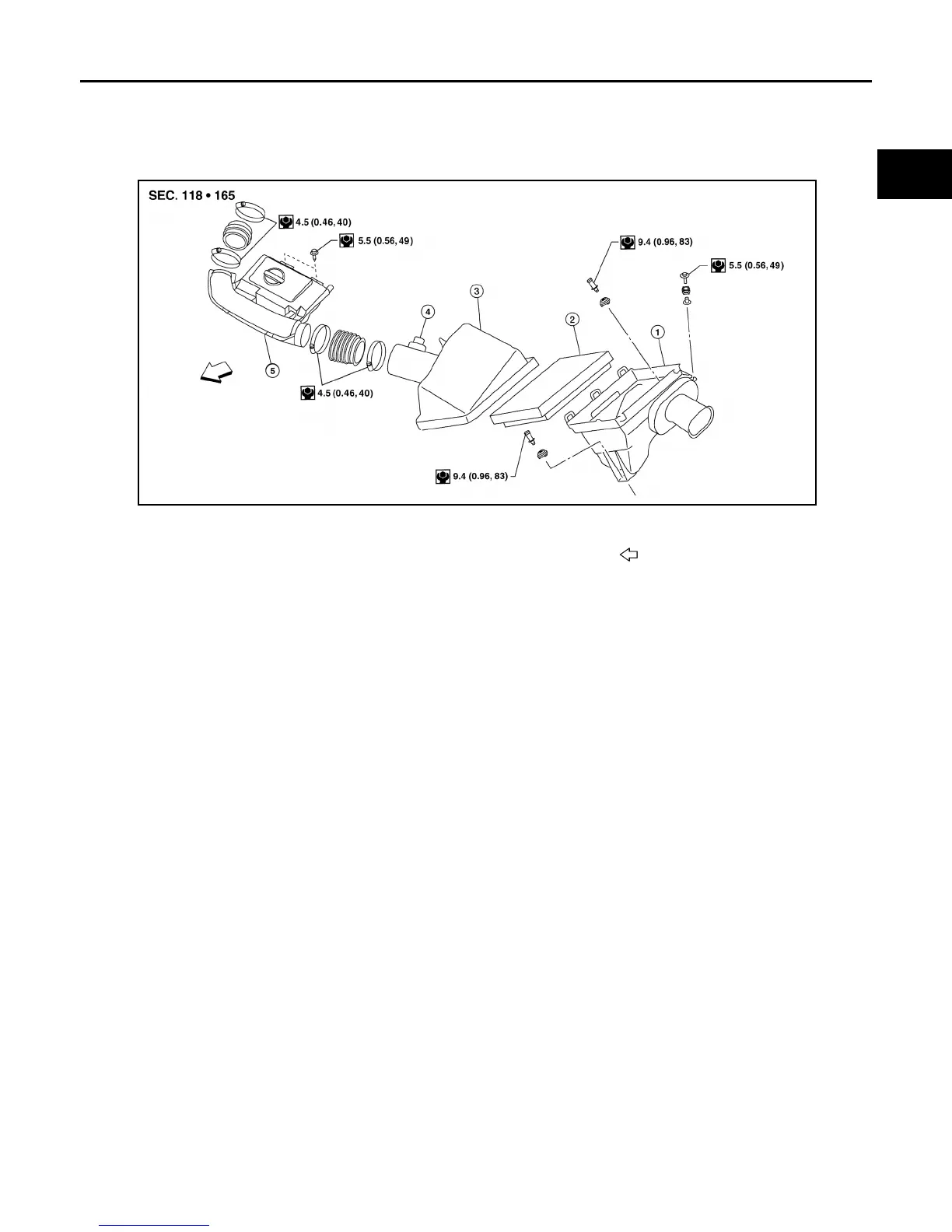

1. Air cleaner case (lower) 2. Air cleaner filter 3. Air cleaner case (upper)
4. Mass air flow sensor 5. Air duct and resonator
Front
AWBIA1521ZZ
