FRONT TIMING CHAIN CASE
EM-53
< REMOVAL AND INSTALLATION >
[VQ40DE]
C
D
E
F
G
H
I
J
K
L
M
A
EM
N
P
O

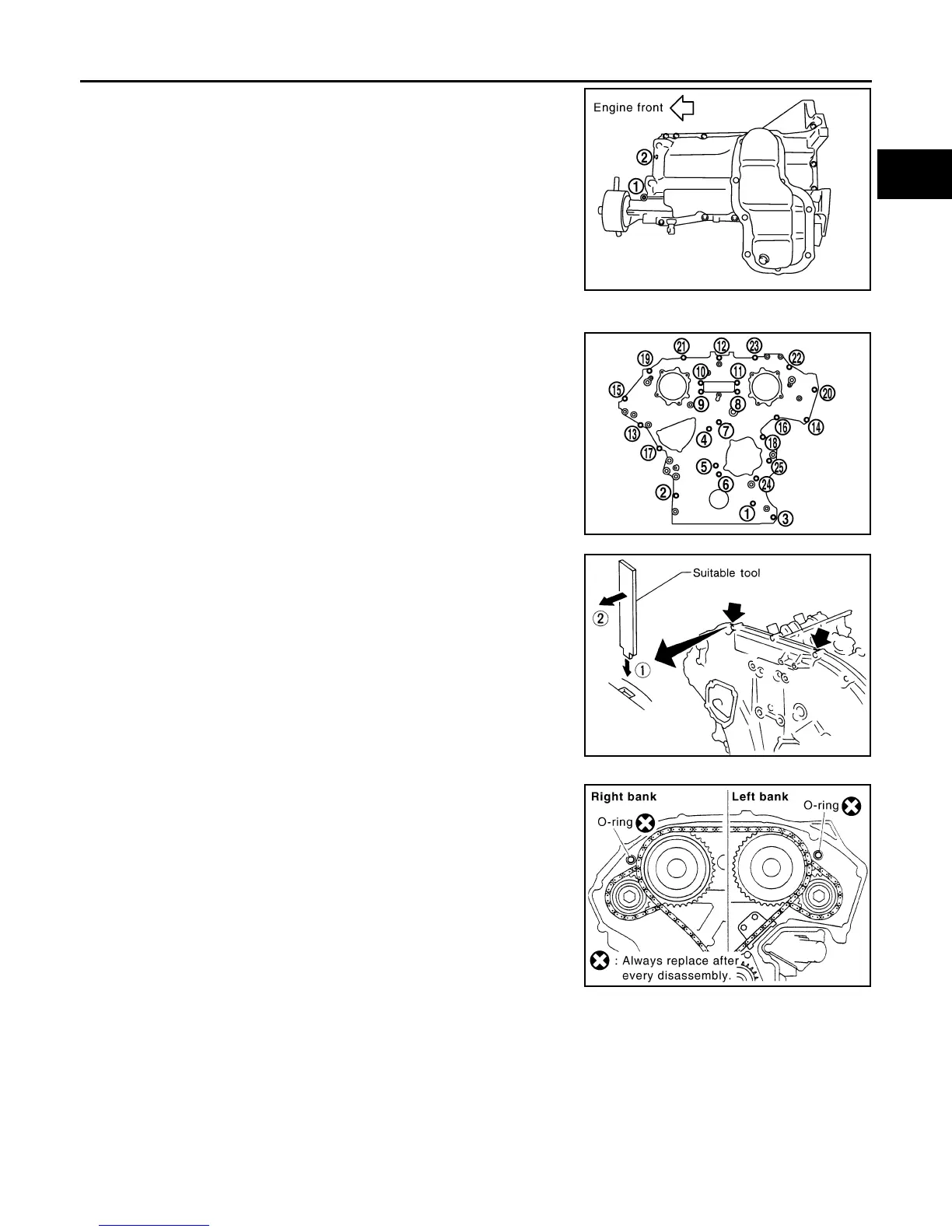

18. Loosen two bolts in front of oil pan (upper) in reverse order as
shown.
19. Remove front timing chain case as follows:
a. Loosen bolts with power tool in reverse order as shown.
b. Insert suitable tool into the notch at the top of the front timing
chain case as shown (1).
c. Pry off case by moving tool as shown (2).
• Cut liquid gasket for removal using Tool.
CAUTION:
• Do not use screwdriver or something similar.
• After removal, handle front timing chain case carefully so
it does not twist, bend, or warp under a load.
• Do not damage the mating surface.
20. Remove O-rings from rear timing chain case.
CAUTION:
Do not reuse O-rings.
21. If necessary, remove water pump cover and chain tensioner cover from front timing chain case.
• Cut liquid gasket for removal using Tool.
CAUTION:
Do not damage the mating surfaces.
PBIC2907E
PBIC2908E
Tool number : KV10111100 (J-37228)
SEM156F
PBIC2548E
Tool number : KV10111100 (J-37228)
Revision: January 2013 2013 Xterra
