Nissan ENGINE - Timing Chain Service

TIMING CHAIN
EM-59
< REMOVAL AND INSTALLATION >
[VQ40DE]
C
D
E
F
G
H
I
J
K
L
M
A
EM
N
P
O
TIMING CHAIN

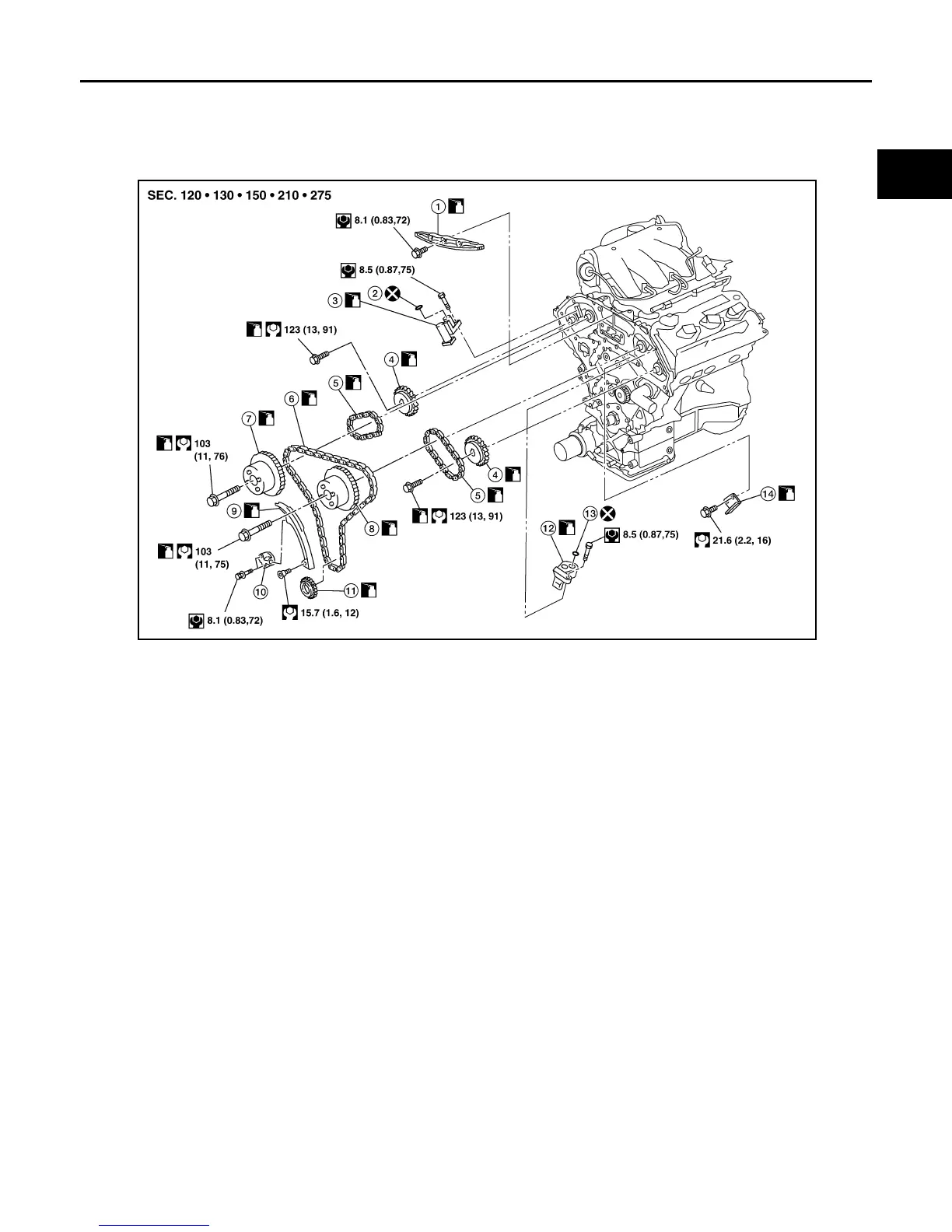

Exploded View INFOID:0000000008798983
Removal and Installation INFOID:0000000008798984
CAUTION:
• After removing timing chains, do not turn the crankshaft and camshaft separately, or the valves will
strike the pistons.
• When installing camshafts, chain tensioners, oil seals, or other sliding parts, lubricate contacting
surfaces with new engine oil.
• Apply new engine oil to bolt threads and seat surfaces when installing camshaft sprockets, camshaft
brackets, and crankshaft pulley.
NOTE:
It is not necessary to remove the rocker covers or intake manifold collector to remove or install the timing
chain(s).
REMOVAL
AWBIA0859GB
1. Internal chain guide 2. O-ring 3. Timing chain tensioner (secondary) (RH)
4. Camshaft sprocket (EXH) 5. Timing chain (secondary) 6. Timing chain (primary)
7. Camshaft sprocket RH (INT) 8. Camshaft sprocket LH (INT) 9. Slack guide
10. Timing chain tensioner (primary) 11. Crankshaft sprocket 12. Timing chain tensioner (secondary) (LH)
13. O-ring 14. Tension guide
Revision: January 2013 2013 Xterra
